6
ENGLISH
Heat Pump Model
OFF
Press OFF button to stop
the swinging of the louver
at the desired airflow
direction.
Swing up/down
Automatically
Swing up/down
Automatically
HEAT Operation
AUTO
COOL / DRY Operation
AUTO
Swing up/down
Automatically
● Operation Details
COOL – Cooling Operation
• To set the room temperature at your preference
cooling comfort.
AUTO – Automatic Operation
• Sense indoor temperature to select the optimum
mode.
• Temperature is not displayed on the remote control
during AUTO operation.
DRY – Soft Dry Operation
• A very gentle Cooling Operation, prior to
dehumidification. It does not lower the room
temperature.
• During Soft Dry operation, the indoor fan operates at
Low fan speed.
HEAT – Heating Operation
(for Heat Pump Model only)
• Heat is obtained from outdoor air to warm up the
room. When the outdoor ambient air temperature
falls, the heating capacity of the unit might be
reduced.
• Defrosting Operation
Depend on the outdoor temperature, the operation
occasionally stops to melt the frost on the outdoor
unit.
FAN – Air Circulation Operation
(for Cooling Model only)
• When the room temperature reaches the set
temperature, operation commences at Low airflow
volume. It stops when the room temperature drops to
2°C below the set temperature.
(It is useful when using a heater.)

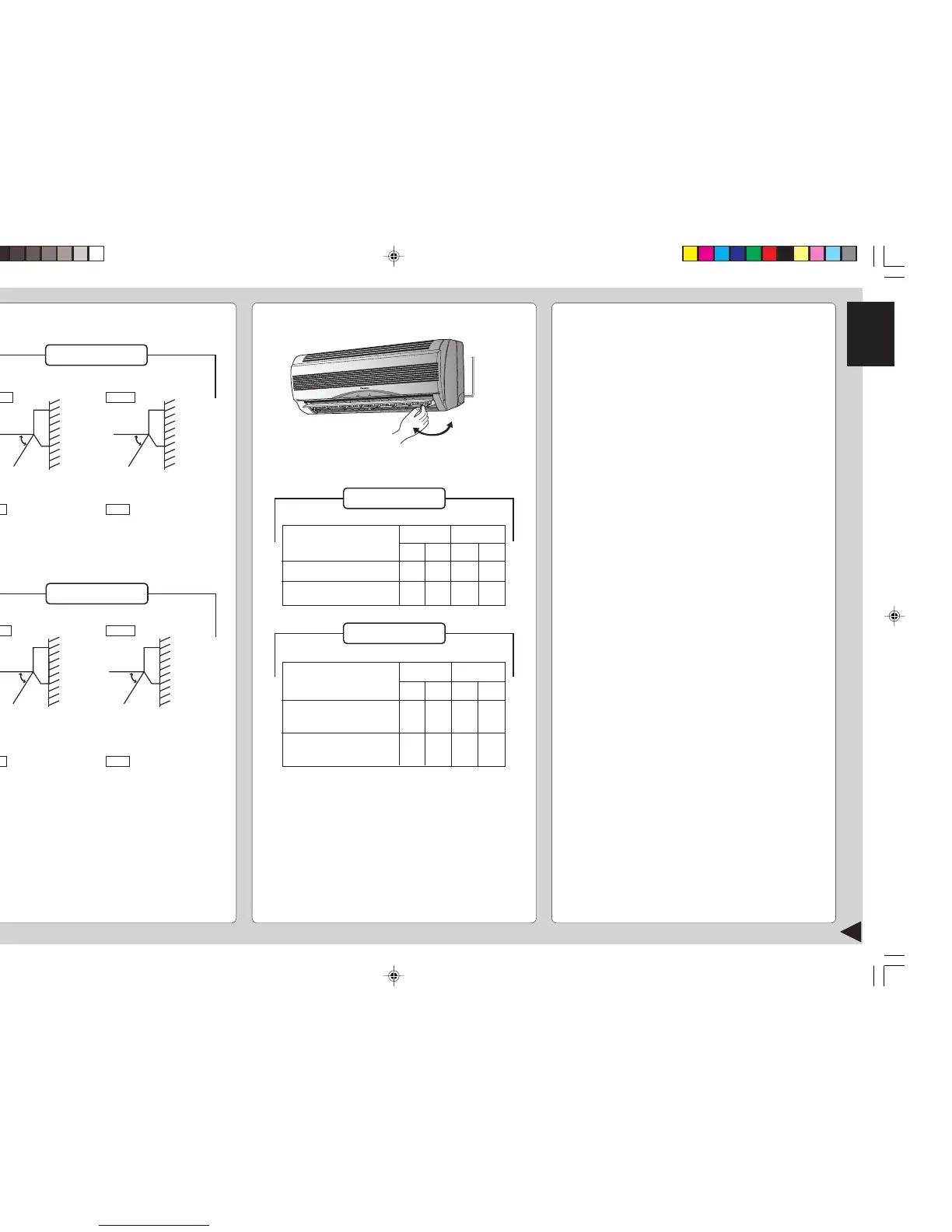

■ Setting the Vertical Airflow Direction
• Press 5 or 6 to select:-
Cooling Model
■ Setting the Horizontal Airflow Direction
● Use this air conditioner under the following
conditions:
Cooling Model
• Adjust it manually
● Notes
• If the unit is not going to be used for an extended
period of time, turn off the main power supply. If it is
left at the ON position, approximately 2.5 W of
electricity will be used even if the indoor unit has been
turned off with the remote control.
• If operation is stopped, then restart immediately, the
unit will resume operation only after 3 minutes.
Heat Pump Model
DBT
32
16
DBT: Dry Bulb Temp
WBT: Wet Bulb Temp
Maximum Temperature-Cooling
(Maximum Temperature-Heating)
Minimum Temperature-Cooling
(Minimum Temperature-Heating)
DBT
32
(30)
16
(16)
WBT
23
(-)
11
(-)
DBT
43
(24)
16
(-5)
WBT
26
(18)
11
(-6)
Indoor
Outdoor
Unit in °C
COOL / DRY Operation
AUTO
FAN Operation
AUTO
DBT: Dry Bulb Temp
WBT: Wet Bulb Temp
Maximum Temperature
Minimum Temperature
WBT
23
11
DBT
43
16
WBT
26
11
Indoor Outdoor
Unit in °C
Swing up/down
Automatically
OFF
Press OFF button to stop
the swinging of the louver
at the desired airflow
direction.
OFF
Press OFF button to stop
the swinging of the louver
at the desired airflow
direction.
OFF
Press OFF button to stop
the swinging of the louver
at the desired airflow
direction.
F564222 01-09-EN 9/12/03, 5:28 PM6
