WARNING
16. Disassembly and Assembly Instructions
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with
repair work. Failure to heed this caution may result in electric shocks.
16.1 CS-S9MK CS-S12MK
16.1.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures
16.1.1.1 To remove front grille

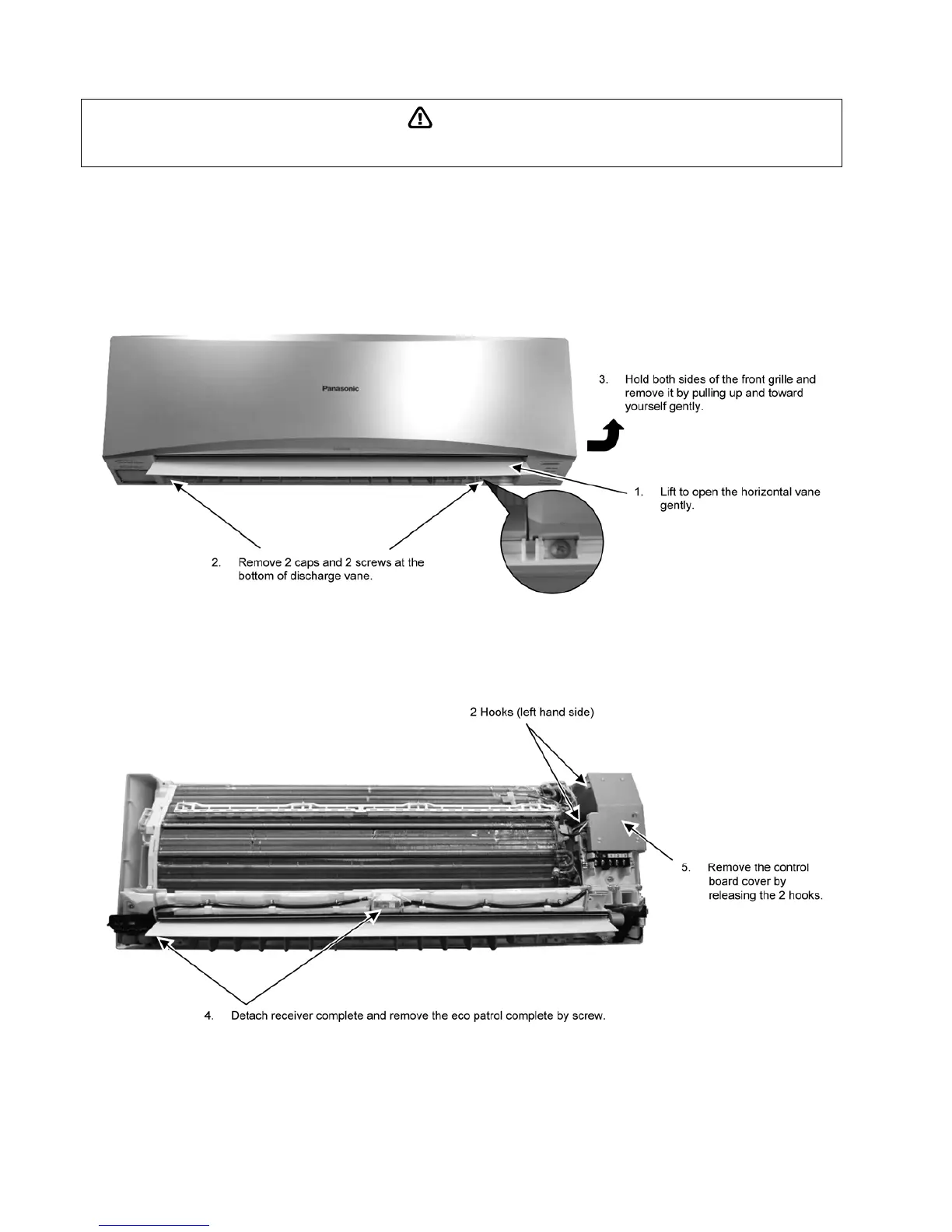

Figure 1
16.1.1.2 To remove power electronic controller
Figure 2
To Next Page
