Panasonic CS-S18MKQ

27

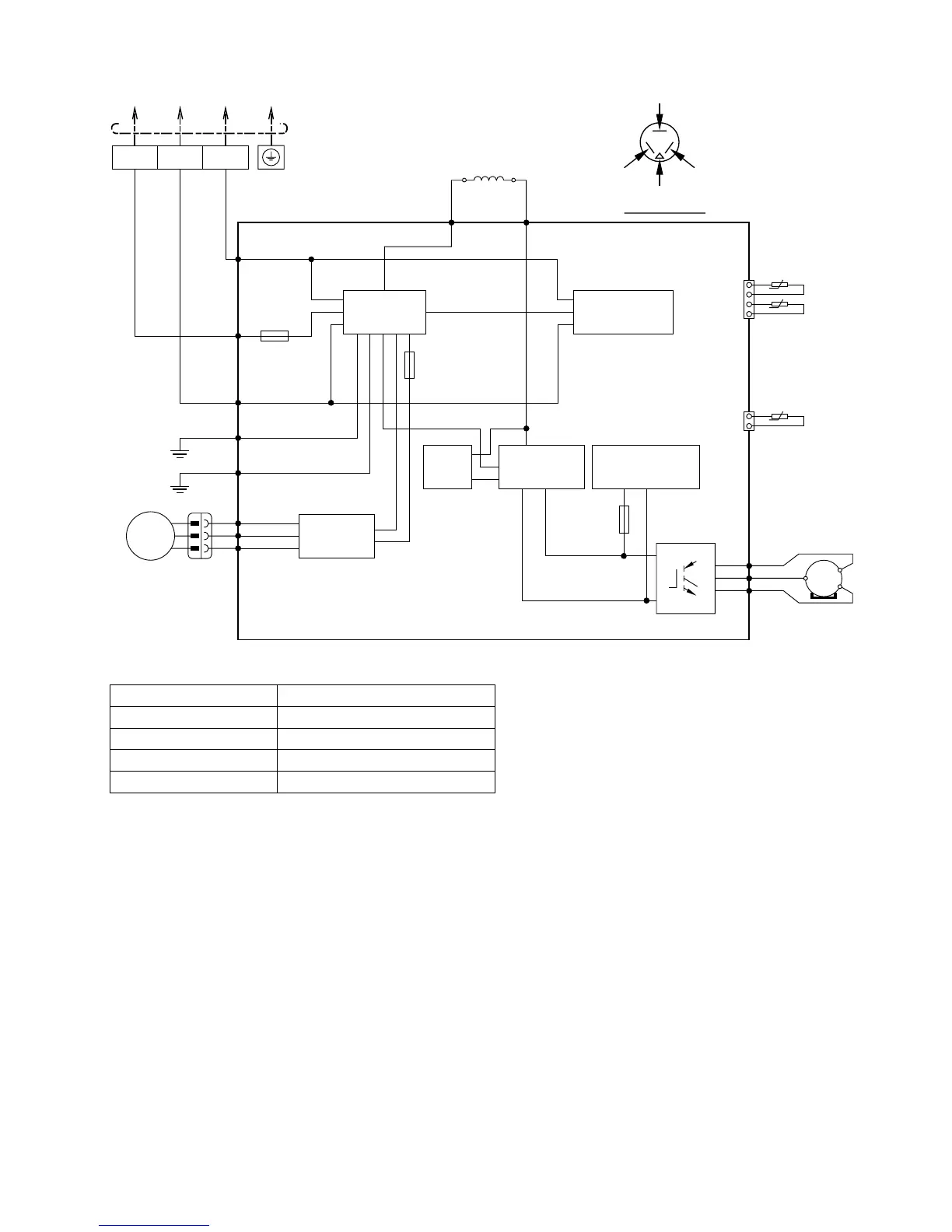

7.2.2 CU-S12MKQ
TERMINAL
BOARD
TO INDOOR UNIT
COMPRESSOR
FAN MOTOR
SENSOR
COMPLETE
OUTDOOR AIR TEMP.
SENSOR (THERMISTOR)
PIPING TEMP.
SENSOR (THERMISTOR)
1
2
3
4
CN-TH
(WHT)
t
0
t
0
AC-WHT
(WHT)
FG1
(GRN)
FG2
(GRN)
GRN
BLK
WHT
GRN
AC-BLK
(BLK)
DATA
(RED)
RED
GRY
RAT2
GRY
RAT1
REACTOR
RED
BLU
YLW
(RED)
FUSE103
T3.15A L250V
(BLU)
(YLW)
U
V
W
COMP. TEMPERATURE
SENSOR (THERMISTOR)
SENSOR
COMPLETE
1
3
CN-TANK
(WHT)
t
0
MS
3 ~
P
N
SWITCHING POWER
SUPPLY CIRCUIT
RECTIFICATION
CIRCUIT
FUSE102
T3.15A L250V
BLU
RED
YLW
FM1 (BLU)
FM2 (RED)
FM3 (YLW)
M
1~
FAN MOTOR
CIRCUIT
FUSE101
(20A 250V)
RED (RED)
TRADE MARK
BLUE (BLU)
YELLOW (YLW)
COMP. TERMINAL
3
(RED)
2
(WHITE)
1
(BLACK)
NOISE FILTER
CIRCUIT
COMMUNICATION
CIRCUIT
PFC
CIRCUIT
ELECTRONIC CONTROLLER
Resistance of Compressor Windings
MODEL CU-S12MKQ
CONNECTION 5RS092XCD21
U-V 1.152Ω
U-W 1.152Ω
V-W 1.152Ω
