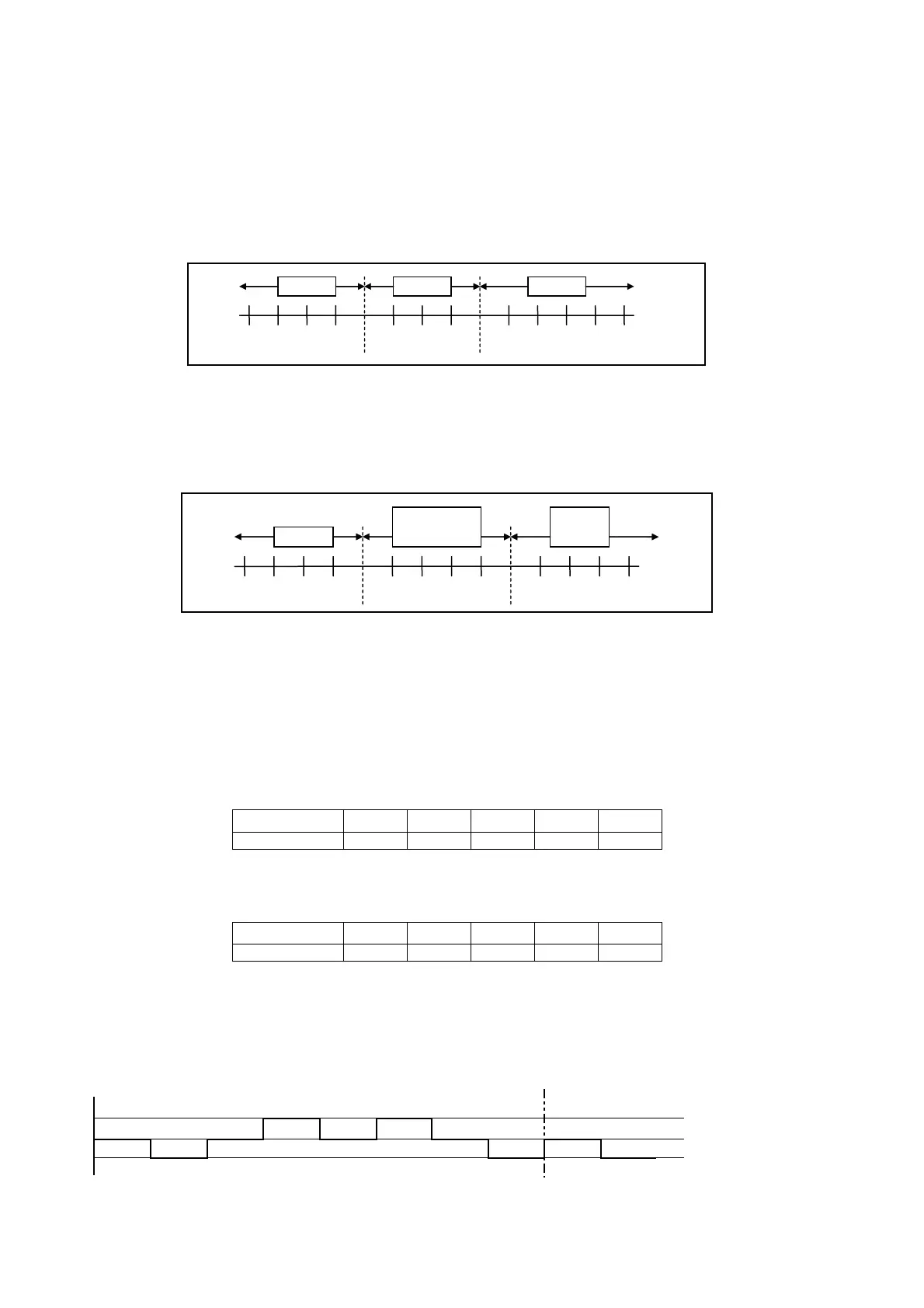

14.1.5 Automatic Operation
This mode can be set using remote control and the operation is decided by remote control setting temperature,
remote control operation mode and indoor intake air temperature.
During operation mode judgment, indoor fan motor (with speed of Lo-) is running for 30 seconds to detect the
indoor intake air temperature.
Every 10 minutes, the indoor temperature is judged.
For the 1st judgment
o If indoor intake temperature - remote control setting temperature ≥ 2°C, COOL mode is decided.
o If -2°C ≤ indoor intake temperature - remote control setting temperature < 2°C, DRY mode is decided.
o If indoor intake temperature - remote control setting temperature < -2°C, HEAT mode is decided.
-6 -5 -4 -3 -2 -1 2 1 0 4 3 6 5
Heat Dr
Cool
For the 2nd judgment onwards
o If indoor intake temperature - remote control setting temperature ≥ 3°C, if previous operate in DRY mode,
then continue in DRY mode. otherwise COOL mode is decided.
o If -2°C ≤ indoor intake temperature - remote control setting temperature < 3°C, maintain with previous mode.
o If indoor intake temperature - remote control setting temperature < -2°C, HEAT mode is decided.
-6 -5 -4 -3 -2 -1 2 1 0 4 3 6 5
Heat
Maintain
current mode
Cool
/Dry
14.2 Indoor Fan Motor Operation
14.2.1 Basic Rotation Speed (rpm)
A. Basic Rotation Speed (rpm)
i. Manual Fan Speed
[Cooling, Dry]
Fan motor’s number of rotation is determined according to remote control setting.
Remote control ○ ○ ○ ○ ○
Tab SHi Hi Me Lo QLo
[Heating]
Fan motor’s number of rotation is determined according to remote control setting.
Remote control ○ ○ ○ ○ ○
Tab SHi Hi Me Lo QLo
ii Auto Fan Speed
[Cooling, Dry]
According to room temperature and setting temperature, indoor fan speed is determined automatically.
When set temperature is not achieved, the indoor fan will operate according to pattern below.
a b cdefgh
[1 pattern : 10 s]
a b
Higher
Fan
Speed
Medium
Lower
When set temperature achieved, the indoor fan speed will be fixed. When thermostat off, the fan stop periodically.
