Panasonic CS-Z20TKR

162

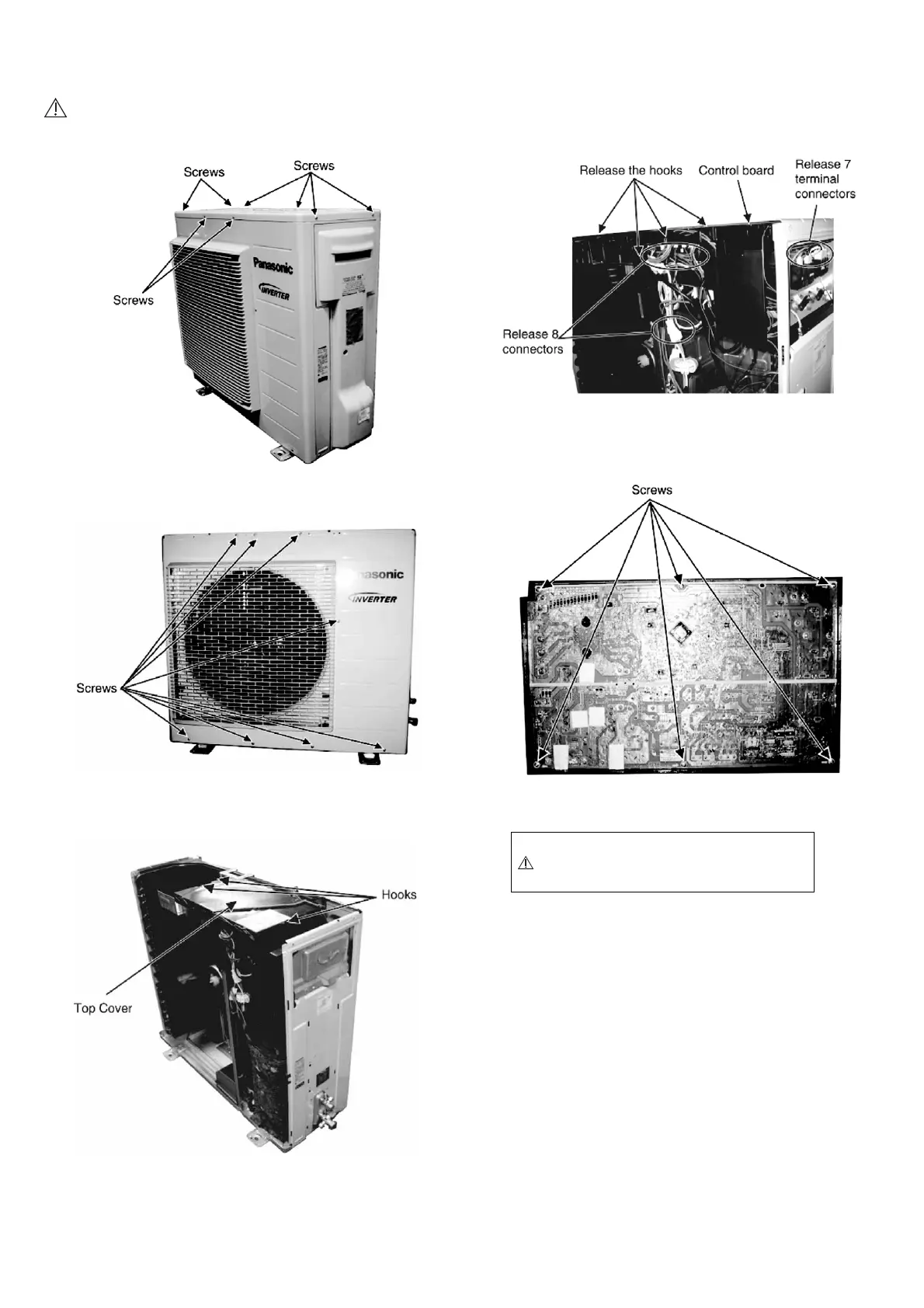

18.3.3 CU-Z80TKR
Caution! When handling electronic controller, be careful of electrostatic discharge.
1 Remove the 4 screws of the Top Panel.
Fig. 1
2 Remove the 10 screws of the Front Panel.
Fig. 2
3 Remove the Top Cover of the Electronic
Controller.
Fig. 3
4 Remove the Control Board.
Fig. 4
5 Remove the 8 screws of the Electronic
Controller.
Fig. 5
Caution! When handling electronic controller, be
careful of electrostatic discharge.
