20.3.2 CS-Z35UD3RAW
Test Report
Tap
Static Pressure
(Pa)
Airflow
(m
3
/min)
Lo
-0.1 10.37
2.2 10.09
14.4 8.45
23.4 6.89
30.4 5.54
37.1 4.35
Me
-0.1 11.97
7.7 11.04
20.4 9.59
29.5 8.16
36.8 6.88
42.6 5.85
45.9 4.75
Tap
Static Pressure
(Pa)
Airflow
(m
3
/min)
Hi
0.1 13.58
15.3 12.09
28.0 10.74
37.9 9.45
46.7 8.27
52.7 7.23
56.6 6.35
58.5 5.41
Hi Fan (Hi
Static P
selected)
-0.1 15.51
43.9 11.13
53.8 9.89
61.1 8.75
67.1 7.73
71.3 6.94
75.8 6.18

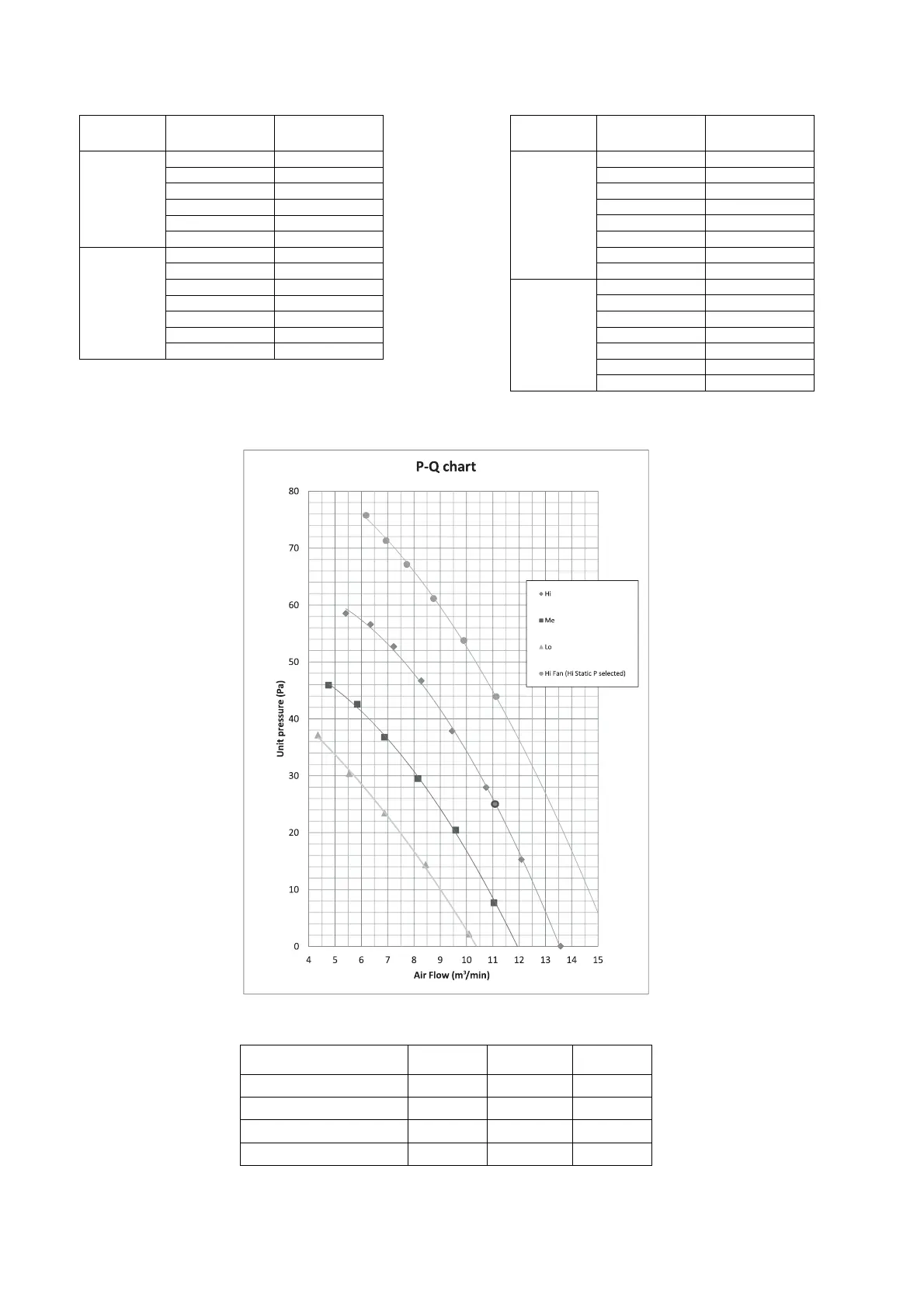

Fan Performance Curve
RPM
Static
Pressure (Pa)
Airflow
(m
3
/min)
Hi Fan (Hi Static P selected) 1300 44 11.2
Hi Fan (Standard) 1140 25 11.2
Me Fan (Standard) 1010 20 9.5
Lo Fan (Standard) 880 15 8.2
