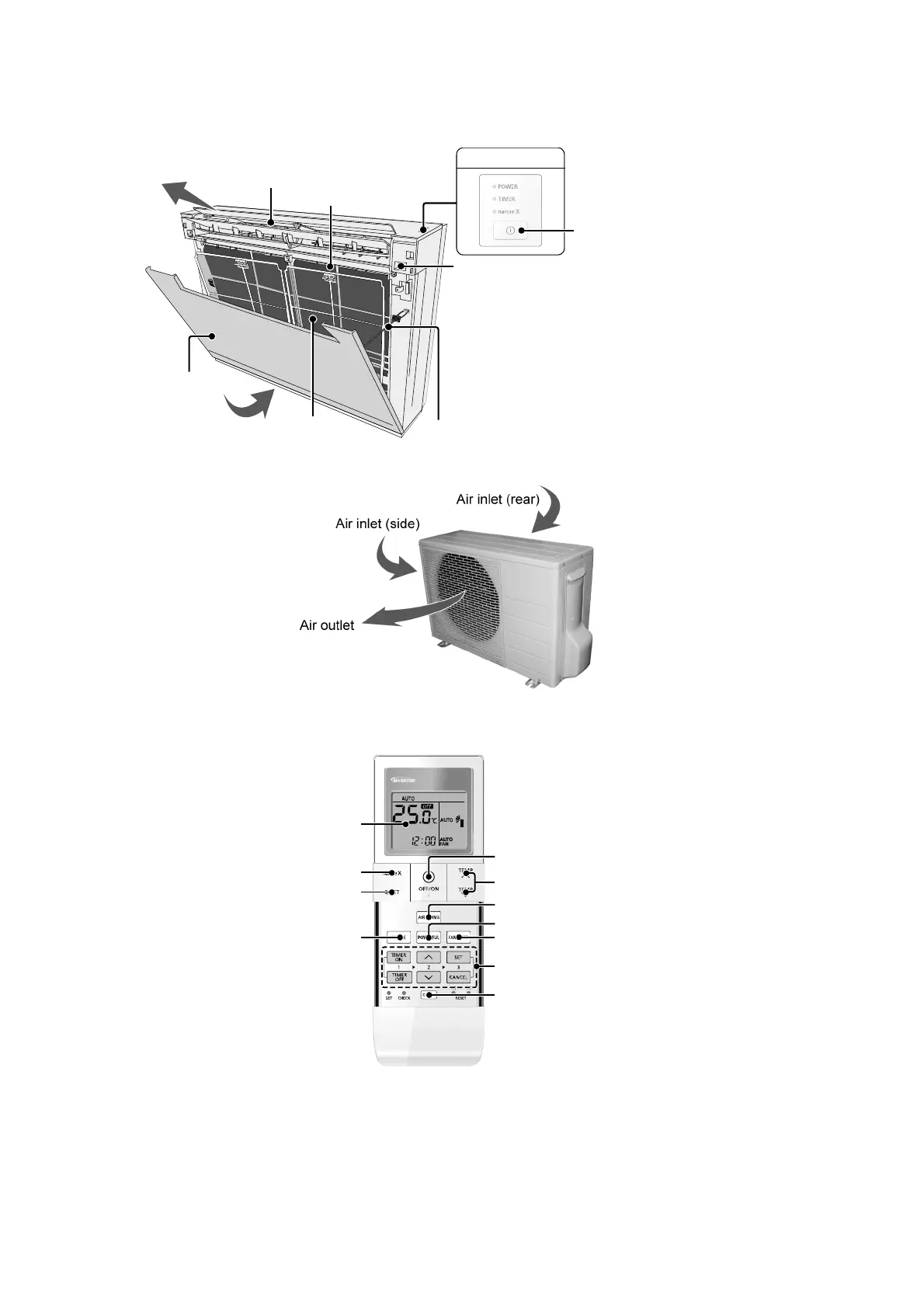

5. Location of Controls and Components
5.1 Indoor Unit
5.2 Outdoor Unit
5.3 Remote Control
Receiver Remote Control
Airflow Direction Louver
Air Outlet
Aluminium Fin
Air filters
Air Inlet
String
Front Panel
INDICATOR
Auto OFF/ON button
• Use when remote control is
misplaced or a malfunction occurs
.
nanoe™ X operation
LCD display
Quiet operation
Operation mode
Fan speed selection
Powerful operation
OFF/ON
Temperature setting
Airflow direction adjustmen
t
Clock setting
Timer setting

Panasonic CS-Z35UFRAW Specifications

General

Cooling Capacity	3.5 kW
Heating Capacity	4.0 kW
Refrigerant	R32
Power Supply	220-240 V, 50 Hz
Indoor Unit Dimensions (W x H x D)	800 mm x 295 mm x 240 mm
Outdoor Unit Dimensions (W x H x D)	800 mm x 600 mm x 300 mm
Energy Efficiency Class (Cooling)	A++
Energy Efficiency Class (Heating)	A+
Noise Level (Indoor)	21 dB
Noise Level (Indoor Unit)	21 dB
Noise Level (Outdoor Unit)	50 dB
Type	Split System
Seasonal Energy Efficiency Ratio (SEER)	6.10
SEER	6.1
SCOP	4.0
EER (Energy Efficiency Ratio)	3.50
COP (Coefficient of Performance)	4.0
