CAUTION
Before performing any of the electrical installation works, please verify on which of the intended connection use. Generally
there are 2 types of indoor-outdoor connections:
○
A Single Connection (Single Indoor Unit connects with Single Outdoor Unit)
○
B Multiple Connection (Multiple Indoor Unit connect with Single Outdoor Unit)
Both connections have different connecting methods. Any mismatch connections will result in malfunctions.

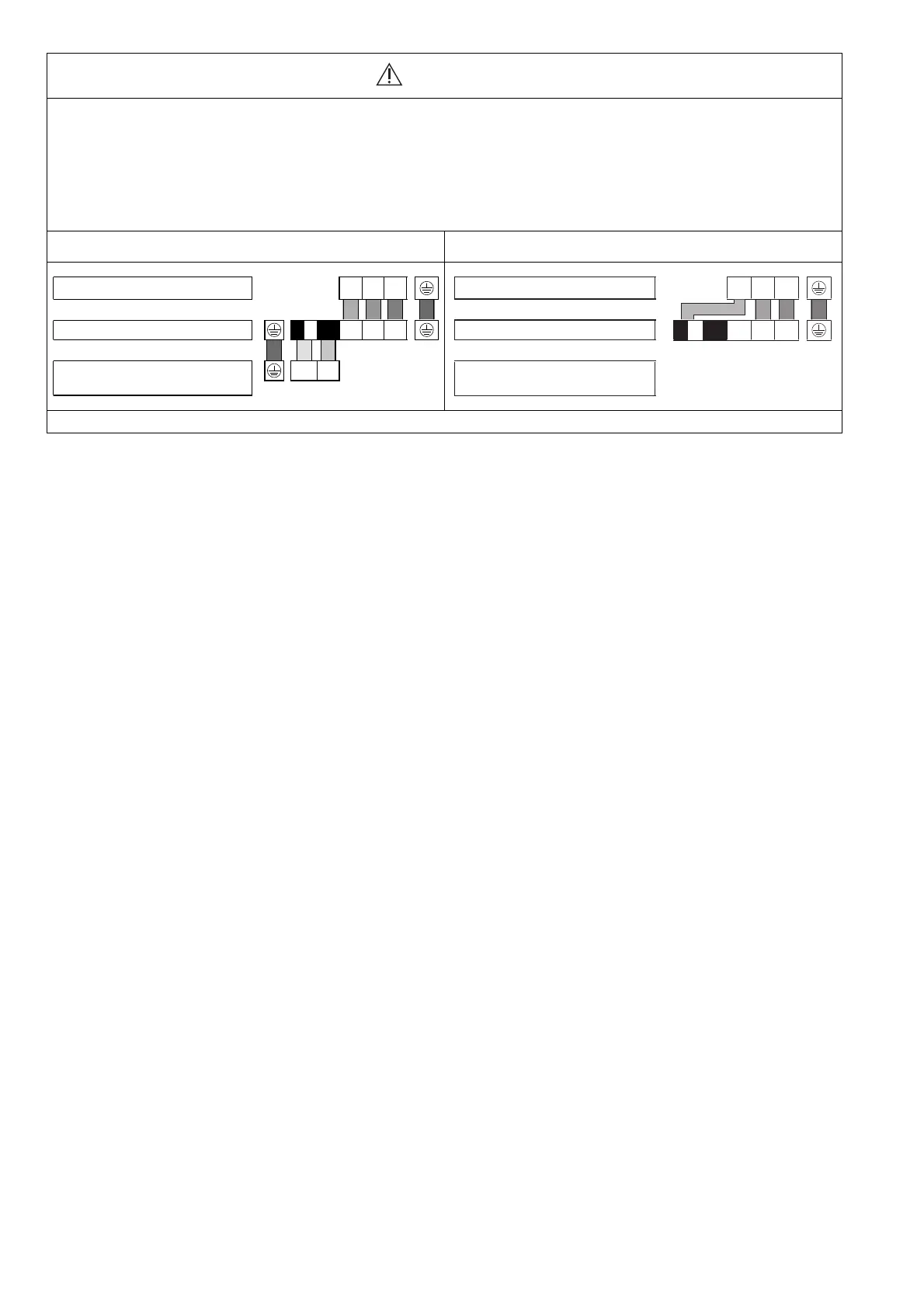

The following illustration demonstrates the correct electrical works for both type.
○
A (Single Connection)
○
B (Multiple Connection)
Please refer to the provided Installation Instructions for the detailed procedures for connecting cables to Indoor Unit.
32S1
Colour of wires (connection cable)
Terminals on the indoor unit
Terminals on the outdoor unit
L 1 N
(Power supply cord)
Terminals on the isolating devices
(Disconnecting means)
(L) (N)
32S1
Colour of wires (connection cable)
Terminals on the indoor unit
Terminals on the outdoor unit
(Power supply cord)
Terminals on the isolating devices
(Disconnecting means)
123
23
L
1
N S1
*
Connection for multi inverter model
(Outdoor power supply)

Panasonic CS-Z35XKEW Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	No
Product color	White
Gas hose diameter	9.52 mm
Hose length (max)	15 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	4200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	3620 W
Heating capacity in watts (min)	4250 W
Cooling capacity in watts (nominal)	3500 W
Seasonal efficiency rating (cooling) (SEER)	9.5
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4120 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	5.2
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling)	A+++
Annual energy consumption (cooling)	129 kWh
Hourly energy consumption (cooling)	- kWh
Annual energy consumption (heating) (Average heating season)	754 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	229 mm
Indoor unit width	870 mm
Indoor unit height	295 mm
Indoor unit weight	11000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	720 m³/h
Heating airflow (indoor unit)	840 m³/h
Indoor unit sound power level	59 dB
Indoor unit noise level (low speed)	28 dB
Indoor unit noise level (high speed)	42 dB
Outdoor unit noise level	- dB
