Panasonic CS-Z35XKEW Service Manual

83

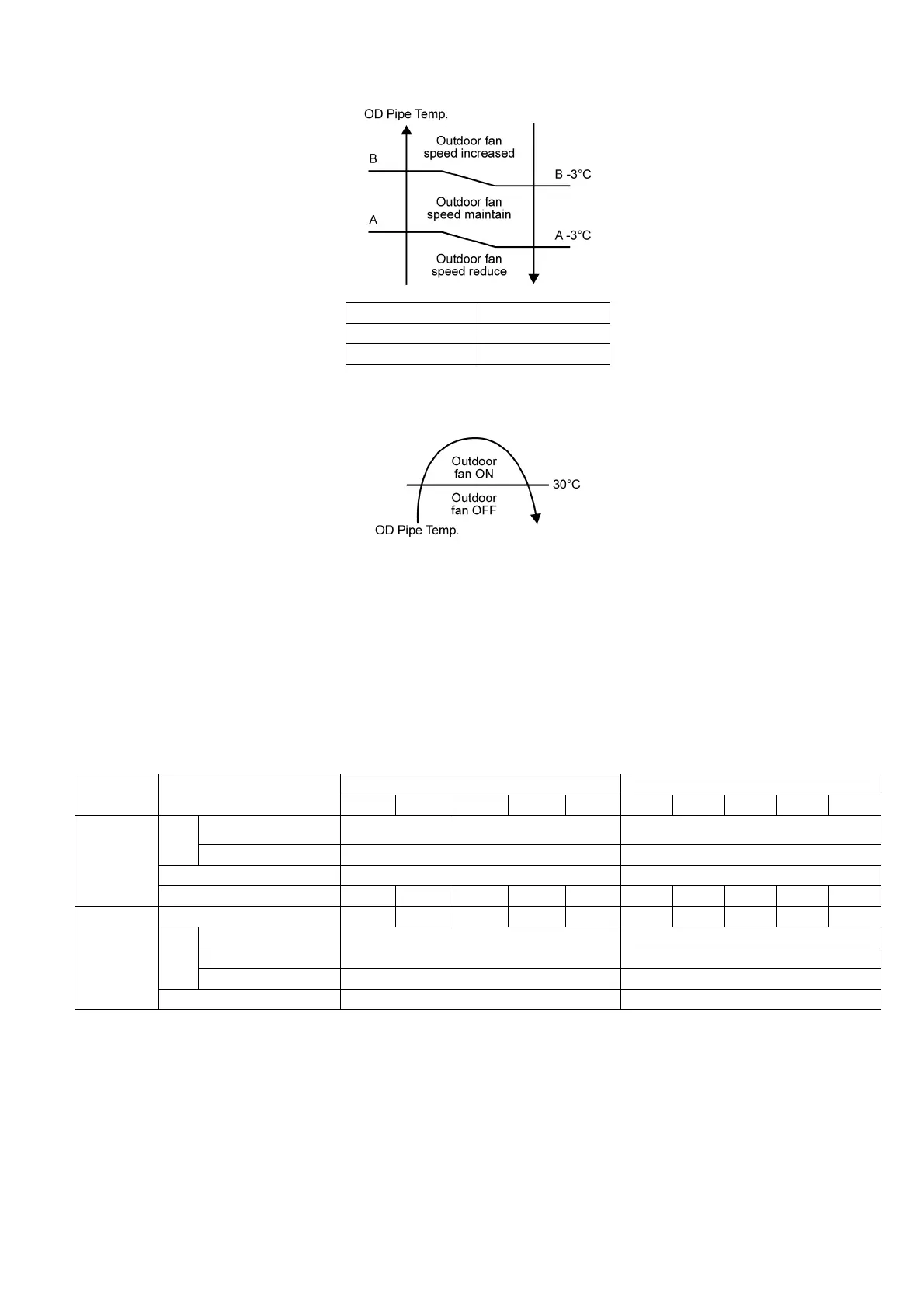

 During cooling operation, and outdoor ambient temperature is below 8°C, outdoor fan speed will be controlled
according to outdoor piping temperature as following:
OD Pipe Temperature
A 26°C
B 33°C
 During above condition, when indoor heat exchanger temperature is below 5°C, the outdoor fan will stop
according to outdoor piping temperature as following:
14.4 Airflow Direction
 There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by
vertical vanes).
 Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat
exchanger temperature and intake air temperature) and manual (angles of direction can be adjusted using
remote control).
14.4.1 Vertical Airflow
Z20/25/35/42XKEW & XZ20/25/35XKEW
Operation
Mode
Airflow Direction
Inner Vane Angle (°) Outer Vane Angle (°)
1 2 3 4 5 1 2 3 4 5
Cooling/Dry
Auto
Not yet achieve set
temperature
7 ~ 40 4 ~ 45
Achieve set temperature 7 4
Auto Swing 7 ~ 40 4 ~ 45
Manual 7 15 20 30 40 4 14 25 34 45
Heating
Manual 15 20 35 50 56 19 25 34 43 49
Auto
A 15 19
B 54 43
C 20 25
Auto Swing 20 ~ 56 25 ~ 49

Panasonic CS-Z35XKEW Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	No
Product color	White
Gas hose diameter	9.52 mm
Hose length (max)	15 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	4200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	3620 W
Heating capacity in watts (min)	4250 W
Cooling capacity in watts (nominal)	3500 W
Seasonal efficiency rating (cooling) (SEER)	9.5
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4120 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	5.2
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling)	A+++
Annual energy consumption (cooling)	129 kWh
Hourly energy consumption (cooling)	- kWh
Annual energy consumption (heating) (Average heating season)	754 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	229 mm
Indoor unit width	870 mm
Indoor unit height	295 mm
Indoor unit weight	11000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	720 m³/h
Heating airflow (indoor unit)	840 m³/h
Indoor unit sound power level	59 dB
Indoor unit noise level (low speed)	28 dB
Indoor unit noise level (high speed)	42 dB
Outdoor unit noise level	- dB
