Panasonic CS-Z35XKEW Service Manual

44
12. Installation Instruction
12.1 Select the Best Location
12.1.1 Indoor Unit
 Do not install the unit in excessive oil fume area
such as kitchen, workshop and etc.
 There should not be any heat source or steam
near the unit.
 There should not be any obstacles blocking the air
circulation.
 A place where air circulation in the room is good.
 A place where drainage can be easily done.
 A place where noise prevention is taken into
consideration.
 Do not install the unit near the door way.
 Ensure the spaces indicated by arrows from the
wall, ceiling, fence or other obstacles.
 Indoor unit of this air conditioner shall be installed
in a height of at least 1.8 m.
Table A
Model
Capacity W
(HP)
Max. Refrigerant
Charge (kg)
Indoor A
min
(m
2
)
Z20***, XZ20*** 3/4HP 0.75 Not applicable (*)
Z25***, XZ25*** 1.0HP 0.88 Not applicable (*)
Z35***, XZ35*** 1.5HP 0.97 Not applicable (*)
Z42*** 1.75HP 1.03 Not applicable (*)
Z50***, XZ50*** 2.0HP 1.47 Not applicable (*)
Z71*** 2.5HP 1.85 4.46
(*) Systems with total refrigerant charge, m
c
, lower
than 1.84kg are not subjected to any room area
requirements.
* Table “A” only applicable for single split connection.
* In case of connection to outdoor multi inverter, refer
to installation manual at outdoor unit.
A
min
= (m
c
/ (2.5 × (LFL)
(5/4)
× h
0
))
2
** not less than safety factor margin
A
min
= Required minimum room area, in m
2
m
c
= Refrigerant charge in appliance, in kg
LFL
= Lower flammability limit (0.307 kg/m
3
)
h
0
= Installation height of the appliance (1.8 m for
wall mounted)
SF
= Safety factor with a value of 0.75
** The required minimum room area, A
min
, shall also
be governed by the safety factor margin formula
below :
A
min
= m
c
/ (SF × LFL × h
0
)
The higher value shall be taken when determining the
room area.
(*) If holder at the rear of chassis (Refer column
“ 12.2.3 Indoor Unit Installation” ) need to be used to
prop up the unit, this distance shall be 65 mm or more.

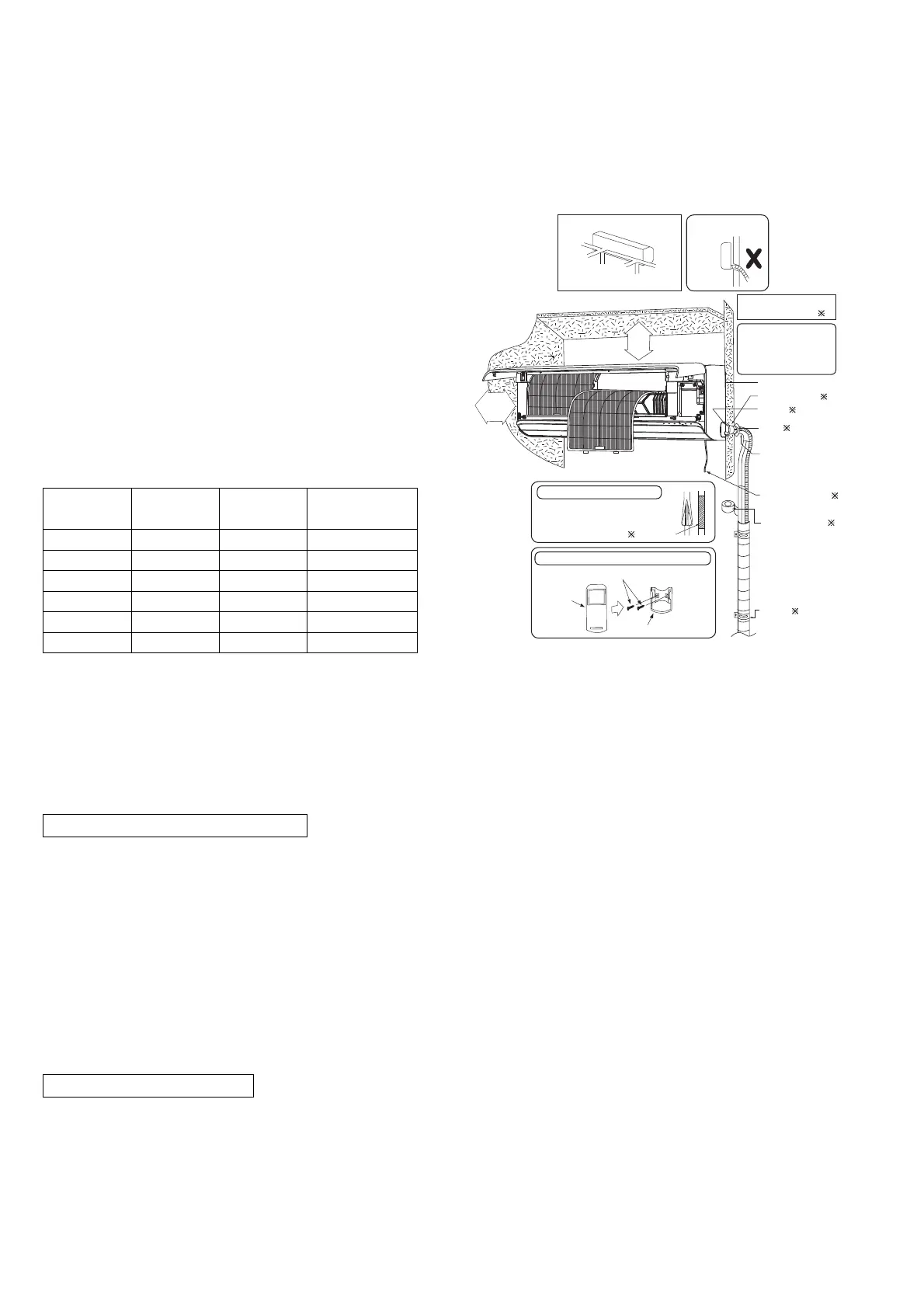

12.1.2 Indoor/Outdoor Unit Installation
Diagram
 This illustration is for explanation purposes only.
The indoor unit will actually face a different way.
Piping direction Attention not to bend
up drain hose
(Front side)
Right
Right
Rear
Right
bottom
Left
Rear
Left bottom
Left
65 mm
or more
(Left and right are identical)
Installation plate 1
Sleeve (
)
Bushing-Sleeve (
)
Bend the pipe as closely
on the wall as possible,
but be careful that it
doesn’t break.
Saddle (
)
Putty (
)
(Gum Type Sealer)
Installation parts you
should purchase (
)
50 mm
or more
Vinyl tape (wide) (
)
• Apply after carrying
out a drainage test.
• To carry out the
drainage test,
remove the air fi
lters
and pour water into
the heat exchanger.
•
Carry out insulation after
checking for gas leaks and
secure with vinyl tape.
Vinyl tape
Remote control holder 5
Remote control holder fi
xing screws 6
Remote
control
3
Insulation of piping connections
Attaching the remote control holder to the wall
Power supply cord (
)
It is advisable to avoid more
than 2 blockage directions.
For better ventilation &
multiple-outdoor installation,
please consult authorized
dealer/specialist.
50 mm
or more
(
*
)

Panasonic CS-Z35XKEW Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	No
Product color	White
Gas hose diameter	9.52 mm
Hose length (max)	15 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	4200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	3620 W
Heating capacity in watts (min)	4250 W
Cooling capacity in watts (nominal)	3500 W
Seasonal efficiency rating (cooling) (SEER)	9.5
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4120 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	5.2
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling)	A+++
Annual energy consumption (cooling)	129 kWh
Hourly energy consumption (cooling)	- kWh
Annual energy consumption (heating) (Average heating season)	754 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	229 mm
Indoor unit width	870 mm
Indoor unit height	295 mm
Indoor unit weight	11000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	720 m³/h
Heating airflow (indoor unit)	840 m³/h
Indoor unit sound power level	59 dB
Indoor unit noise level (low speed)	28 dB
Indoor unit noise level (high speed)	42 dB
Outdoor unit noise level	- dB
