ORDER NO. KME8110001C1

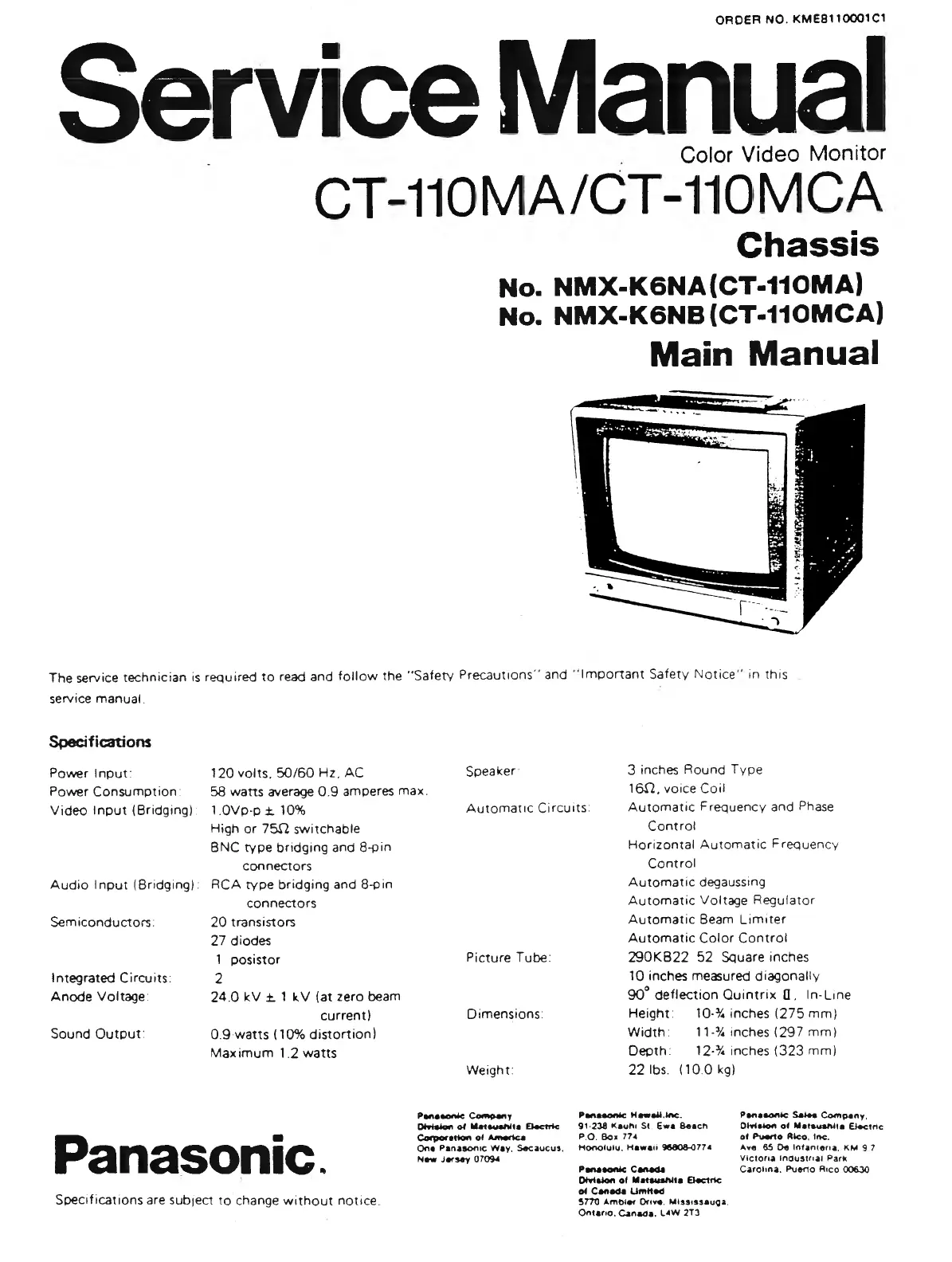

Service Manual
Color Video Monitor
CT-110MA/CT-110MCA
Chassis
No. NMX-K6NA(CT-110MA)
No. NMX-K6NB(CT-110MCA)
Main Manual
The service technician is required to read and follow the "Safety Precautions' and Important Safety Notice in this
service manual.
Panasonic Company
Division of MaiauaMta Electric
Corporation of America
Ona Panasonic Way. Secaucus.
Naw Jersey 07094
Specifications
Power Input: 120 volts, 50/60 Hz, AC
Speaker
3 inches Round Type
Power Consumption:
58 watts average 0.9 amperes max.
1 6T2, voice Coil
Video Input (Bridging):
1.0Vp-p± 10%
High or 7512 switchable
BNC type bridging and 8-pin
connectors
Automatic Circuits:
Automatic Frequency and Phase
Control
Horizontal Automatic Frequency
Control
Audio Input (Bridging):
RCA type bridging and 8-pin
connectors
Automatic degaussing
Automatic Voltage Regulator
Semiconductors:
20 transistors
27 diodes
Automatic Beam Limiter
Automatic Color Control
1 posistor
Picture Tube:
290KB22 52 Square inches
Integrated Circuits:
2
10 inches measured diagonally
Anode Voltage:
24.0 kV ± 1 kV (at zero beam
90° deflection Quintrix Q, In-Line
current)
Dimensions:
Height: 10-% inches (275 mm)
Sound Output:
0.9watts (10% distortion)
Maximum 1.2 watts
Weight:
Width: 1 1-% inches (297 mm)
Depth: 12-% inches (323 mm)
22 lbs. (10.0 kg)
Panasonic Sales Company.
Division of Matsushita Electric
of Puerto Rico. Inc.
Ave 65 De Infantena. KM 9 7
Victoria Industrial Park
Carolina. Puerto Rico 00630
Panasonic.
Specifications are subject to change without notice.
Panasonic Hawaii.Inc.
91-238 Kauht St Ewa Beach
P.O. Box 774
Honolulu. Hawaii 96808-0774
Panasonic Canada
Division of Matsushita Electric
of Canada Limited
5770 Ambler Drive. Mississauga.
Ontario. Canada. L4W 2T3
