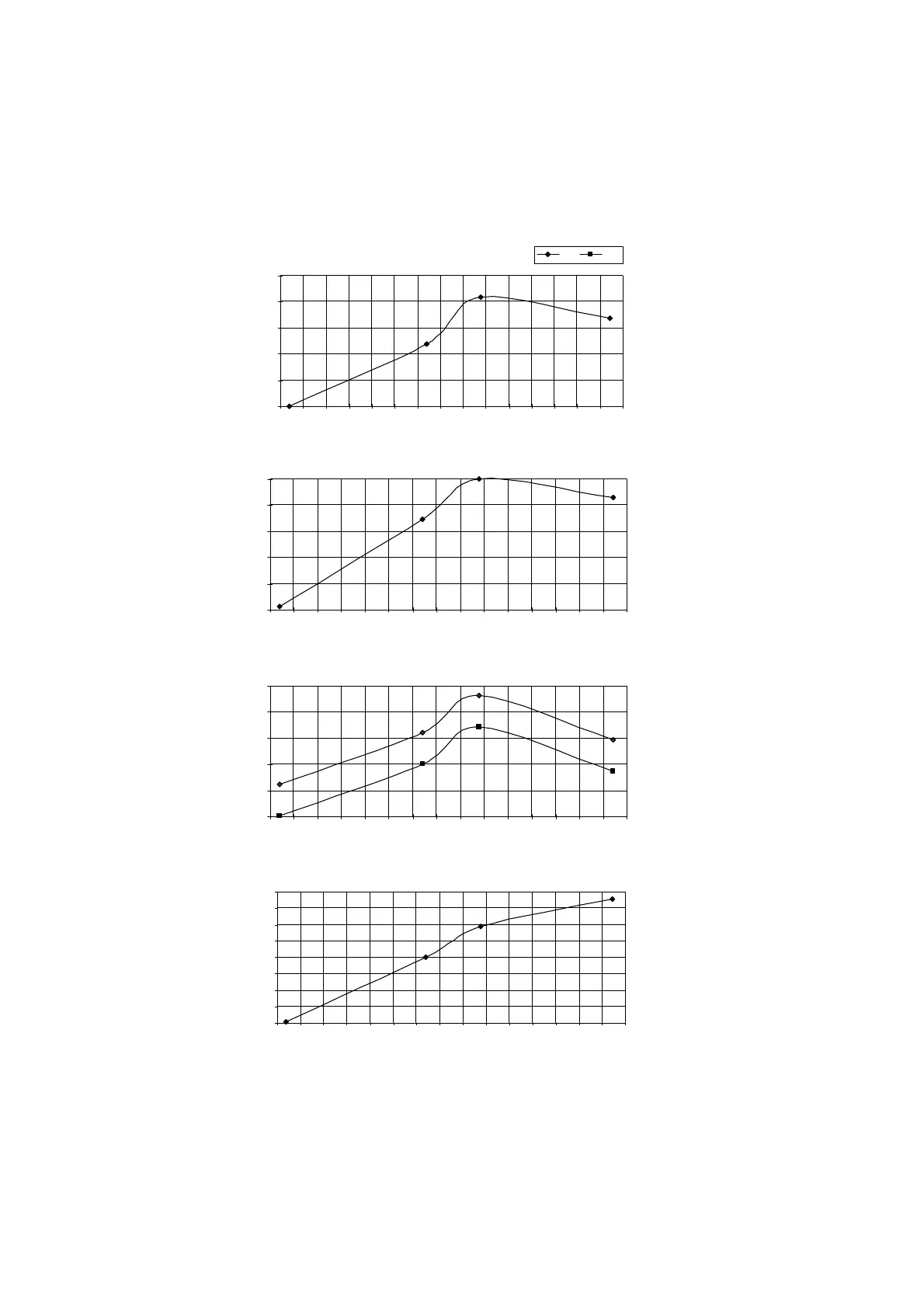

 Heating Characteristic
[Condition] Room temperature: 68°F (DBT)
Operation condition: High fan speed
Piping Length: 24.6ft
Compressor Freq: Fh
Heating overload protection: 44Hz (Outside air 75.2°F)
B) Indoor unit capacity: Heating (3.2: CS-E12NKUAW), service mode frequency = 52Hz
88.000
93.000
98.000
103.000
108.000
113.000
3 8 13 18 23 28 33 38 43 48 53 58 63 68 73 78
Outdoor Air Temperature (°F)
Outlet Air
Temperature (°F
)
208 230
2.000
2.500
3.000
3.500
4.000
4.500
3 8 13 18 23 28 33 38 43 48 53 58 63 68 73 78
Outdoor Air Temperature (°F)
Heating
Capacity (kW)
5.300
5.800
6.300
6.800
7.300
7.800
3 8 13 18 23 28 33 38 43 48 53 58 63 68 73 78
Outdoor Air Temperature (°F)
Current
(A)
48.000
58.000
68.000
78.000
88.000
98.000
108.000
118.000
128.000
3 8 13 18 23 28 33 38 43 48 53 58 63 68 73 78
Outdoor Air Temperature (°F)
Gas Side Piping
Pressure (PSI)
