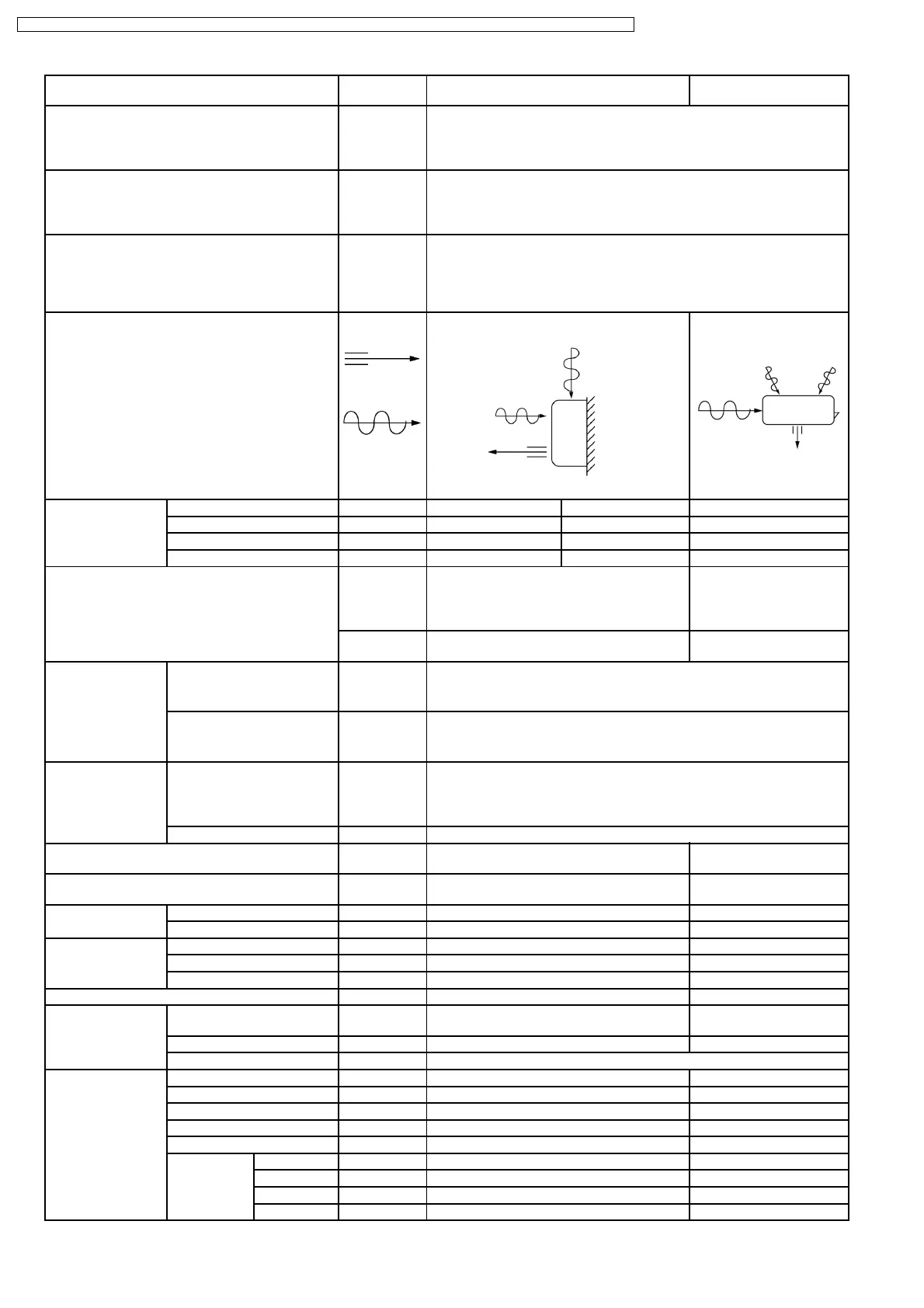

Panasonic CU-3C20BKP5G Service Manual

Unit
One Unit (A)
CS-C12BKPG
One Unit (B)
CS-C7BKPG
CU-2C19BKP5G
Cooling Capacity kW
kcal/h
(A) 3.55 - 3.52
(A) 3,050 - 3,030
(B) 2.08 - 2.06
(B) 1,790 - 1,770
(A+B) 5.63 - 5.58
(A+B) 4,840 - 4,800
Moisture Removal l/h
Pint/h
(A) 2.1
4.4
(B) 1.4
3.0
(A+B) 3.1
6.6
Power Source Phase
V
Cycle
Single
230 - 220
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m
3
/min (cfm) 7.3 - 7.3 (260 - 260) 6.4 - 6.4 (230 - 230) —
Indoor Air (Me) m
3
/min (cfm) 8.7 - 8.7 (310 - 310) 7.4 - 7.4 (260 - 260) —
Indoor Air (Hi) m
3
/min (cfm) 10.2 - 10.2 (360 - 360) 8.5 - 8.5 (300 - 300) —
Indoor Air (SHi) m
3
/min (cfm) 10.5 - 10.5 (370 - 370) 9.4 - 9.4 (330 - 330) —
Noise Level dB (A) (A) High 39 - 39
Low 29 - 29
(B) High 33 - 33
Low 26 - 26
High 55 - 53
Power level
dB
(A) High 52 - 52 (B) High 46 - 46 High 70 - 68
Electrical Data Input W (A) 1,250 - 1,230 (B) 750 - 720 (A+B) 1,880 -1,840
Running Current A (A) 5.7 - 5.9 (B) 3.9 - 3.8 (A+B) 9.0 - 9.1
EER W/W
(kcal/hW)
(A) 2.84 - 2.86
(2.44 - 2.46)
(B) 2.77 - 2.86
(2.39 - 2.46)
(A+B) 2.99 - 3.03
(2.57 - 2.61)
Starting Current A (A) 25 - 24 (B) 15 - 14 (A+B) 40 - 38
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”,3/8”
L ; Half Union 1/4”, 1/4”
G ; 3-way valve 1/2”,3/8”
L ; 3-way valve 1/4”,1/4”
Pipe Size
(Flare piping)
inch
inch
G (gas side) ; 1/2”,3/8”
L (liquid side) ; 1/4”, 1/4”
G (gas side) ; 1/2”,3/8”
L (liquid side) ; 1/4”,1/4”
Drain
Hose
Inner diameter mm 12 —
Length m 0.7 —
Dimensions Height inch (mm) 10 - 13/16 (275) 25 - 21/32 (651)
Width inch (mm) 31 - 15/32 (799) 35 - 3/16 (893)
Depth inch (mm) 8 - 9/32 (210) 13 - 19/32 (345)
Net Weight lb (kg) 20 (9.0) 148 (67)
Compressor Type — Rotary (1 cylinder)
rolling piston type
Motor Type — Induction (2-poles)
Rated Output W (A) 1,100 (B) 600 (A+B) 1,700
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% AS + Glass Fiber 20%
Motor Type Induction (4-poles) Induction (6-poles)
Input W (A) 28.7 - 27.1 (B) 20.6 - 19.1 121.82 - 107.91
Rated Output W (A) 15 (B) 10 37
Fan Speed Low rpm (A) 900 - 900 (B) 780 - 780 —
Medium rpm (A) 1,080 - 1,080 (B) 900 - 900 —
High rpm (A) 1,260 - 1,260 (B) 1,030 - 1,030 740 - 725
SuperHigh rpm (A) 1,300 - 1,300 (B) 1,140 - 1,140 —
12
CS-C9BKPG CU-2C14BKP5G / CS-C9BKPG CU-2C18BKP5G / CS-C9BKPG CU-3C20BKP5G / CS-C7BKPG CU-2C19BKP5G / CS-C12BKPG
