Panasonic CU-A125KE - 17 Exploded View: Outdoor Unit (CU-A75 KE;A95 KE); Outdoor Unit (CU-A75 KE;A95 KE) Parts Diagram

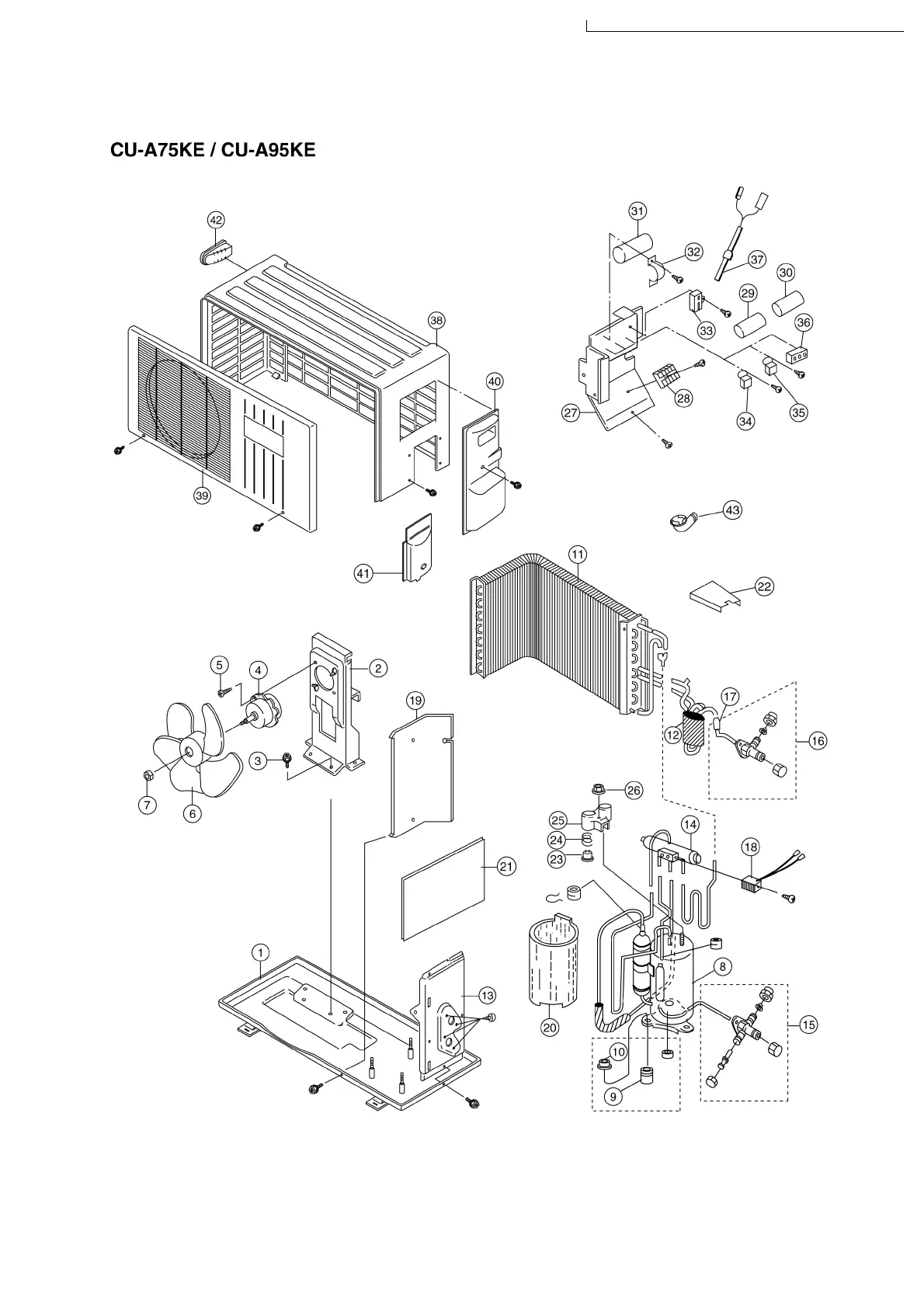

17 Exploded View
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
85
CS-A75KE CU-A75KE / CS-A95KE CU-A95KE / CS-A125KE CU-A125KE
