8.2.3.2. Outdoor Air Temperature Control

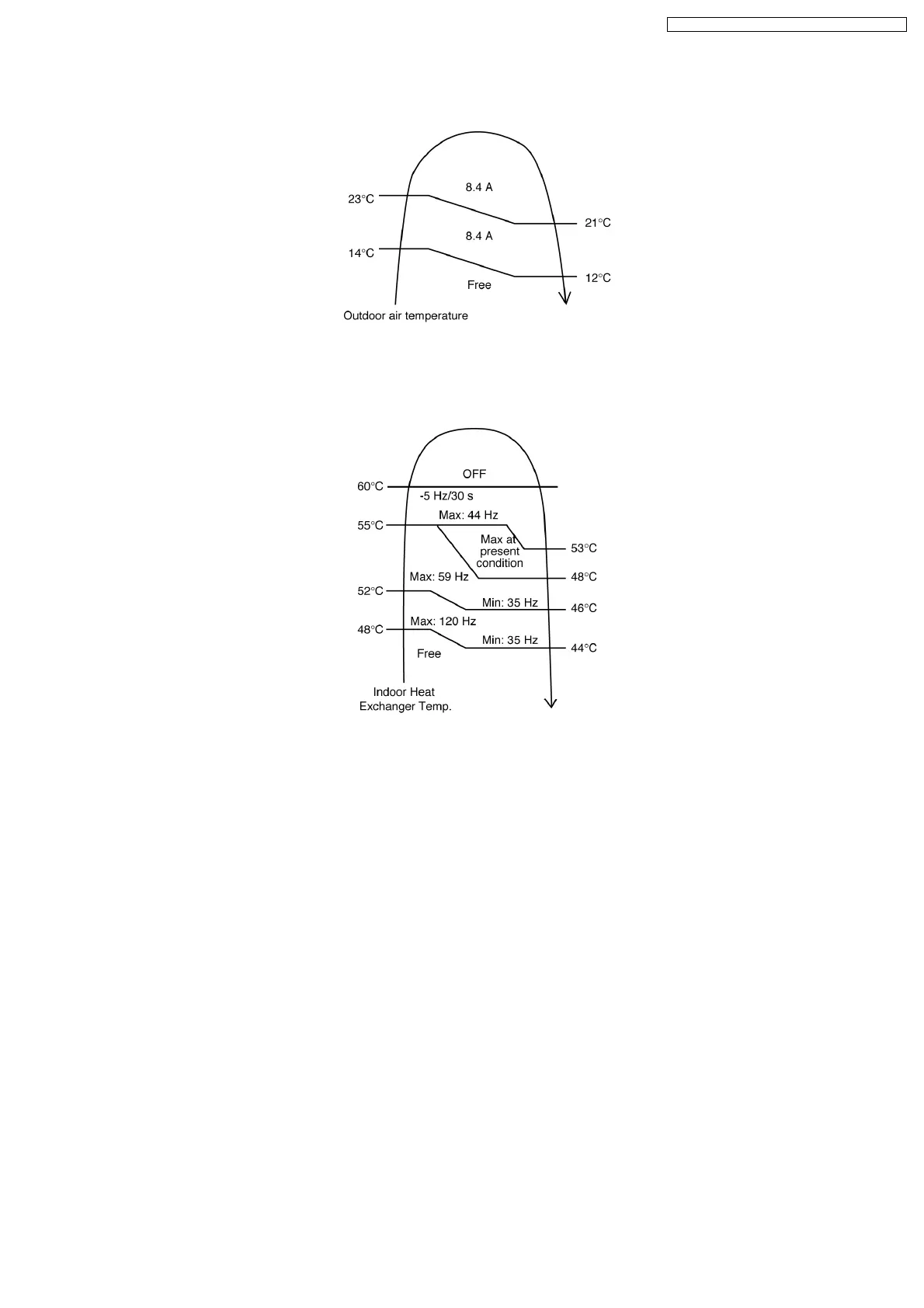

The Max current value is regulated in accordance to the outdoor air temperature as shown in the below figures.
8.2.3.3. Overload Protection Control
The compressor operating frequency is regulated in accordance to indoor heat exchanger temperature as shown in below figures.
41
CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE
