11.2.4. Connect The Cable To The Indoor Unit
The power supply cable and indoor unit and outdoor unit connecting cable can be connected without removing the front grille.
1. Install the indoor unit on the installing holder that mounted on the wall,
2. Open the front panel and grille door by loosening the screw.
3. Cable connection to the power supply through Isolating Devices (Disconnecting means).
• Connect the approved polychloroprene sheathed power supply cord 3 x 1.5 mm
2
(3/4~1.5HP) or 3 x 2.5 mm
2
(2.0~2.5HP),
type designation 245 IEC 57 or heavier cord to the terminal board, and connect the others end of the cable to Isolating
Devices (Disconnecting means).
4. Route the power supply cord via the left excapement.
5. Connection cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed 3 x 1.5 mm
2
(3/4~1.5HP)
or 3 x 2.5 mm
2
(2.0~2.5HP) flexible cord, type designation 245 IEC 57 or heavier cord.
6. Route the indoor and outdoor connecting cable via the left excapement.

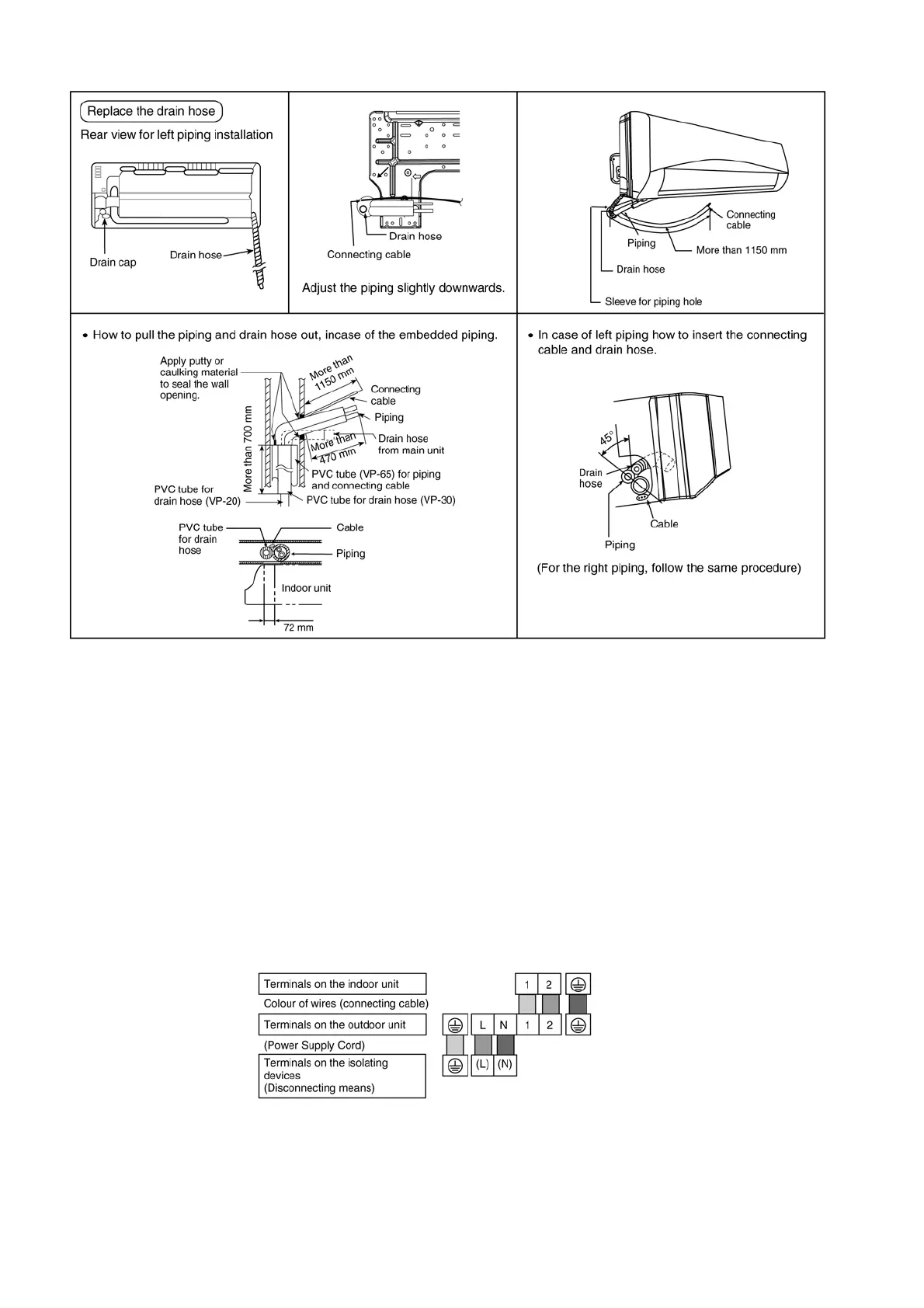

7. Connect the power supply cord and connecting cable between indoor unit and outdoor unit according to the diagram below.
To Next Page
