Panasonic CU-PC12JKF - Disassembly and Assembly Instructions; Indoor Electronic Controllers and Control Board Removal Procedures

37

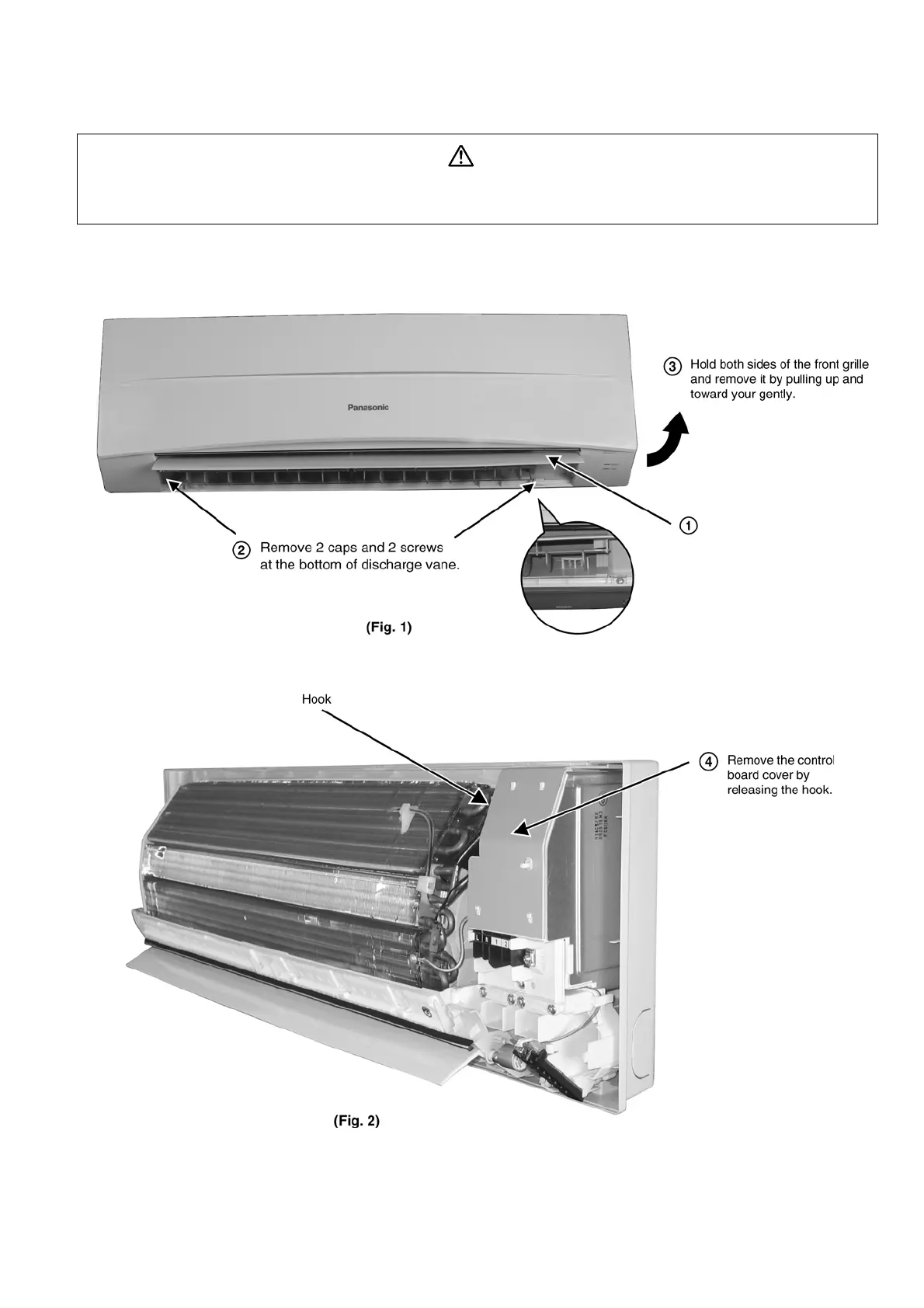

16 Disassembly and Assembly Instructions
16.1. Indoor Electronic Controllers and Control Board Removal Procedures
WARNING
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before
proceeding with repair work. Failure to heed this caution may result in electric shocks.
Lift to open the
horzontal vane gently.
