Panasonic CU-PS12PKV - Page 88

88
Figure 3 Figure 4

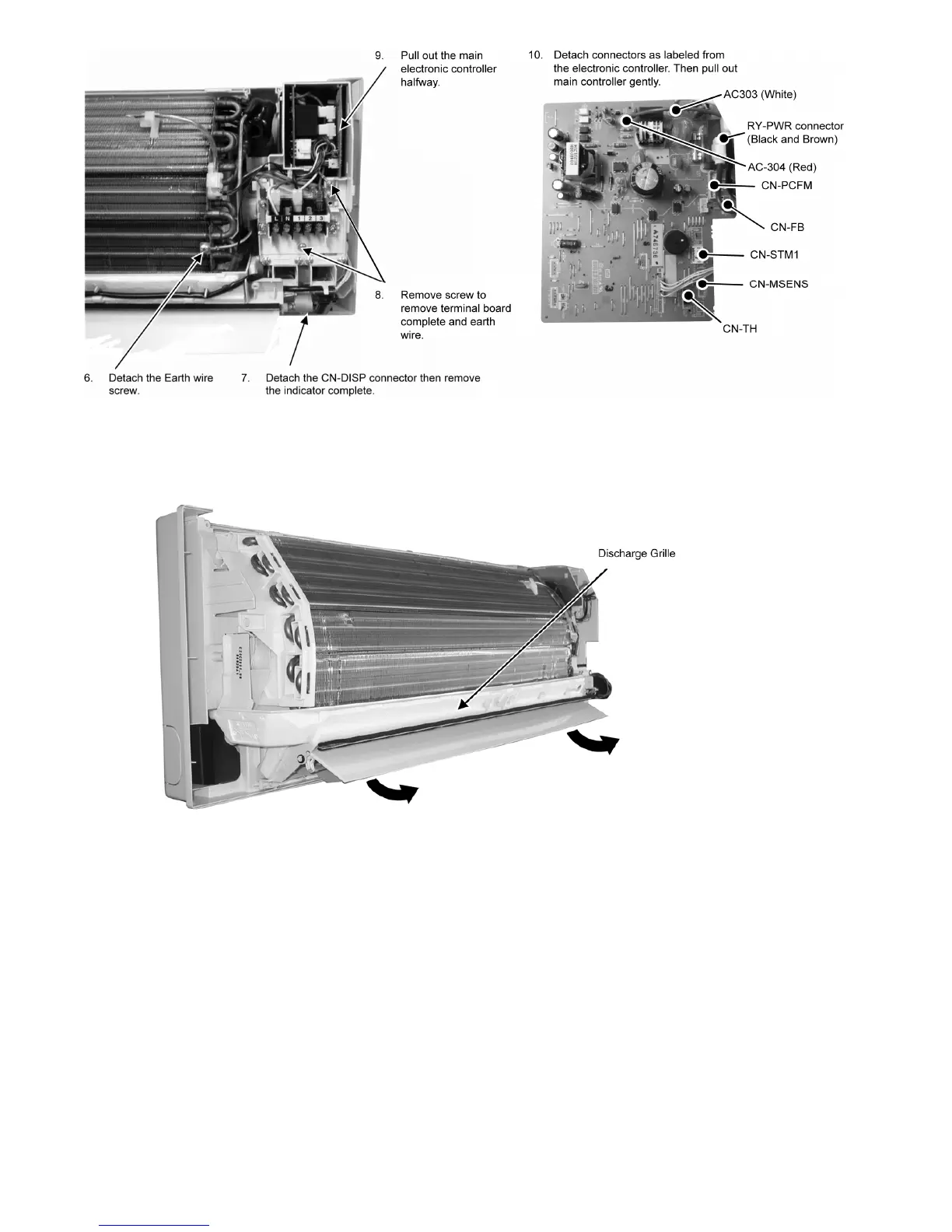

15.1.3 To remove discharge grille
Figure 5
11. Pull out to remove the drain
hose from the discharge grille
12. Then pull the discharge grille
downward gently to dismantle it
