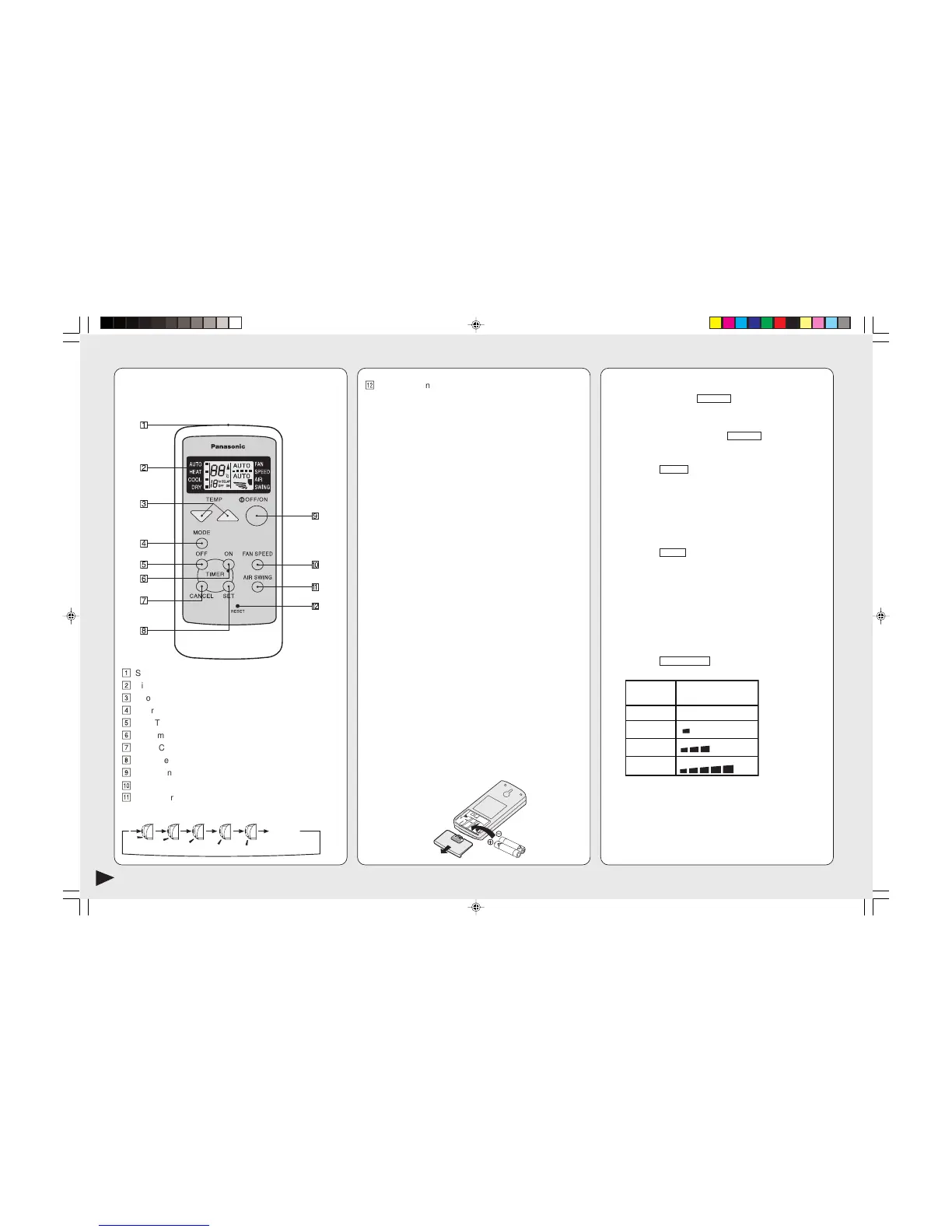

NAME OF EACH PART
■ Remote Control
1 Signal Transmitter
2 Display Panel
3 Room Temperature Setting Button
4 Operation Mode Selection Button
5 OFF-Timer Button
6 ON-Timer Button
7 Timer Cancellation Button
8 Timer Setting Button
9 Operation Button (OFF/ON)
Ä Fan Speed Selection Button
Å Airflow Direction Control Button
● Display of air flow direction, changing as follow:
Ç RESET Button
If the display is chaotic or can not be adjusted, use a
pin to gently press this button to reset the remote
control to the original set by manufacturer.
■ Remote Control Signal
● Make sure it is not obstructed.
● Maximum distance: 10 m.
● Signal received sound.
One short beep or one long beep.
■ Notes for Remote Control
● Direct the remote control towards the signal
receiver of the Indoor Unit.
● Do not drop or throw the remote control.
● Do not leave the remote control in a place subject to
direct sunlight or near heat sources such as radiator.
● Do not get it wet.
■ How to Insert the Batteries
1 Remove the remote control back cover completely
2 Insert the batteries
– Be sure the direction is correct
■ About the Batteries
● Can be used for approximately one year.
■ Observe the Following When Replacing
the Batteries
1 Replace with two new batteries of the same type.
2 Do not use rechargeable batteries (Ni-Cd).
3 Remove the batteries if the unit is not to be used
for a long period.
■ To Start the Operation
● Press operation OFF/ON buton.
● POWER indicator (green) on the indoor unit will
light up.
● To stop, press operation OFF/ON once more.
■ Setting Mode
● Press MODE to select:
AUTO – Automatic Operation
HEAT – Heating Operation
COOL – Cooling Operation
DRY – Soft Dry Operation
■ Setting Temperature
● Press TEMP to increase or decrease the
temperature.
● The temperature can be set between 16˚C ~ 30˚C.
● Recommended setting temperature:
Heating – 19˚C ~ 23˚C
Cooling – 24˚C ~ 26˚C
Soft Dry – 20˚C ~ 24˚C
■ Fan Speed Control
● Press FAN SPEED to select:
AUTO
LO
MED
HIGH
Fan Speed Remote Control
Display
AUTO Fan Speed
Fan Speed
Fan Speed
Fan Speed
AUTO
