Panasonic CZ-KPY3A series Technical Data & Service Manual

1
1-272

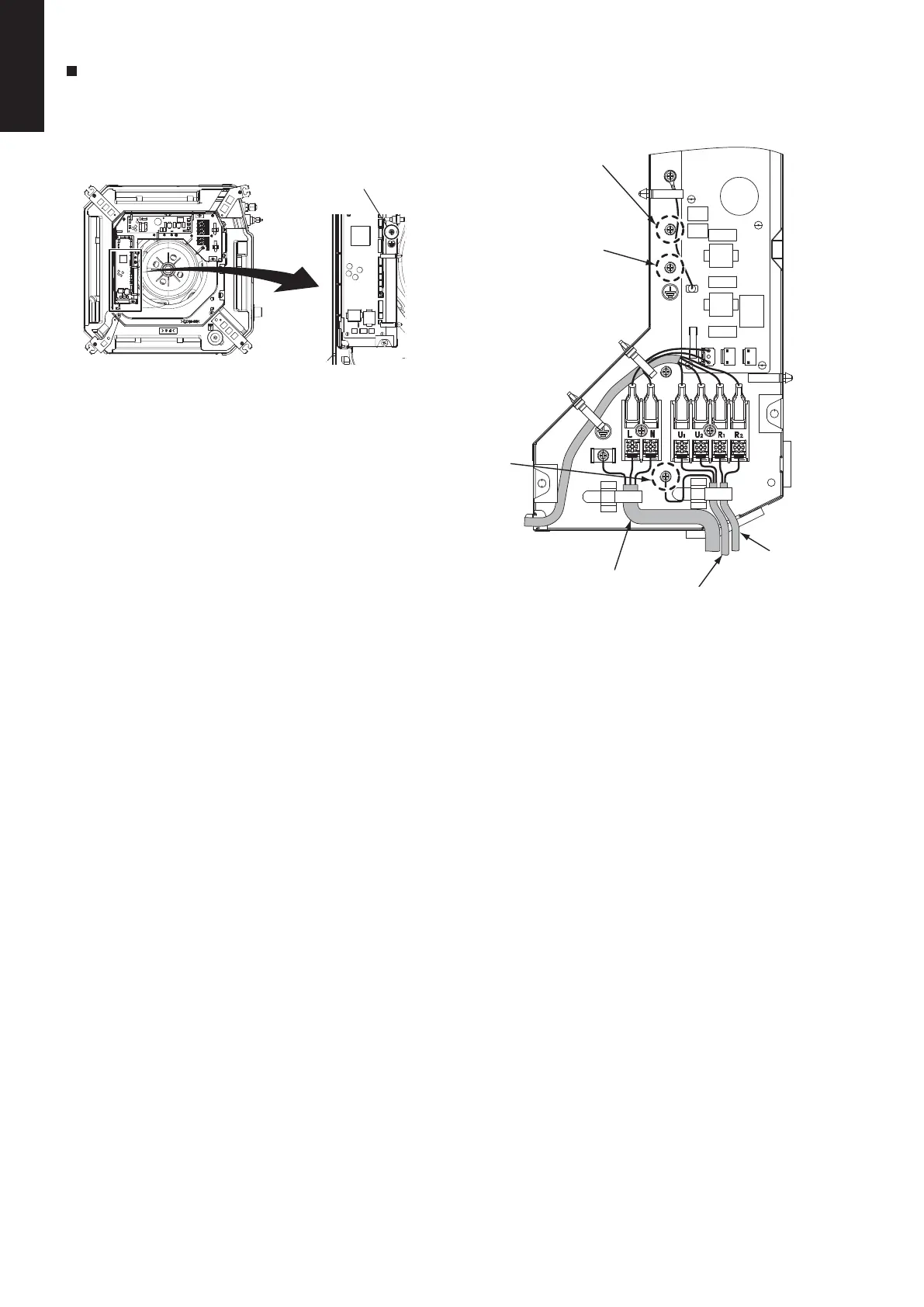

Wiring samples
Type Y2
Functional ground screw
(Louver Motor)
Power supply cord
Functional ground screw
(Schedule Timer)
Protective ground screw
(External Solenoid Valve
Kit for 3WAY)
Use this screw when
connecting the shield
for the inter-unit control
wiring to ground
Inter-unit
control wiring
Remote
control wiring
