13

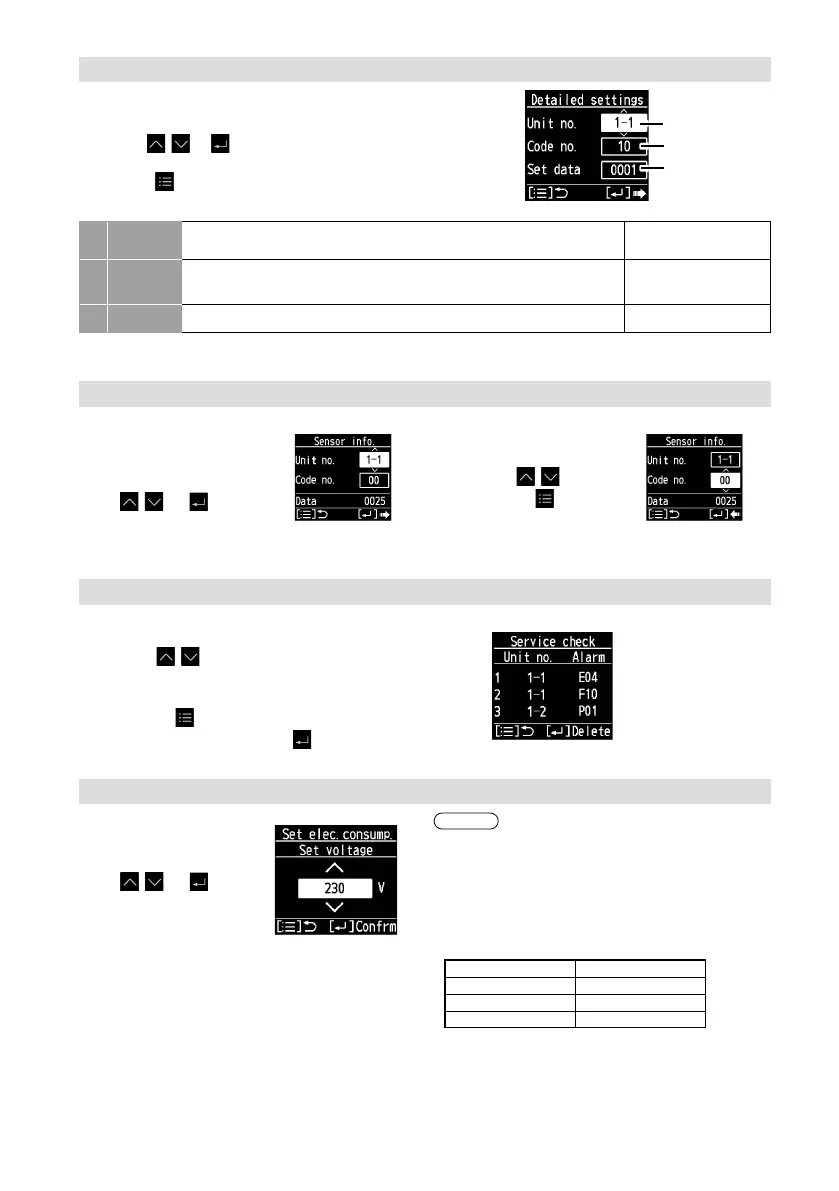

Detailed settings
3
Set.
(Select the indoor unit number, Code no. and Set data.)
(When selecting Code no., refer to the following table.)
Press
→ . (Repeat)
Indoor unit number
Set data
Code no.
4
Press .
After Selecting [YES], the unit restarts.
Code no.
Set data
31
Vent output
setting
Set this when connecting a commercially sold fan, etc. to the ventilation
fan output “FAN DRIVE:2P (White)” on the indoor control board.
*Dedicated cables (optional) are required.
• 0000: Not connected
• 0001: Connected
32
Temp sensor
setting
Set this when measuring the room temperature with the room temperature sensor of the remote controller.
• When using the main and sub remote controllers, the main one is enabled.
• When using with the remote sensor in combination, set the indoor unit setting data.
*
This setting is not available during group-controlling.
• 0000: Indoor unit
• 0001: Remote controller
33
Temp display
setting
Set the type of temperature display.
• 0000: °C
• 0001: °F
* Depending on the type of indoor unit, Code no. may be displayed with 6 digits. In this case, read as follows.
e.g. 10 → 000010
Sensor info.
This displays each sensor temperature of the remote controller, indoor units and outdoor units.
3
Select.
(Select the unit number and
Code no.)
Press
→ . (Repeat)
4
Confi rm the
content.
Press .
●Pressing
will return to the
Maintenance func
screen.
Service check
This displays the alarm history.
3
Confi rm the content.
Press .
Information of the last 4 errors is displayed.
[
--
] shows that no error has occurred.
●Pressing
will return to the Maintenance func screen.
●To delete the error history, press
and select [YES].
Set elec. consumption
3
Set.
(Select the power supply
voltage of outdoor units.)
Press
→ .
Note
• Set the power supply voltage of outdoor units to calculate electric
consumption of the Power consumption monitor.
• If the setting diff ers from the power supply voltage of outdoor units,
the electric consumption value of the Power consumption monitor will
diff er from the actual calculation result by a power meter.
• Depending on the outdoor unit model, this cannot be set.
■ When 3-phase model connections are used
for outdoor units
Power supply voltage Setting value
380 V 220 V
400 V 230 V
415 V 240 V
4
Select [YES].
To Next Page
