Panasonic CZ-RTC6BLW

8

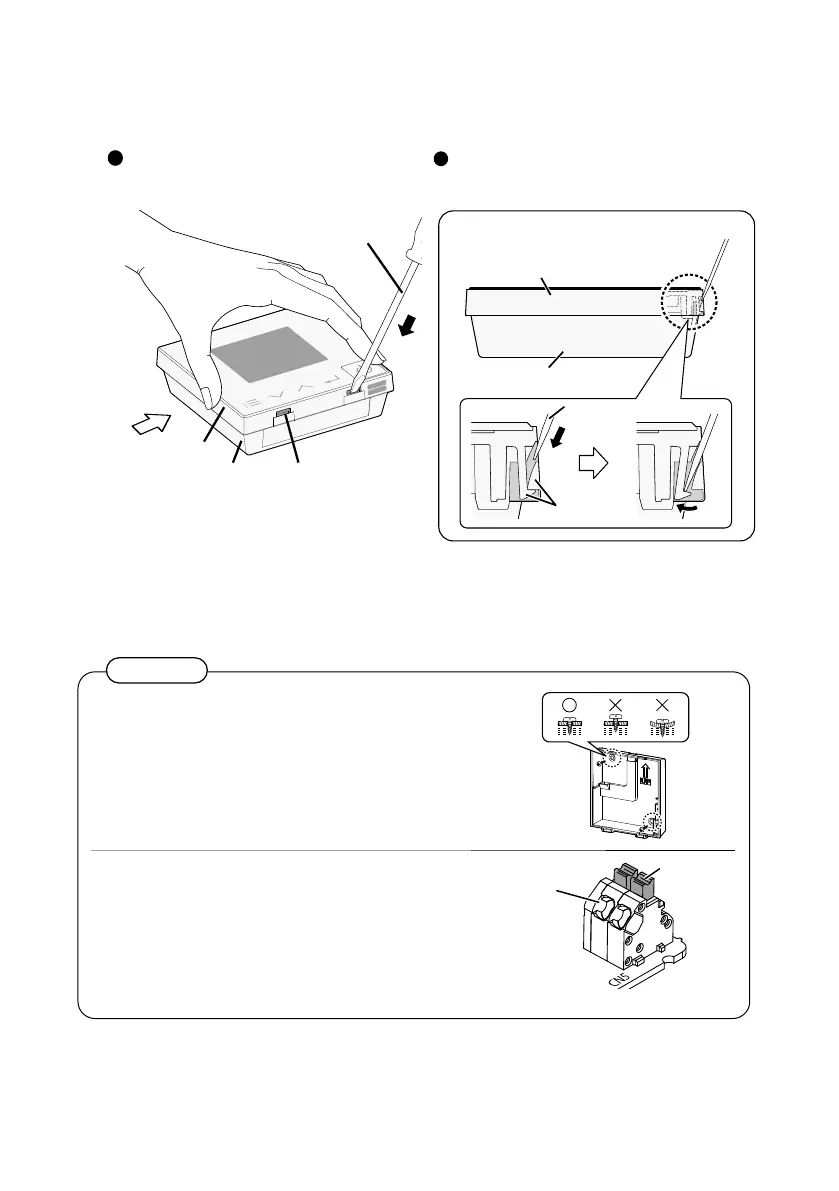

Mounting
1 Remove the top case.
1
Insert the screwdriver to the bottom case.
Insert the fl at-blade screwdriver to the claws as show in
the fi gure.
2
Push the fl at-blade screwdriver in.
Push down the fl at-blade screwdriver along with the slope
of the claws until the top case comes off .
Bottom case
Topcase
Claw (2 locations)
A
Flat-blade screwdriver
Topcase
Bottom case
Claw
Flat-blade screwdriver
View
A
2 Mount to the wall.
There are 2 types of wall-mounting methods: Exposed type and Embedded type.
Mounting the bottom case
 Tighten the screws securely until the screw heads touch the bottom
case.
(Otherwise, loose screw heads may hit the PCB and cause
malfunction when mounting the top case.)
 Do not over-tighten the screws.
(The bottom case may be deformed, resulting in the unit becoming
detached from the surface it is fixed to.)
Connection to the remote controller terminal board
 Depress the push button using a round bar or fi nger, insert the
remote control wiring securely from the wiring insertion slot and
release the push button.
 Pull the remote control wiring lightly, and confi rm it is secured.
 There is the danger of shorting if copper wire is exposed. Make sure
the wire is properly inserted.
insertion slot
push button
remote controller terminal board
Attention
