13
DVQX2125 (ENG)

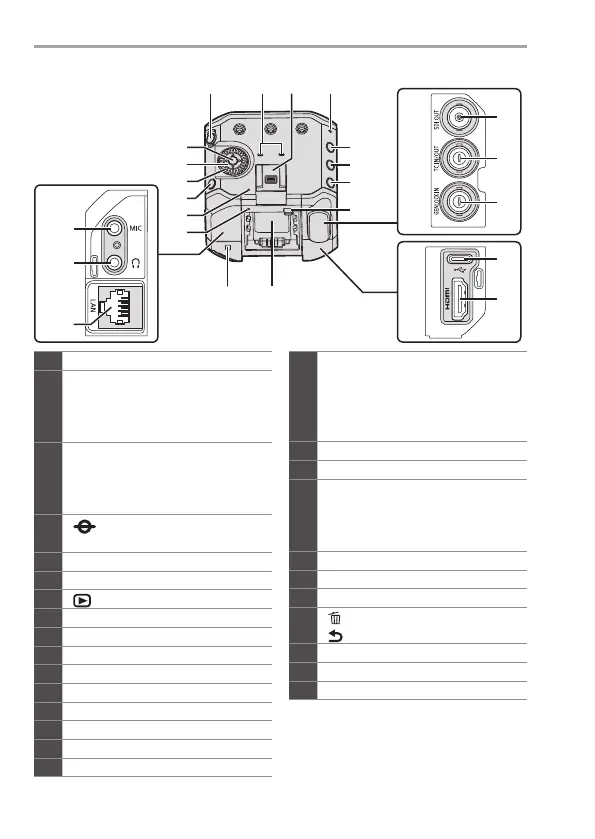

Names of Parts
25
Video rec. button
26
Stereo microphone
• Do not block the microphone
with a finger. Audio will be
difficult to record.
27
Hot shoe (hot shoe cover)
• Keep the hot shoe cover out
of reach of children to prevent
swallowing.
28
[ ] (Recording distance
reference mark)
29
Fn button (Fn1)
30
[Q.MENU] button
31
[ ] (Playback) button
32
Battery release button
33
BNC terminal cover
34
[SDI OUT] terminal
35
[TC IN/OUT] terminal
36
[GENLOCK IN] terminal
37
HDMI terminal cover
38
[USB] terminal
39
[HDMI] terminal
40
Battery attachment part
41
Security Slot
• Attaching anti-theft equipment
can prevent theft. We are not
liable for damages that may
occur resulting from theft.
42
AUDIO terminal cover
43
[MIC] terminal
44
Headphone terminal
• Excessive sound pressure from
earphones and headphones can
cause hearing loss.
45
[LAN] terminal
46
Rear tally lamp
47
[NETWORK] connection lamp
48
[ ] (Delete) button /
[
] (Cancel) button
49
Control dial
50
Cursor buttons
51
[MENU/SET] button
25 26 27 28
29
30
31
32
33
34
35
36
37
38
39
4041
42
43
44
45
46
47
48
49
50
51
