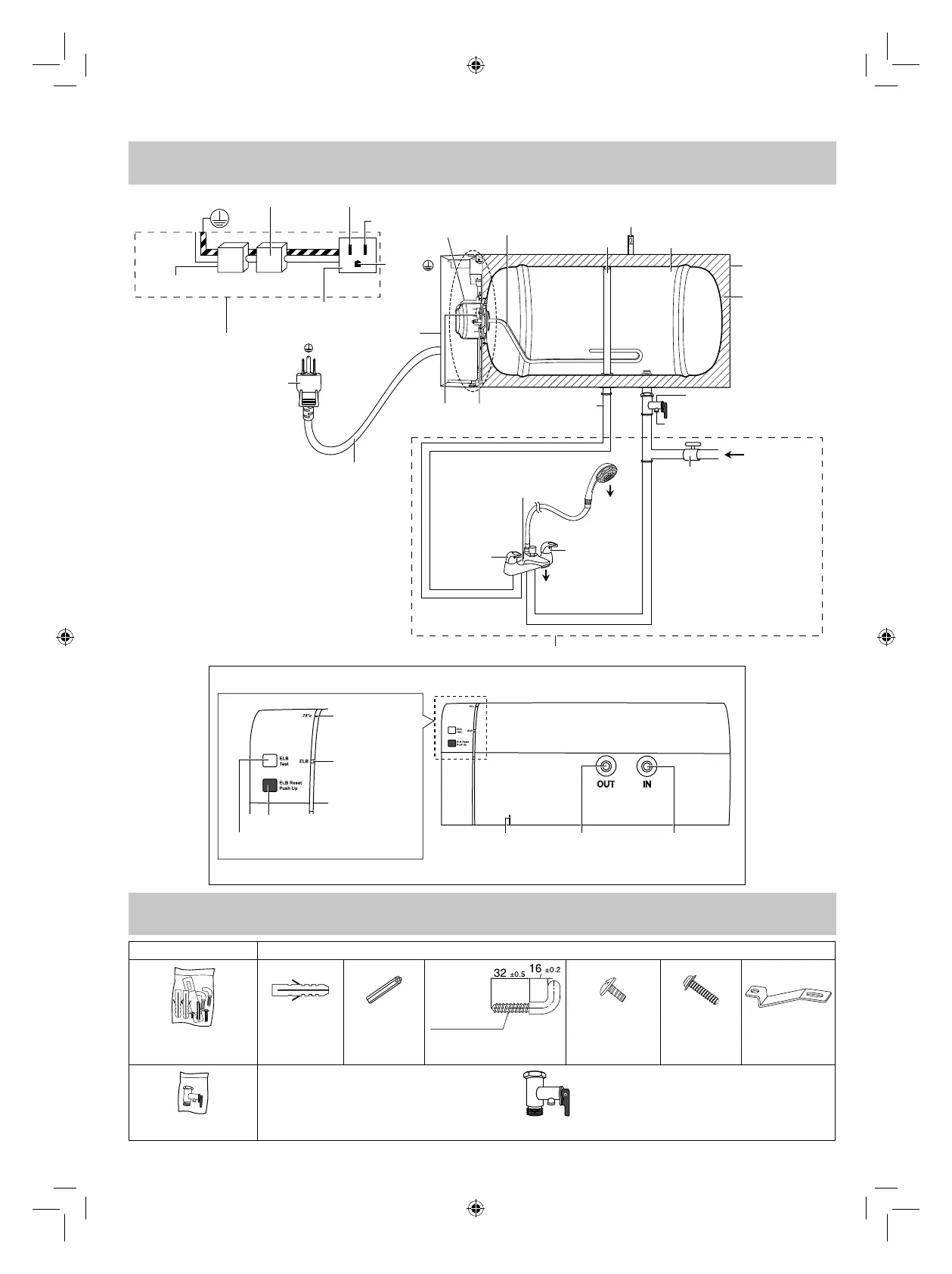

PARTS IDENTIFICATION
Miniature Circuit Breaker (MCB)
ON/OFF DP (Double Pole) Switch
Plug*
Earth
Earth(
)
NL
Live (L)
Neutral (N)
Parts not included
Water Inlet
Main Water Valve
Mixer Tap
Water
Outlet
Cold Water
Faucet
Hot Water
Faucet
Water
Outlet
Heater
Hot Outlet Pipe
Parts not included
Storage Tank
Safety Hook
Enclosure
Insulation
Safety Valve
Drain Valve End
Hot Water
Outlet
Auto
Thermostat
Double Pole
Thermostat
Side Cover
Power Outlet*
Power Cord
Electrical
Enclosure
* Make sure the Power Outlet and Plug are not
in contact with water.
View from the bottom
InletOutletMarking Emboss
(Refer to "HOW TO
INSTALL" at page EN9)
ELB Test Button
75
˚C LED
ELB LED
ELB Reset Knob
ACCESSORIES
Description Items
(Ø10 × 50) mm
(Ø6 × 25) mm
(M4 × 7.5) mm
(M4 × 20) mm
Installation Packing
Wall Plug A
(2 pcs)
Wall Plug B
(1 pc)
Wall Hook
(2 pcs)
Screw A
(1 pc)
Screw B
(1 pc)
Safety Hook
(1 pc)
Safety Valve Packing Safety Valve (1 pc)
SCREW THREAD
M8
