9
RQT7392
Getting started

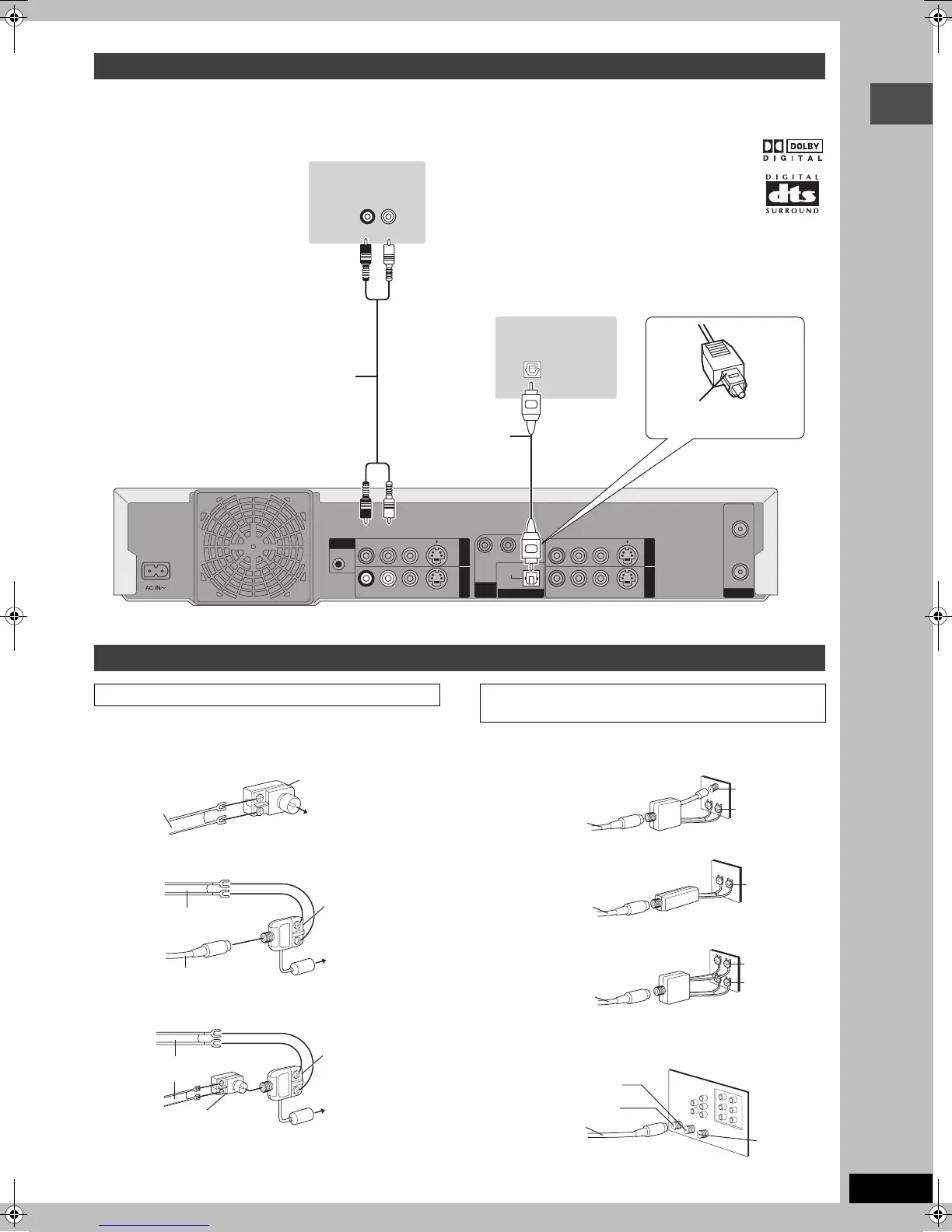

∫ Connection to a stereo amplifier ∫ To enjoy multi-channel surround sound on
DVD-Video
Use one of the following connections to suit the antenna lead.
≥If your television has both lead and coaxial VHF terminals, use
the lead connection to minimize signal loss.
∫ A single twin lead
∫ A twin lead and a coaxial cable
∫ Two twin leads
Use one of the following connections to suit the antenna terminals
on your television. Refer to the television’s operating instructions.
∫ A twin lead and coaxial plug terminal
∫ A twin lead terminal
∫ Two twin lead terminals
∫ Multiple antenna terminals
≥Connect to one of the ANT terminals, then change the television’s
settings as necessary.
Connecting an amplifier or system component
If the antenna connector doesn’t match
YPB PR
R - AUDIO - L
VIDEO S-VIDEO
R - AUDIO - L VIDEO S-VIDEO
OPTICAL
G-LINK
(L1)
(L3)
COMPONENT
VIDEO OUT
(480P/480I)
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
IN1
IN3
R - AUDIO - L
VIDEO S-VIDEO
R - AUDIO - L
VIDEO S-VIDEO
OUT1 OUT2
VHF/UHF
RF IN
RF OUT
OPTICAL IN
AUDIO IN
R L
Optical digital audio
cable
Do not bend sharply
when connecting.
Insert fully, with this
side facing up.
Audio cable
This unit
Red White
Red White
Connect an amplifier with a built-in decoder
displaying these logo marks using an optical digital
audio cable and change the settings in “Digital Audio
Output” (➡ page 49).
≥You cannot use DTS Digital Surround decoders not suited to
DVD.
≥Even if using this connection, output will be only 2 channels when
playing DVD-Audio.
Amplifier’s rear panel
Amplifier’s rear panel
To OUT1 or OUT2
Other antenna connections to the unit
300–75 ≠ transformer
from the antenna
(Flat) Twin lead
300 ≠ cable
To this unit’s RF IN
terminal
from the antenna
(Flat) Twin lead 300 ≠ cable
To this unit’s RF IN
terminal
(Round)
75 ≠ coaxial cable
VHF/UHF band mixer
from the antenna
To this unit’s RF
IN terminal
300–75 ≠ transformer
(Flat) Twin lead
300 ≠ cable
VHF/UHF band mixer
Other antenna connections from the unit to the
television
VHF/UHF band separator
Telev is ion
75 ≠ coaxial cable
VHF
UHF
75 ≠ coaxial cable
75–300 ≠ transformer
Television
VHF or
UHF
75 ≠ coaxial cable
VHF/UHF band separator
Television
VHF
UHF
ANT 2
ANT 1
Split out
Te lev is io n
75 ≠ coaxial cable
7392en.book 9 ページ ２００４年４月２７日 火曜日 午後５時３０分
