RQT9059

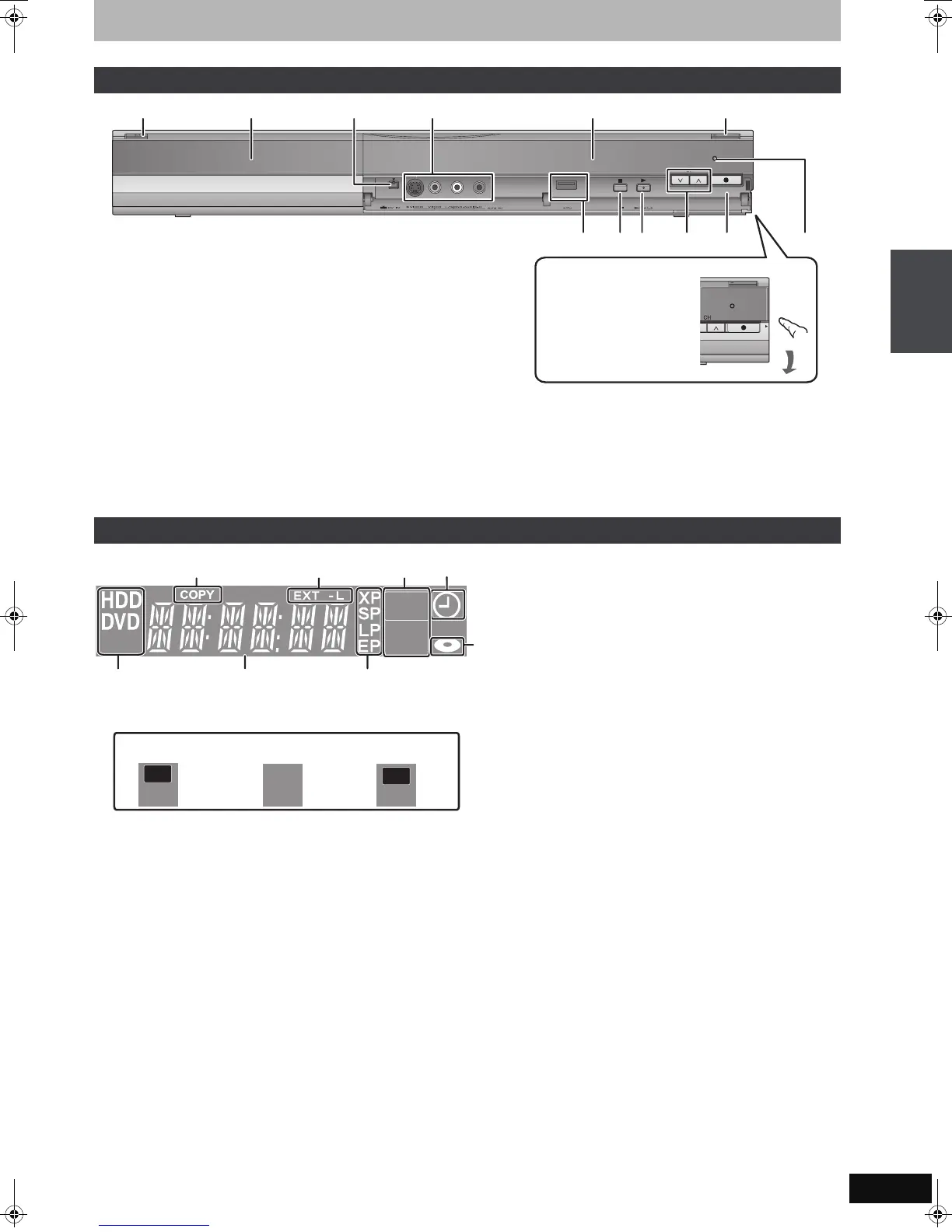

1Standby/on switch (Í/I) (➡ 8)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
2Disc tray (➡ 14)
3Connection for digital video (DV) camcorder (➡ 25)
4Connection for VCR, camcorder etc. (➡ 25, 67)
5Display (➡ below)
6Open/close disc tray (➡ 14)
7USB port (➡ 14)
8Stop (➡ 18, 30)
9Start play (➡ 17)
:Channel select (➡ 18)
;Start recording (➡ 18)/Specify a time to stop recording (➡ 18)
<Remote control signal sensor
Rear panel terminals (➡ 6, 7, 67, 68, 69)
4Timer recording indicator
5Disc indicator
6Drive [HDD or DVD] indicator
7Main display section indicator
8Recording mode indicator
≥Indicators for functions that this unit does not support will not light.
Main unit
OPEN
/
CLOSE
REC
OPEN
/
CLOSE
REC
Pull to flip down the front
panel.
The unit’s display
PLAY
PLAY
PLAY
REC
REC
REC
1 Copying indicator
2 Linked timer recordings with external equipment indicator
Recording indicator Playback
indicator
Recording/Playback
indicator
3
Control reference guide
