Panasonic Diga DMR-EX773EB - The Units Display; Rear Panel

VQT2J34
9

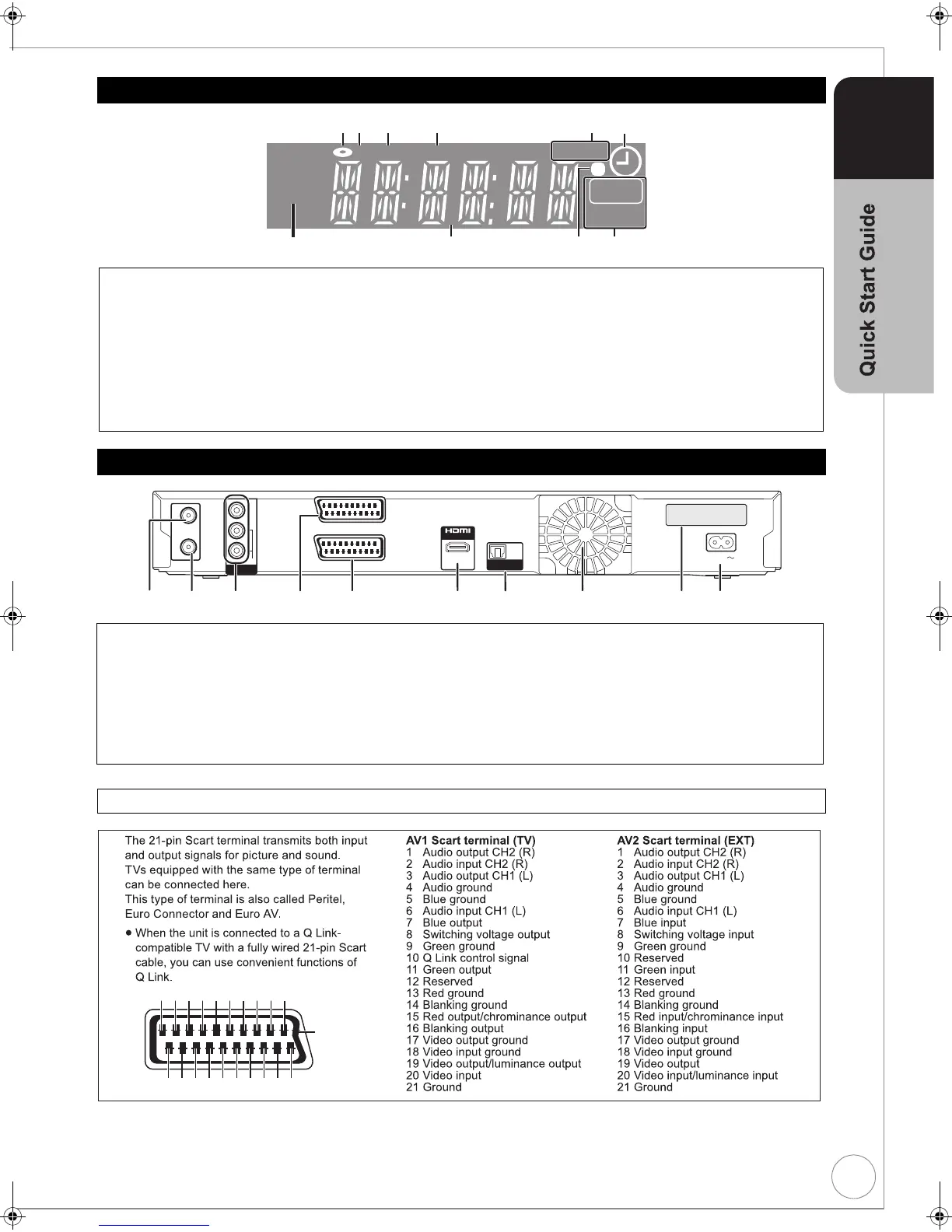

STEP 1
The Unit’s Display
HDD
HDD
DVD
DVD
REC
PLAY
COPY D USB EXT
-L
 
 
1 Disc indicator
This indicator lights up when a disc is inserted.
2 Digital broadcast indicator
Lights when the unit is receiving digital broadcast.
3 Copying indicator
4 USB port indicator
5 Linked timer recordings with external equipment
indicator......................................................(> 28)
6 Timer recording indicator .......................... (> 22)
On:
When a Timer recording programme is registered
Flashes:
When the unit cannot go to Timer recording standby
7 Drive [HDD, DVD] indicator
8 Main display section
Current time/playback counter, various messages
9 Remote control visual feedback
This flashes when it is operated by the remote control.
: Recording/Playback indicator
Rear Panel
DMR-EX773EB-K
VQ7AA01002 R
SER. NO.
RF
IN
RF
OUT
AV1
(TV)
AV2
(EXT)
AC IN
AUDIO
VIDEO
L
R
OUT
(PCM/BITSTREAM)
DIGITAL AUDIO OUT
OPTICAL
AV OUT
    
1 Aerial input terminal ...................... (> 10, 11, 78)
2 Aerial output terminal .................... (> 10, 11, 78)
3 AUDIO/VIDEO output terminals.......... (> 78, 79)
4 AV1 (TV) 21-pin Scart terminal ..... (> 10, 11, 78)
TV set connection
5 AV2 (EXT) 21-pin Scart terminal.......... (> 11, 78)
Connection of an external unit
6 HDMI AV OUT terminal ....................... (> 12, 79)
Digital audio and video output terminal
7 Digital audio output terminal ......................(> 79)
8 Cooling fan
9 Serial number
: AC IN~ = Power supply
Connection for the AC mains lead
21-pin Scart terminal
1 3 5 7 9 11 13 15 17 19
2 4 6 8 10 12 14 16 18 20
21
