Panasonic Diga DMR-EX83 User Manual

73
VQT2J28
Setting menus
≥To enjoy multi-channel surround sound DVD-Video, connect an
amplifier with Dolby Digital, DTS and MPEG decoders.
“Digital Audio Output” in the Setup menu (> 68)
≥When this unit is connected to an amplifier with an optical digital
audio cable and connected to a television with an HDMI cable, you
can enjoy the highest quality of audio from the disc by setting
“Digital Audio Output” to “Optical Only” in the Setup menu (> 69).
In this case audio is only output from the amplifier not the
television.
≥Before purchasing an optical digital audio cable (not included),
check the terminal shape of the connected equipment.
≥You cannot use DTS Digital Surround decoders not suited to DVD.
≥Connect to terminals of the same colour.
Information about the Decoder is for France, Italy, Spain and Switzerland only.

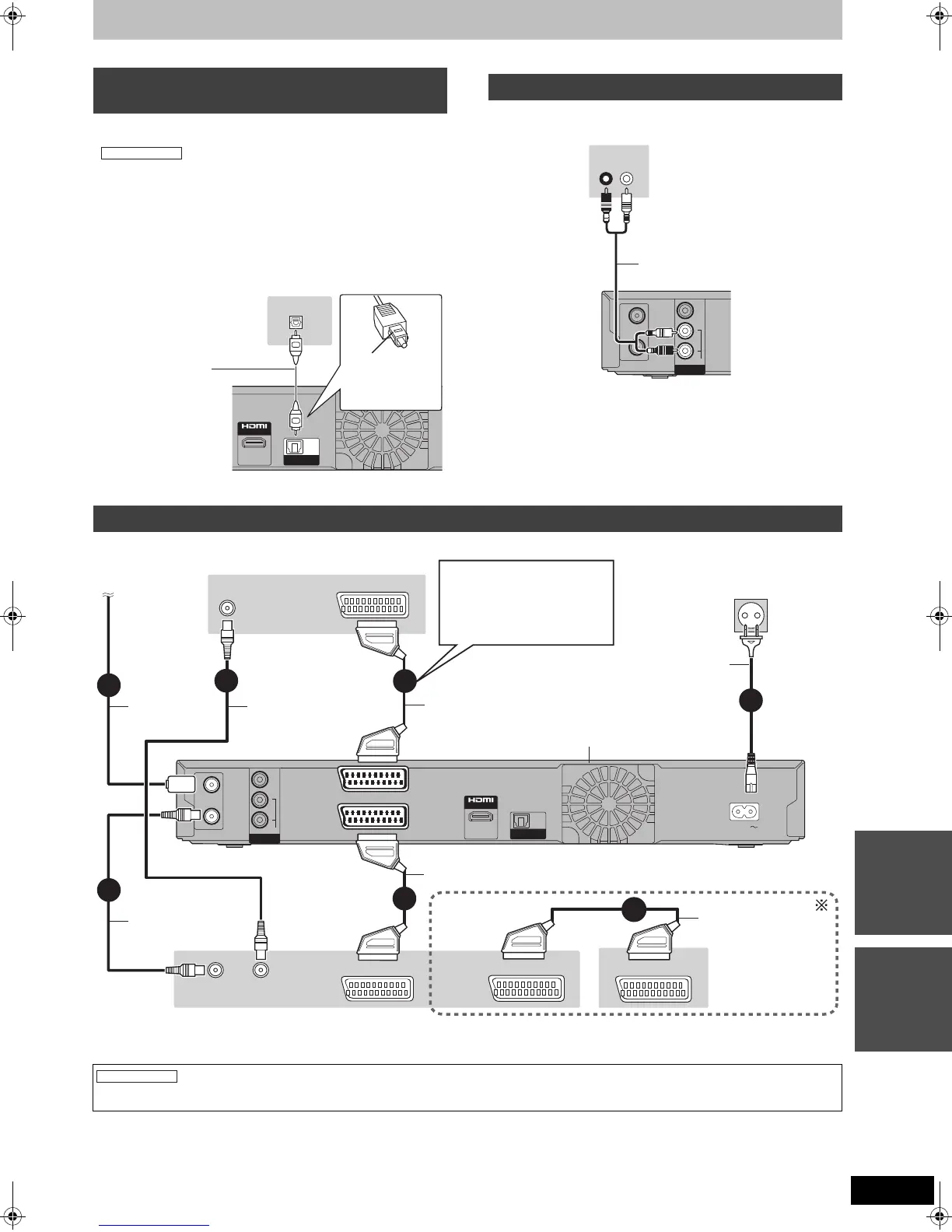

Connecting an amplifier with a digital
input terminal
Required setting
(PCM/BITSTREAM)
DIGITAL AUDIO OUT
OPTICAL
AV OUT
OPTICAL IN
Optical digital audio
cable
Do not bend sharply
when connecting.
This unit’s rear panel
Insert fully, with
this side facing
up.
Amplifier’s rear panel
Connecting a stereo amplifier
Reference
RF
IN
RF
OUT
AUDIO
VIDEO
L
R
OUT
AUDIO IN
R L
Audio cable
This unit’s rear panel
Amplifier’s rear panel
Connecting a television and VCR, digital satellite receiver or analogue decoder
§
Only when connecting digital satellite receiver or analogue decoder with this unit
“AV2 Connection ([For[France,[Italy,[Spain[and[Switzerland])” and “AV2 Input” settings in the Setup menu (> 70)
Connect the unit directly to the television (> 8, [B])
RF
IN
RF
OUT
AV1
(TV)
AV2
(EXT)
AC IN
AUDIO
VIDEO
L
R
OUT
(PCM/BITSTREAM)
DIGITAL AUDIO OUT
OPTICAL
AV OUT
3
AV
VHF/UHF
RF IN
VHF/UHF
RF IN
AV
6
RF OUT
7
5
1
2
AV
AV
4
To the aerial
Aerial cable
RF coaxial cable
This unit’s rear panel
To household mains socket
(AC 220 to 240 V, 50 Hz)
Fully wired 21-pin
Scart cable
AC mains lead
(included)
Connect only after all other
connections are complete.
21-pin Scart cable
RF coaxial cable
(included)
Cooling fan
Connecting a terminal
other than the 21-pin
Scart terminal (> 9, 72)
Television’s rear panel
VCR’s rear panel
Digital satellite
receiver or analogue
decoder’s rear panel
21-pin Scart
cable
Required setting
DMREX83EG&EC-VQT2J28_eng.book 73 ページ ２０１０年１月１８日 月曜日 午後２時２９分
