Quick Start
Guide
You can enjoy high-quality picture by adding the HDMI cable connection to the 21-pin Scart cable connection between this unit and your TV.
When connected to an HDMI compatible unit, an uncompressed digital audio and video signal is transmitted. You can enjoy high quality, digital
video and audio with just one cord. When connecting to an HDMI-compatible HDTV (High Definition Television), the output can be switched to
1080p, 1080i or 720p HD video.
≥This unit incorporates HDMI
TM
(V.1.3a with Deep Colour) technology.
≥Video sources converted to 1920k1080 resolution, while of high quality, will exhibit somewhat lower subjective image resolution than true,
native 1080p full-HD sources. See dealer for details.
≥Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover).
≥When setting video output to “1080p”, please use the HDMI cables 5.0 meters or less.
≥If you are connecting to a TV that is only compatible with 2 channel audio output, audio with 3 channels or more will be down mixed (> 85) and
output as 2 channels, even if connecting with an HDMI cable. (Some discs cannot be down mixed.)
≥You cannot connect this unit to DVI devices that are incompatible with HDCP.
For units compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection that are equipped with a digital DVI input
terminal (PC monitors, etc.):
Depending on the unit, images may not be displayed properly or at all when connecting with a DVI/HDMI switching cable. (Audio cannot be
output.)

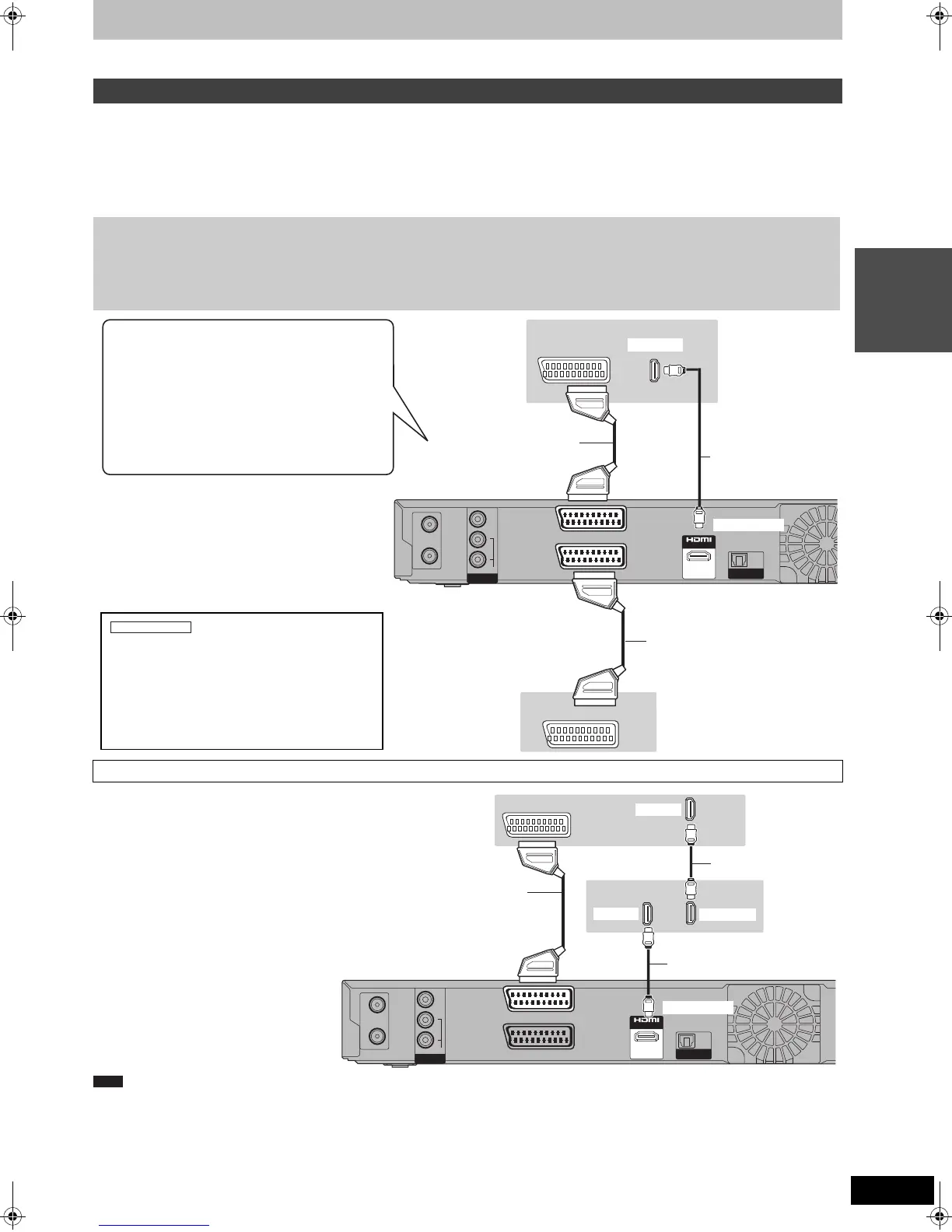

Connecting to a TV with an HDMI (High Definition Multimedia Interface) cable
Regarding VIERA Link “HDAVI Control
TM
” function
When connecting with a Panasonic TV (VIERA) or a receiver equipped with the “HDAVI Control” function, linked operations would be possible.
[> 40, Linked operations with the TV (VIERA Link “HDAVI Control
TM
”/Q Link)]
≥Non-HDMI-compliant cables cannot be utilised.
≥It is recommended that you use Panasonic’s HDMI cable.
Recommended part number:
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.
Connecting with an HDMI compatible television and receiver
RF
IN
RF
OUT
AV1
(TV)
AV2
(EXT)
AUDIO
VIDEO
L
R
OUT
(PCM/BITSTREAM)
DIGITAL AUDIO OUT
OPTICAL
AV OUT
AV
AV
HDMI IN
HDMI AV OUT
Fully wired
21-pin Scart cable
21-pin Scart cable
This unit’s rear panel
HDMI cable
Television’s rear
panel
Connecting with a Panasonic TV (VIERA)
If the 21-pin Scart cable is connected, the following
functions are available.
≥Download from the TV (> 40)
≥Direct TV Recording (> 40)
(In this case, make sure to switch the television
input to “AV”.)
≥Watching pictures from digital satellite receiver or
analogue decoder
§
≥Set “Digital Audio Output” to “HDMI and Optical”
(> 69).
(The default setting is “HDMI and Optical”.)
§
Information about the Decoder is for France, Italy,
Spain and Switzerland only.
Required setting
Digital satellite receiver or
analogue decoder’s
§
rear panel
RF
IN
RF
OUT
AV1
(TV)
AV2
(EXT)
AUDIO
VIDEO
L
R
OUT
(PCM/BITSTREAM)
DIGITAL AUDIO OUT
OPTICAL
AV OUT
HDMI AV OUT
HDMI IN
HDMI IN
HDMI OUT
AV
This unit’s rear panel
HDMI cable
HDMI cable
Fully wired
21-pin Scart cable
Television’s rear panel
Receiver’s rear panel
Note
