[Exhaust Air]

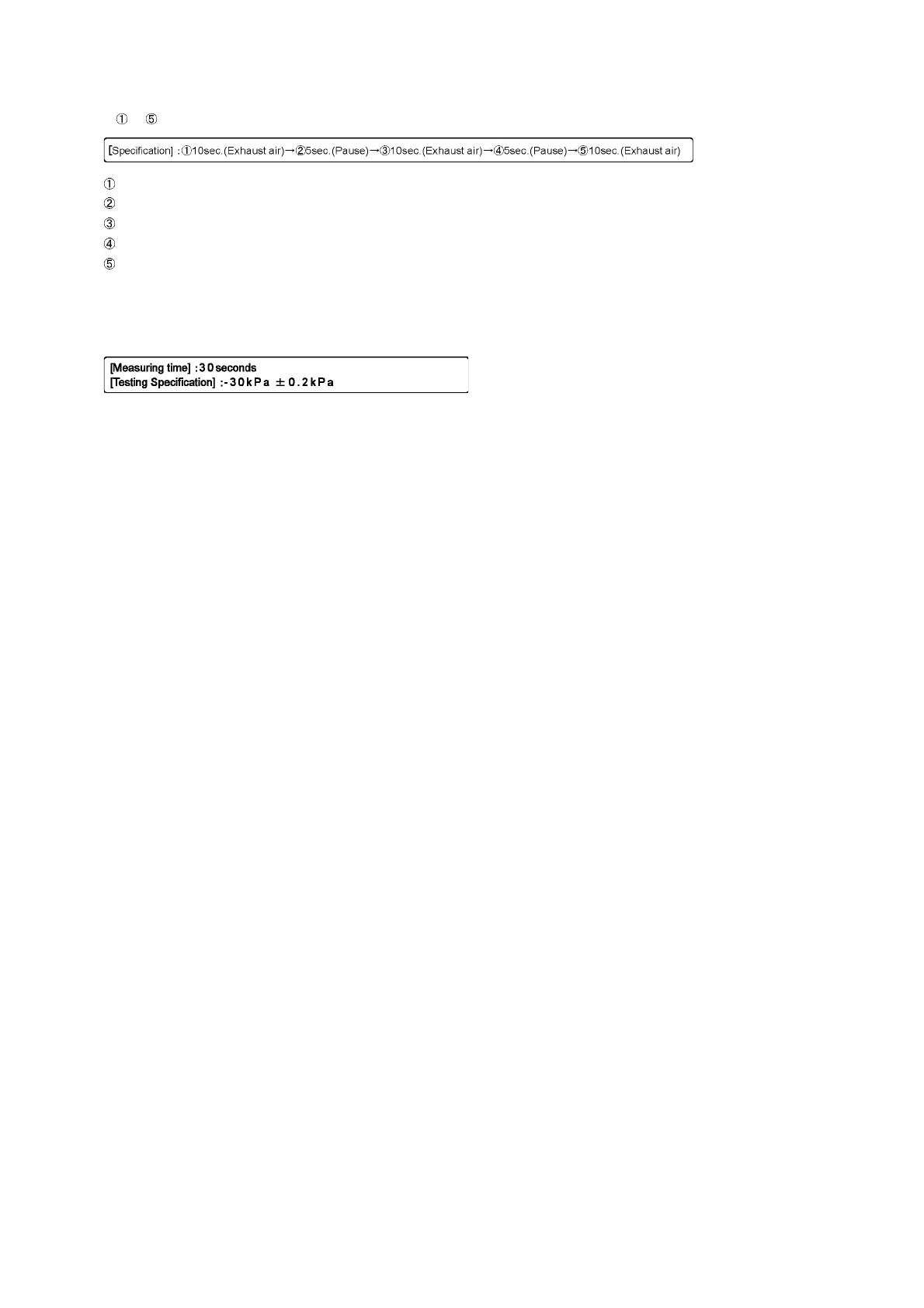

5. Operate the measurement switch of the air-leak tester to exhaust air inside the product with the specified exhaust
time.( to ).
Press the measurement switch to exhaust air for 10 seconds.(The vacuum pump activates.)
Press the measurement switch to pause for 5 seconds.
Press the measurement switch to exhaust air for 10 seconds.(The vacuum pump activates.)
Press the measurement switch to pause for 5 seconds.
Press the measurement switch to exhaust air for 10 seconds.(The vacuum pump activates.)
[Stand-by]
6. After a laps of 10 seconds, take a note (Record) that the pressure value indicated on the indication panel.
[Measurement]
7. Confirm that the pressure value fluctuations during measurement process are within the test specifications
The air-leak test is now completed.
3. Packing replacement record input:
• To enter the repair record, it is necessary to use the "DIAS" software. The maintenance software "DIAS" is available at "TSN
Website".
To download, click on "Support Information from NWBG/VDBG-AVC".
*DIAS (DSC Integrated Assist Software)
