36
8.2. When Replacing the Main P.C.B.
After replacing the MAIN P.C.B., be sure to achieve adjustment.
The Maintenance software (DIAS) is available at “software download” on the “Support Information from NWBG/VDBG-AVC” web-
site in “TSN system”.
8.3. Service Position
This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing.
Table S1 Extension Cable List

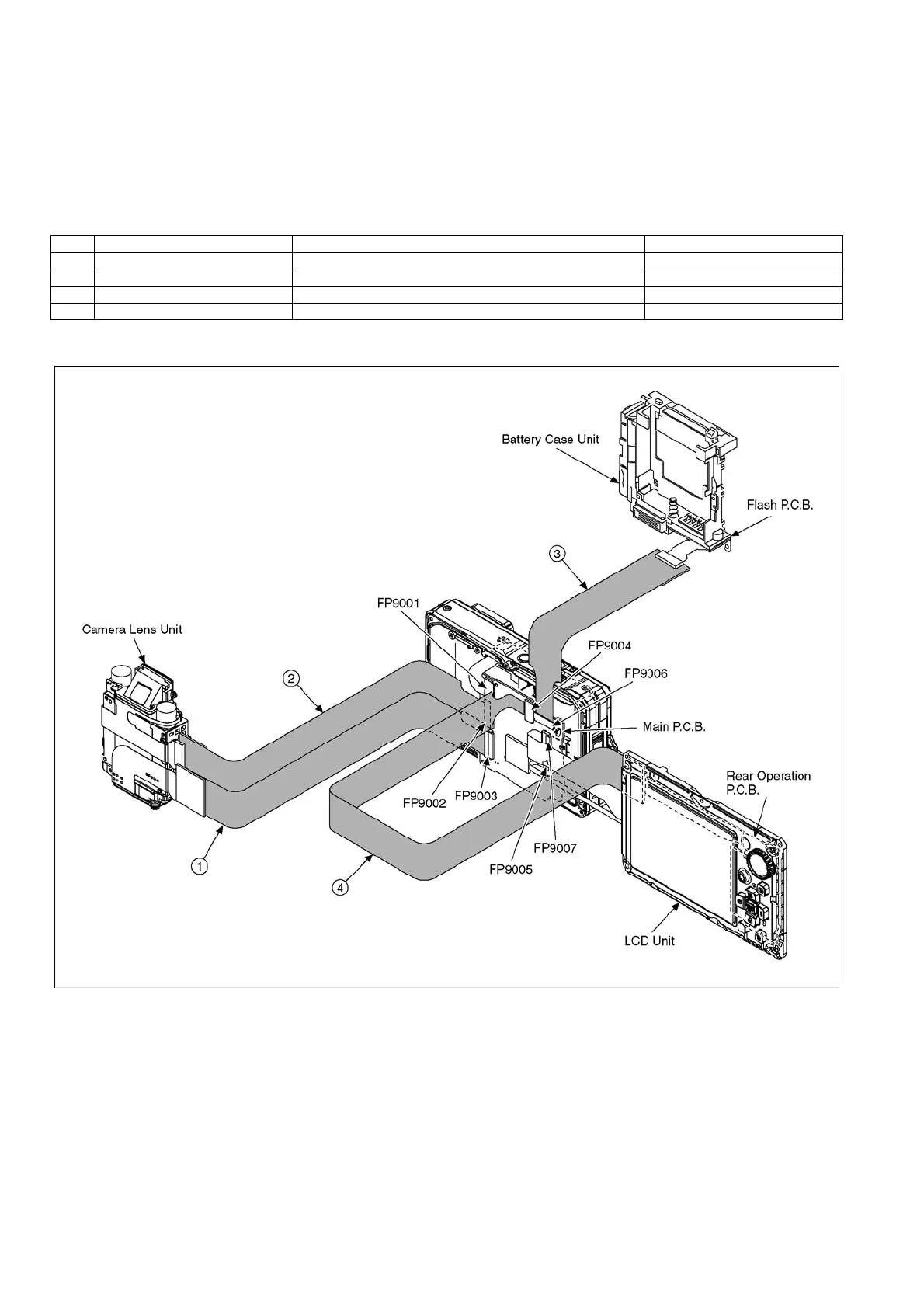

8.3.1. Extension Cable Connections
No. Parts No. Connection Form
1 RFKZ0477 FP9003 (Main P.C.B.) - Lens with CCD unit (CCD section) 45PIN 0.3 FFC
2 RFKZ0416 FP9002 (Main P.C.B.) - Lens with CCD unit (Lens section) 41PIN 0.3 FFC
3 RFKZ0363 FP9006 (Main P.C.B.) - FP8001 (Flash P.C.B.) 19PIN 0.5 FFC
4 VFK1364 FP9004 (Main P.C.B.) - Rear Operation P.C.B. 14PIN 0.5 FFC
To Next Page
