41

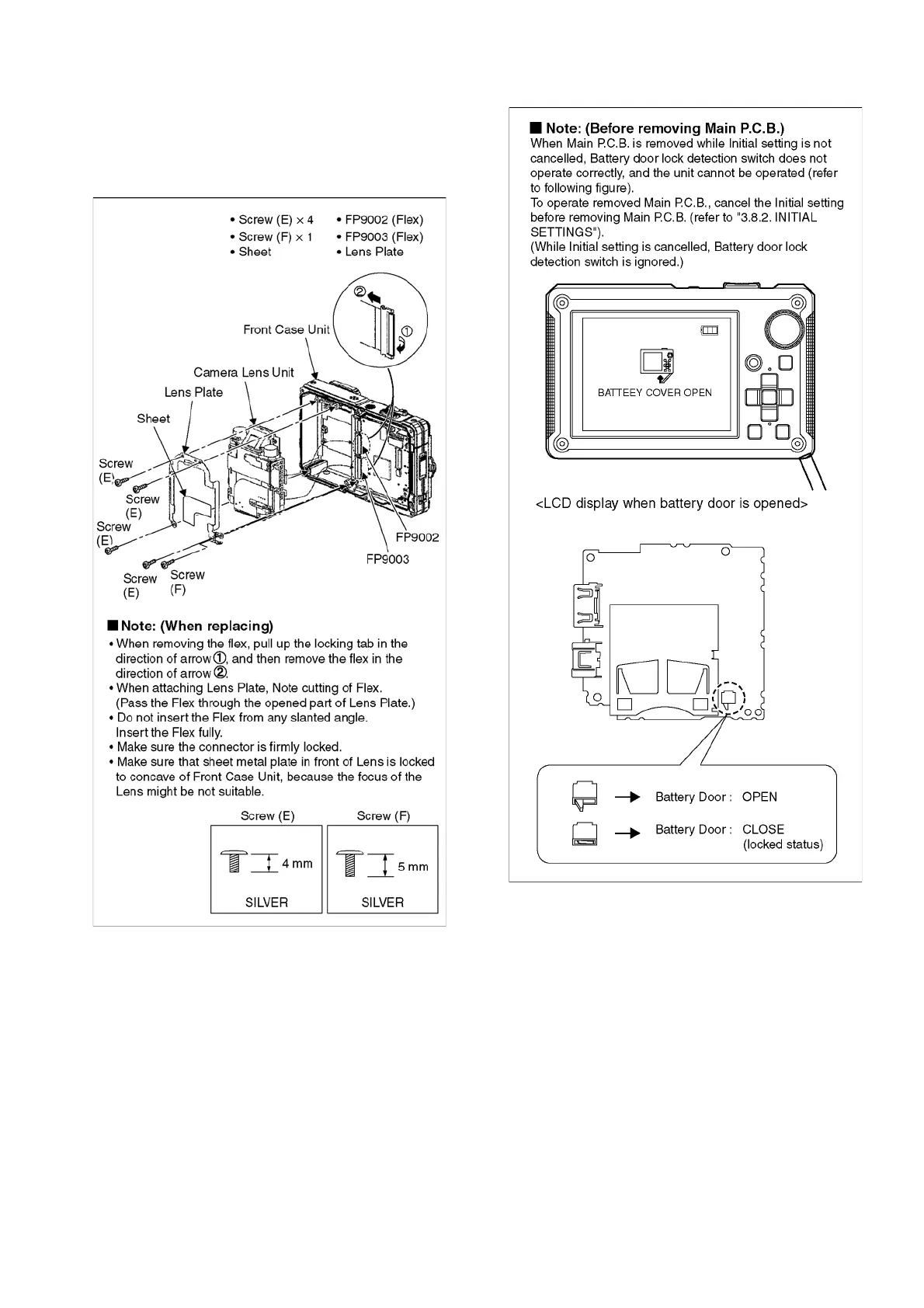

9.3.3. Removal of Camera Lens Unit
Note: (When Disassembling/Assembling)
1. When dust stuck, use air-Blower to blow off the dust.
2. Do not touch the surface of lens by your hand.
3. Use Lens Cleaning KIT; VFK1900BK (Only supplied as
10 set/Box) is available as Service Aid.
Fig. D4
9.3.4. Removal of Main P.C.B.
Fig. D5
To Next Page
