Panasonic DMC-GH3P - Service Position

41
8.3. Service Position

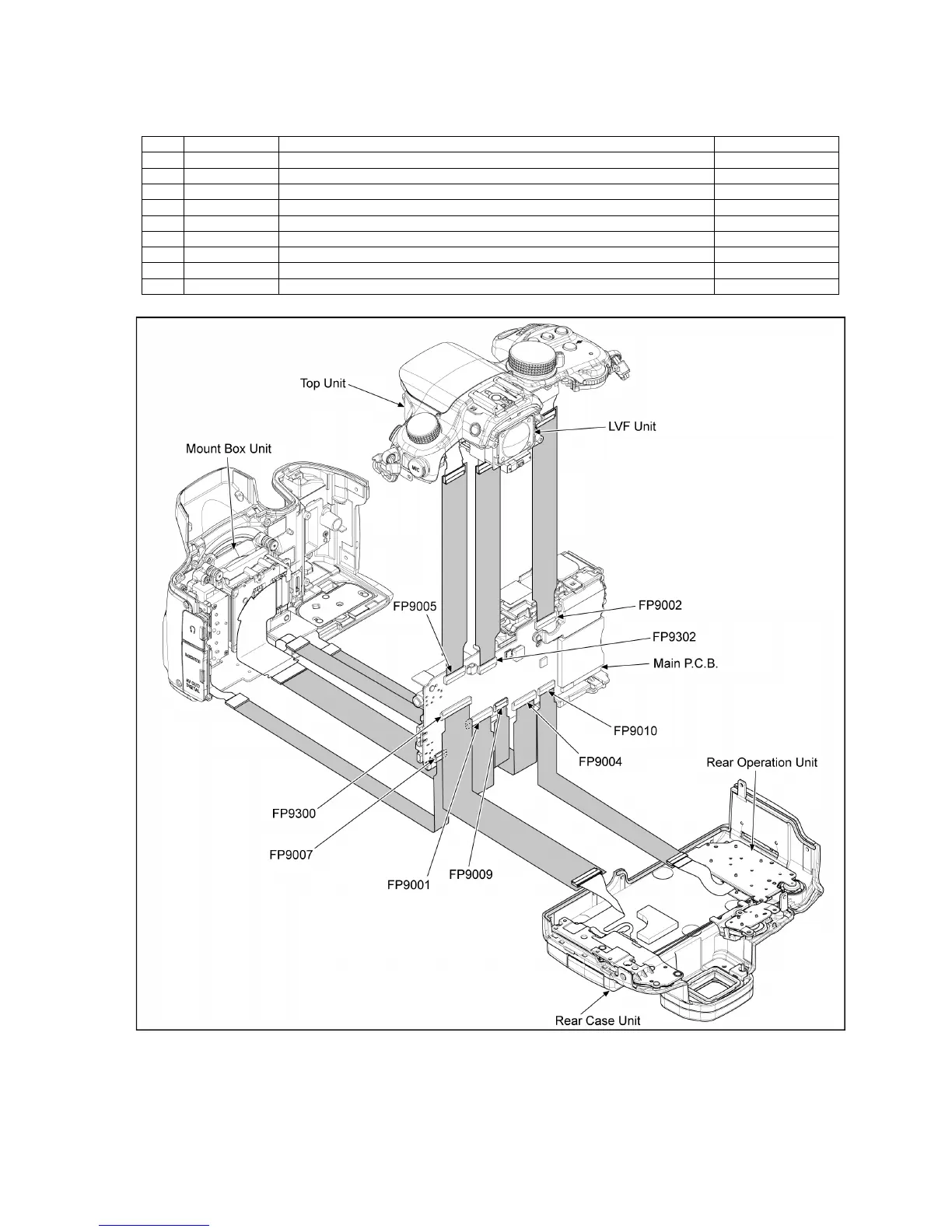

This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing.
Table S1 Extension Cable List
CAUTION-1. (When servicing CAPACITOR P.C.B. UNIT)
1. Be sure to discharge the E.capacitor on CAPACITOR P.C.B. UNIT.
Refer to “HOW TO DISCHARGE THE E.CAPACITOR ON CAPACITOR P.C.B. UNIT”.
The E.capacitor voltage is not lowered soon even if the AC Cord is unplugged or the battery is removed.
2. Be careful of the high voltage circuit on CAPACITOR P.C.B. UNIT.
3. DO NOT allow other parts to touch the high voltage circuit on CAPACITOR P.C.B. UNIT.
No. Parts No. Connection Form
1 VFK1951 FP9002(MAIN) - MAIN - FLASH FPC - FLASH P.C.B. 39pin/0.3mm FFC
2 RFKZ0619 FP9300(MAIN) - HINGE FPC - LCD IF P.C.B. / MR1 SW FPC UNIT 61pin/0.3mm FFC
3 RFKZ0583 FP9007(MAIN) - MOUNT BOX UNIT 19pin/0.3mm FFC
4 RFKZ0564 FP9009(MAIN) - MOUNT BOX UNIT 23pin/0.3mm FFC
5 VFK1443 FP9010(MAIN) - REAR OPERATION UNIT 18pin/0.5mm FFC
6 VFK2024 FP9001(MAIN) - MOUNT BOX UNIT 51pin/0.3mm FFC
7 RFKZ0477 FP9004(MAIN) - Wi-Fi BG FPC - Wi-Fi P.C.B. 45pin/0.3mm FFC
8 VFK1951 FP9005(MAIN) - TOP UNIT 39pin/0.3mm FFC
9 VFK1950 FP9302(MAIN) - LVF EYE FPC UNIT 33pin/0.3mm FFC
