9.3. Disassembly and Assembly Procedure for the Lens (H-VS014140)
It is recommended dealing with clean box, to keep maintaining the dustproof environment.
(Refer to “8.2. Clean Box”
section of this service manual for details.)
Important:
1. When servicing the enclosure part (refer to Fig. K1), it must be performed inside of specified clean level.
(Specified clean level: Less than class 10,000 (Federal Standard 209D))
As for procedure, refer to the “11 Maintenance” for details.
2. To minimize the possibilities/risk of getting the dust/dirt on the lens surface, keep covering the lens unit with lens caps (front &
rear), other than necessary cases.
3. Do not touch the surface of the lens glasses with your fingers.
4. Blow off the dust on the surface of the lens with a blower brush.
5. Use lens cleaning KIT (BK)(VFK1900BK).

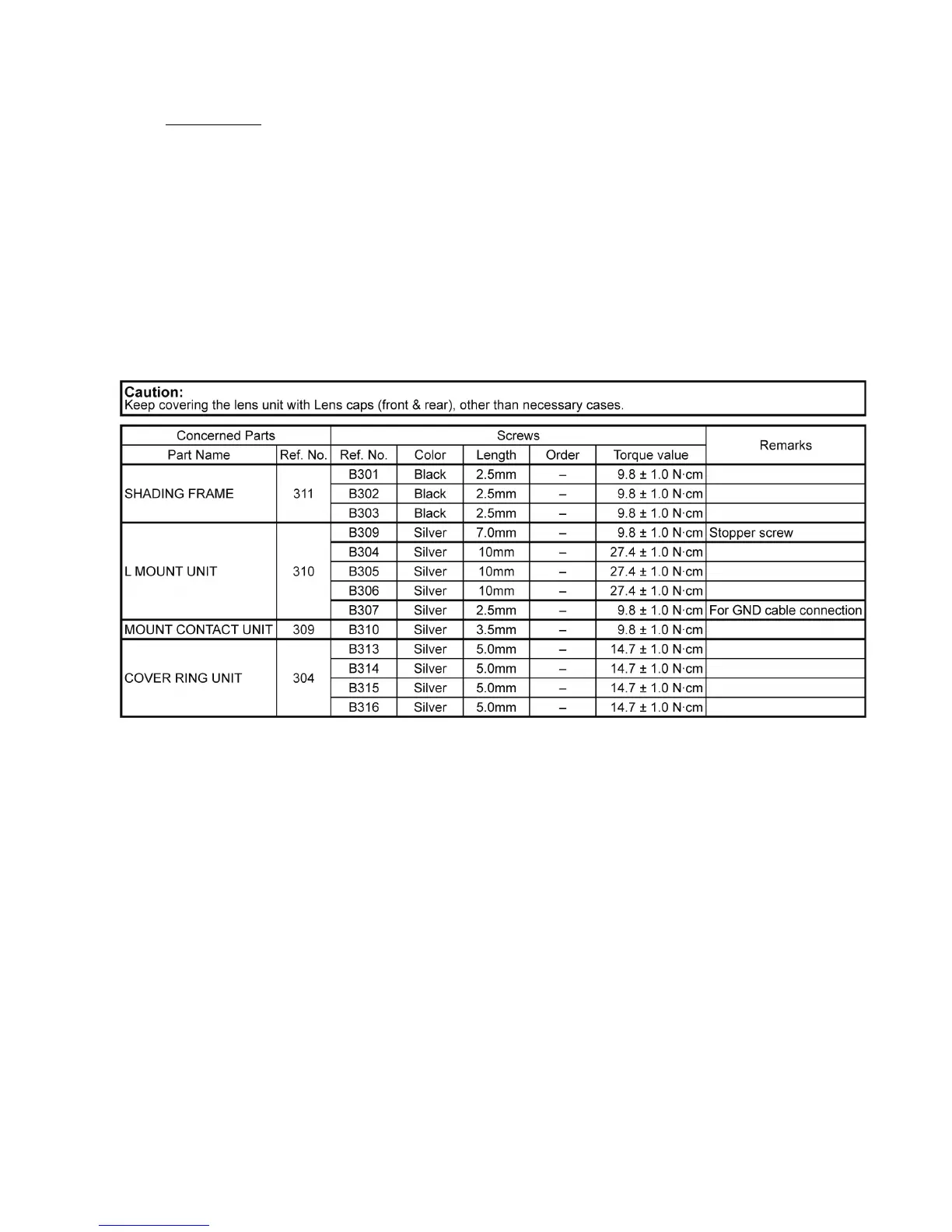

Proceed disassemble/assemble, by referring the following table and Fig. K1.
NOTE:
1. When installing the screws, be sure to use the torque driver (RFKZ0456) and tighten the screws with specified torque, men-
tioned on the above table.
To Next Page
