42
9 Disassembly and Assembly Instructions
9.1. Camera Body Part

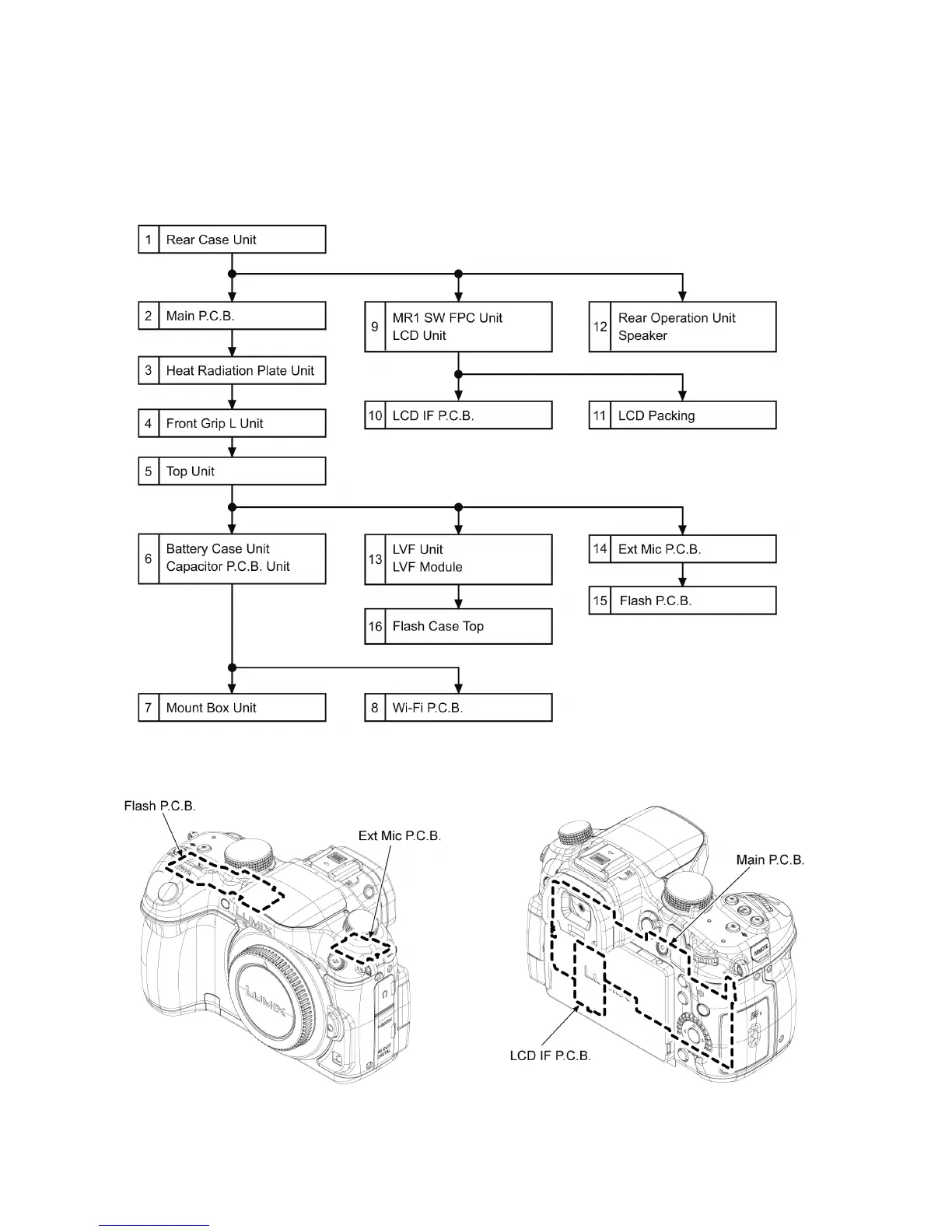

9.1.1. Disassembly Flow Chart
This is a disassembling chart.
When assembling, perform this chart conversely.
9.1.2. P.C.B. Location
