54

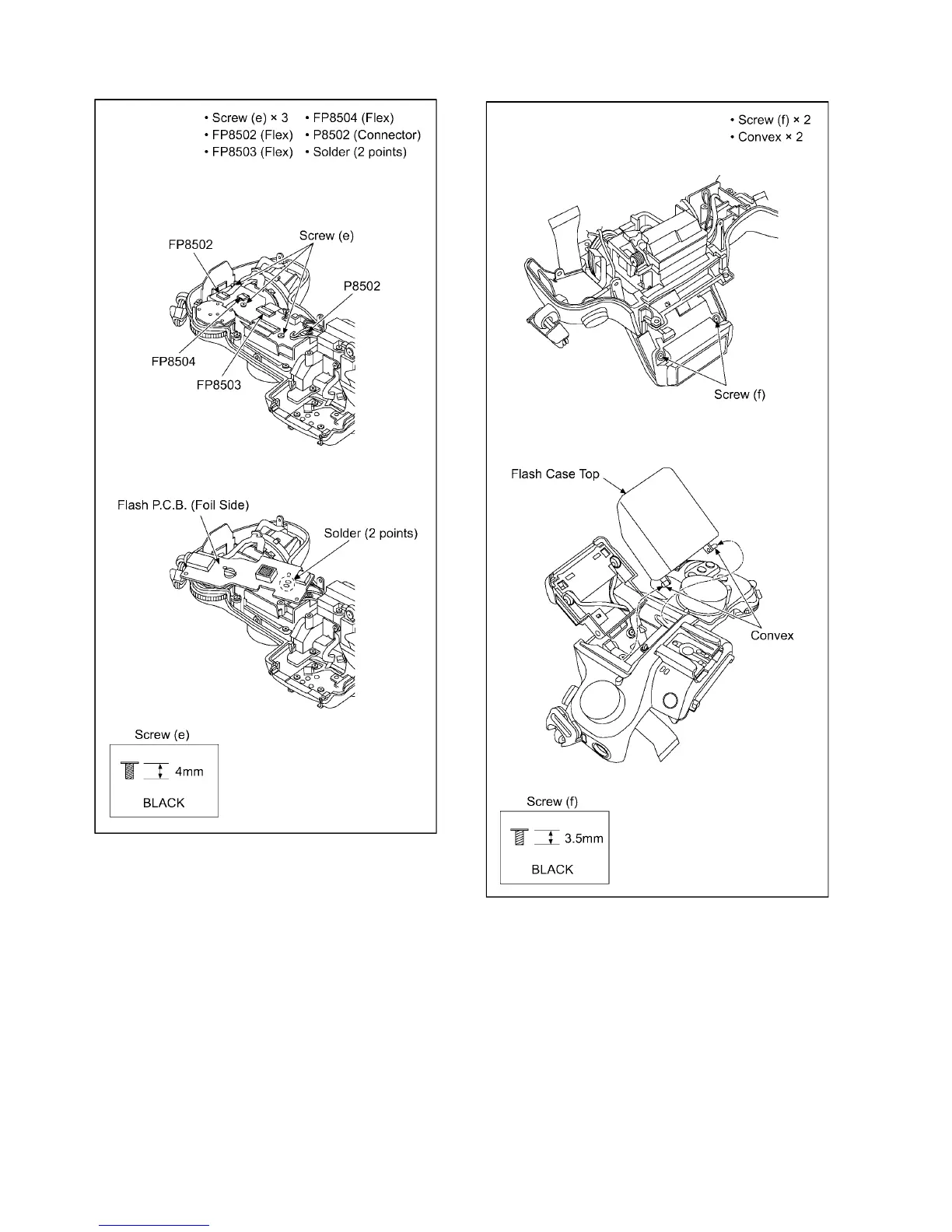

9.1.3.15. Removal of the Flash P.C.B.
(Fig. D24)
9.1.3.16. Removal of the Flash Case Top
(Fig. D25)
NOTE: (When Installing)
Make sure to confirm the following points when installing:
• The Screw is tightened enough.
• Installing conditions are fine. (No distortion, no abnormal-
space.)
• No dust and/or dirt on Lens surfaces.
• LCD image is fine. (No dust and dirt on it, and no gradient
images.)
To Next Page
