11.2.2. Disassembly procedure

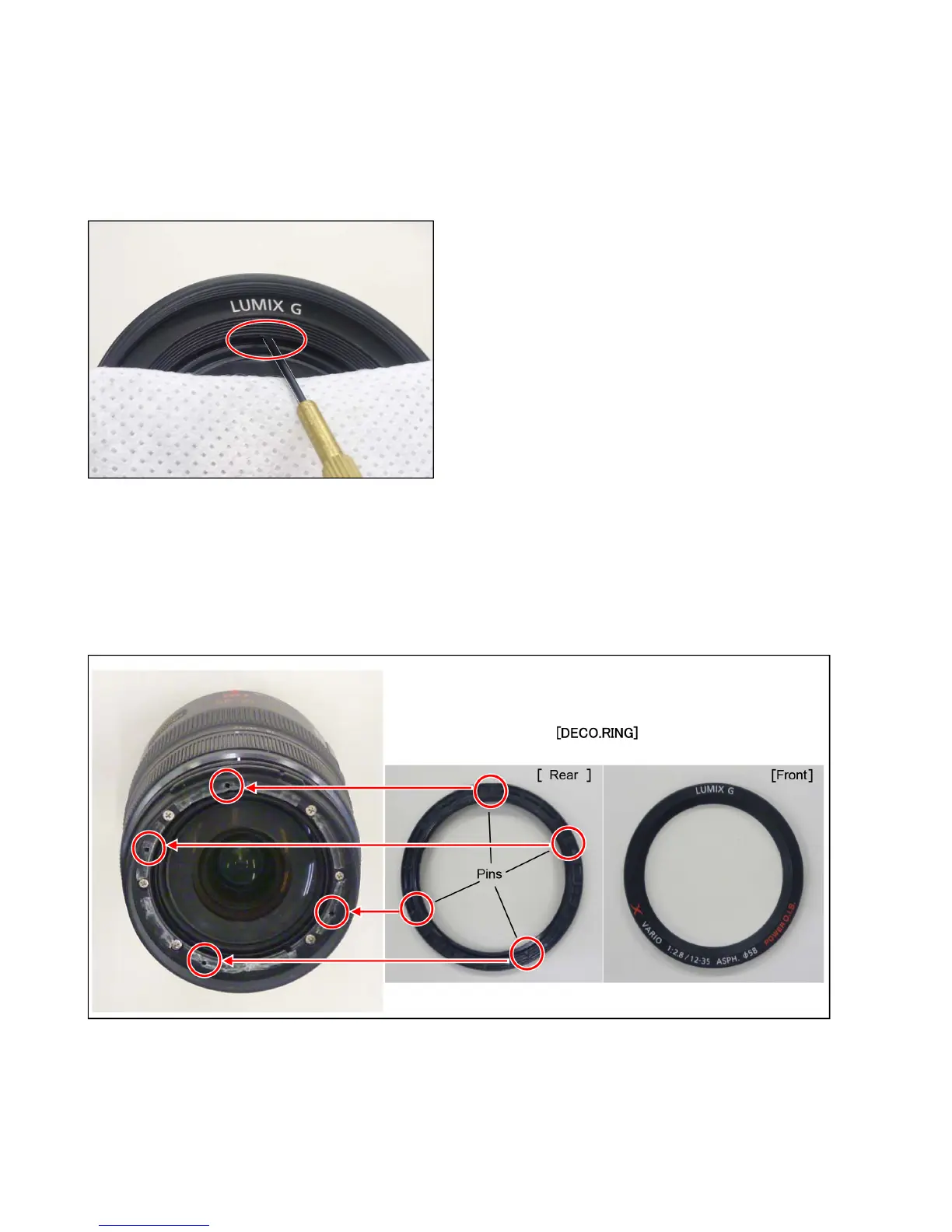

11.2.2.1. Removal of the DECO.RING
1. DECO.RING is stuck on the 1ST LENS FRAME UNIT.
2. It can be easy to remove the two-sided tape with sending hot air by hair dryer.
3. Put the sheet so that the lens glass is fully covered.
4. Insert the small flat blade screwdriver to Gap (between the decoration ring and lens glass), and peel off the DECO.RING gen-
tly.
11.2.3. Assembly procedure
11.2.3.1. Installation of the DECO.RING
1. Please insert the pins (four places) of the DECO.RING to the hole of the hood adapter.
• Use new one, do not use the one which is removed.
• Double-stick tape sticks to the DECO.RING of the repair part. Please remove the old double-stick tape from HOOD
ADAPTER.
2. After installing the DECO.RING, use a soft cloth to press it into place.
