- 9 -
Preparation

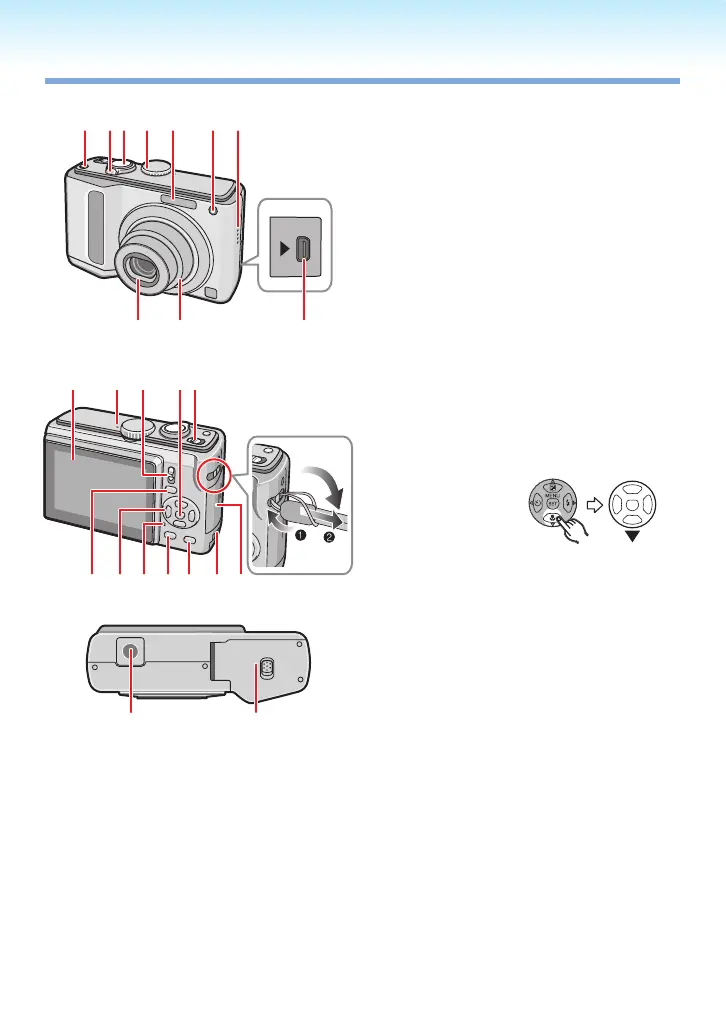

Names of the Components
AV OUT
DIGITAL
6
7 8
10
91 2 3 5
4
11 12 13
15
16 1817
14
20
22
23
19
21
[E. ZOOM] (Easy Zoom) button (P34)
Zoom lever (P33)
Shutter button (P27, 61)
Mode dial (P18)
Flash (P43)
Self-timer indicator (P47)
AF assist lamp (P77)
Lens part
Lens barrel
Speaker
1�
2�
3�
4�
5�
6�
7�
8�
9�
[AV OUT/DIGITAL] socket
(P100, 103, 107)
LCD monitor (P40, 109)
Microphone (P61)
Recording/playback switch (P18)
[MENU/SET] button (P17)
Camera ON/OFF switch (P17)
[EXPOSURE] button (P50)
Cursor buttons
w /Self-timer button (P47)
r /Macro button (P46)
q /Flash mode button (P43)
e /Exposure compensation (P48) /
Auto bracket (P49) /White balance
ne adjustment (P72) /Backlight
compensation (P29) button
In these operating instructions,
operations using the cursor buttons
are described as follows.
e.g.: When you
press the
r button.
Status indicator (P15, 22, 26)
[DISPLAY] button (P40)
[Q.MENU] (P67) /delete (P38) button
DC coupler door (P100, 103, 108)
Card door (P15)
Strap eyelet
Attach the strap when using the
camera to prevent it from dropping.
Tripod receptacle
When you use a tripod, make sure
the tripod is stable with the camera
attached to it.
Battery door (P15)
10�
11�
12�
13�
14�
15�
16�
17�
•
18�
19�
20�
21�
22�
23�
•
24�
•
25�
