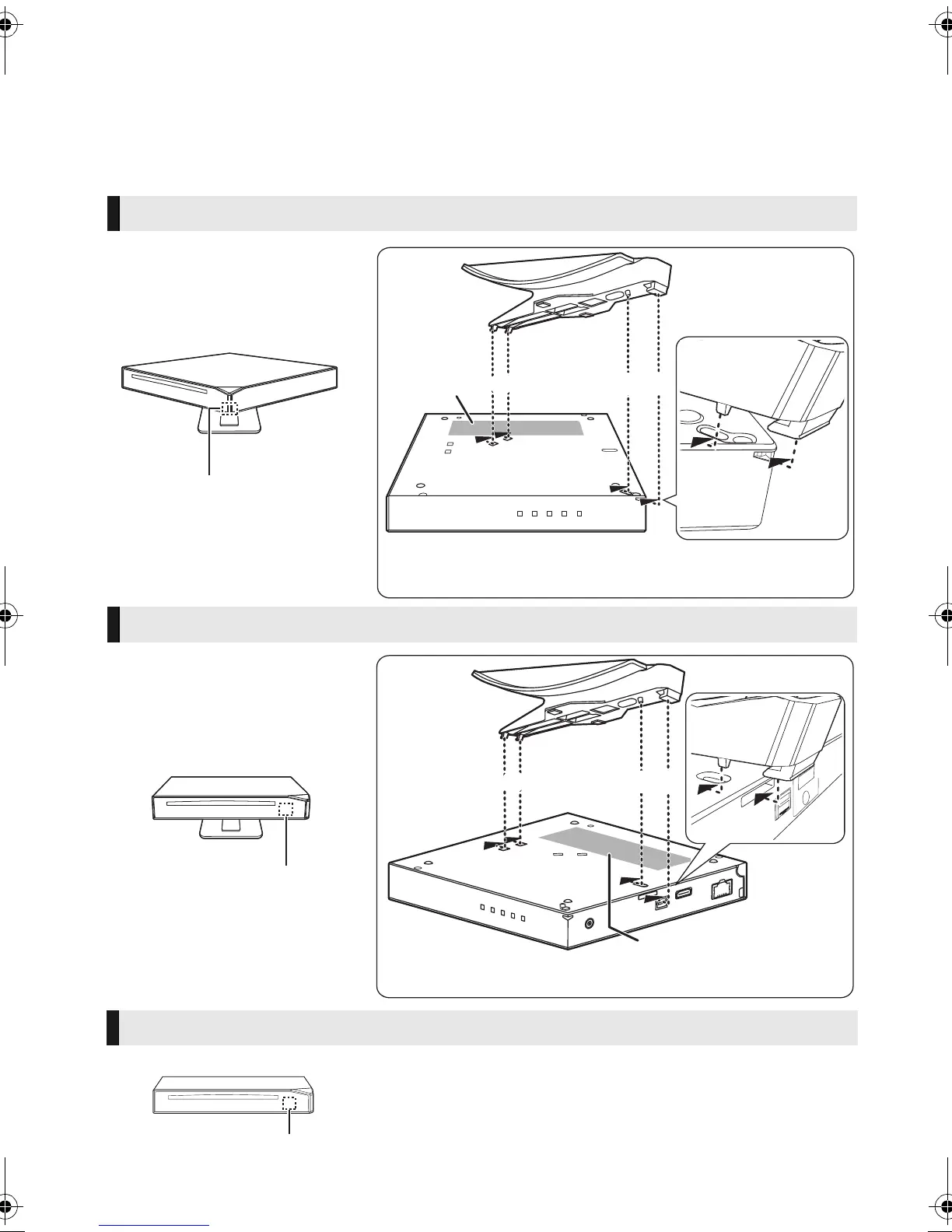

STEP 1 : Installing the Unit
The unit can be installed in following four ways.
≥ Use the pedestal supplied with the unit.
≥ Beware of tipping or falling of the main unit when connecting the cables after installation.
≥ The remote control signal sensor that will operate will change depending on the installation, so please
note this when pointing the remote control at the unit.
Horizontal diagonal installation with pedestal

Label on the
bottom
Remote control signal sensor
≥ Secure the pedestal by fitting it in the direction of the arrows.
Horizontal installation with pedestal

Remote control signal sensor
≥ Secure the pedestal by fitting it in the direction of the arrows.
Label on the bottom
Horizontal installation with no pedestal
Remote control signal sensor
