Panasonic EP1273-U1 - Page 14

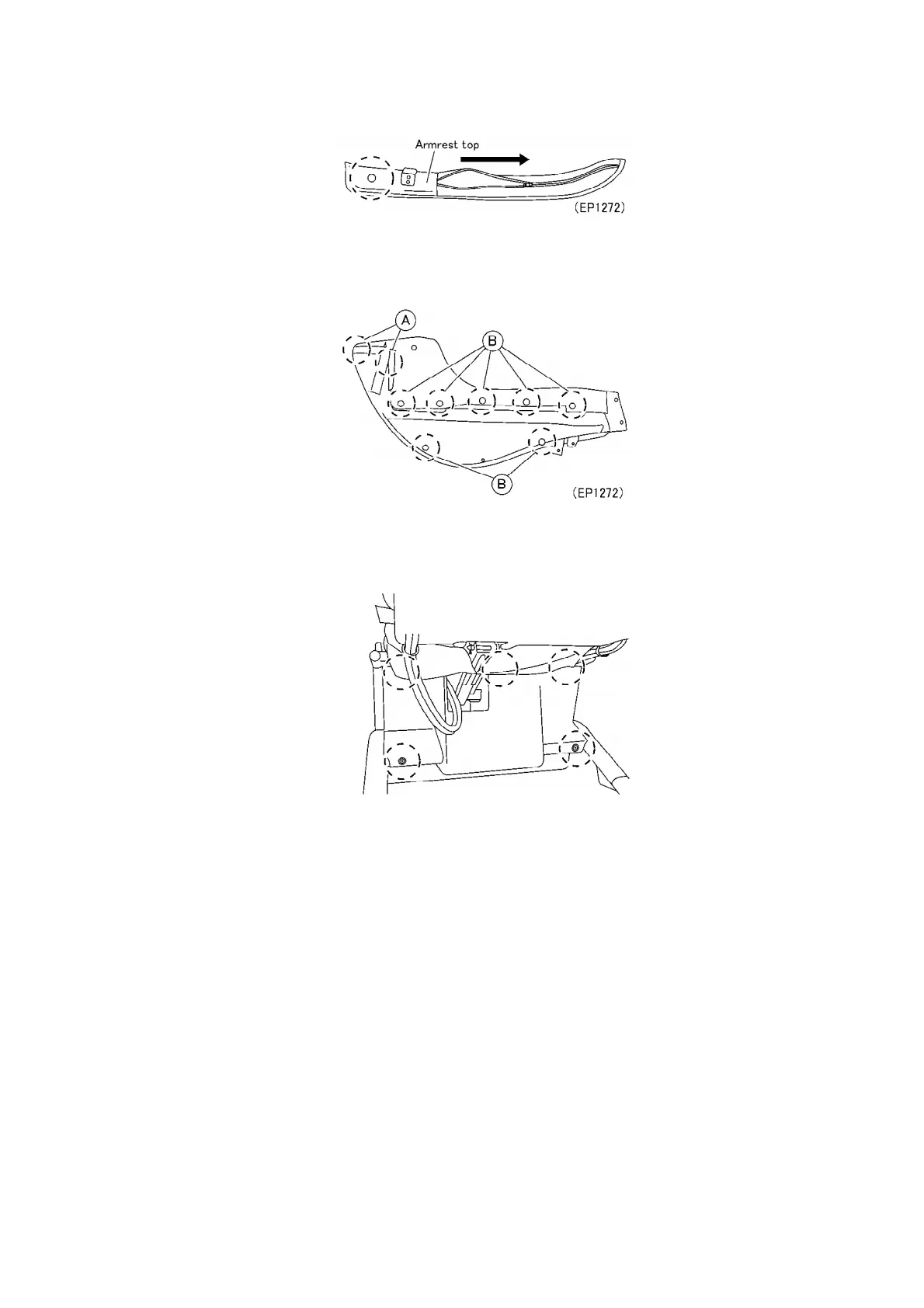

8. Peel off the Velcro tapes (A) and remove seven Brushclips (B).
9. Unscrew five Push-turn rivets and remove the Under cover.
10. Pull out the Zipper end and the cut the Insulated tie and unzip
the Zippers.
Unscrew five Push-turn rivets (A) and unhook the Hook (B).
14
