Projection relationships
The dimensional relationship between the screen and the projector is shown below.
■

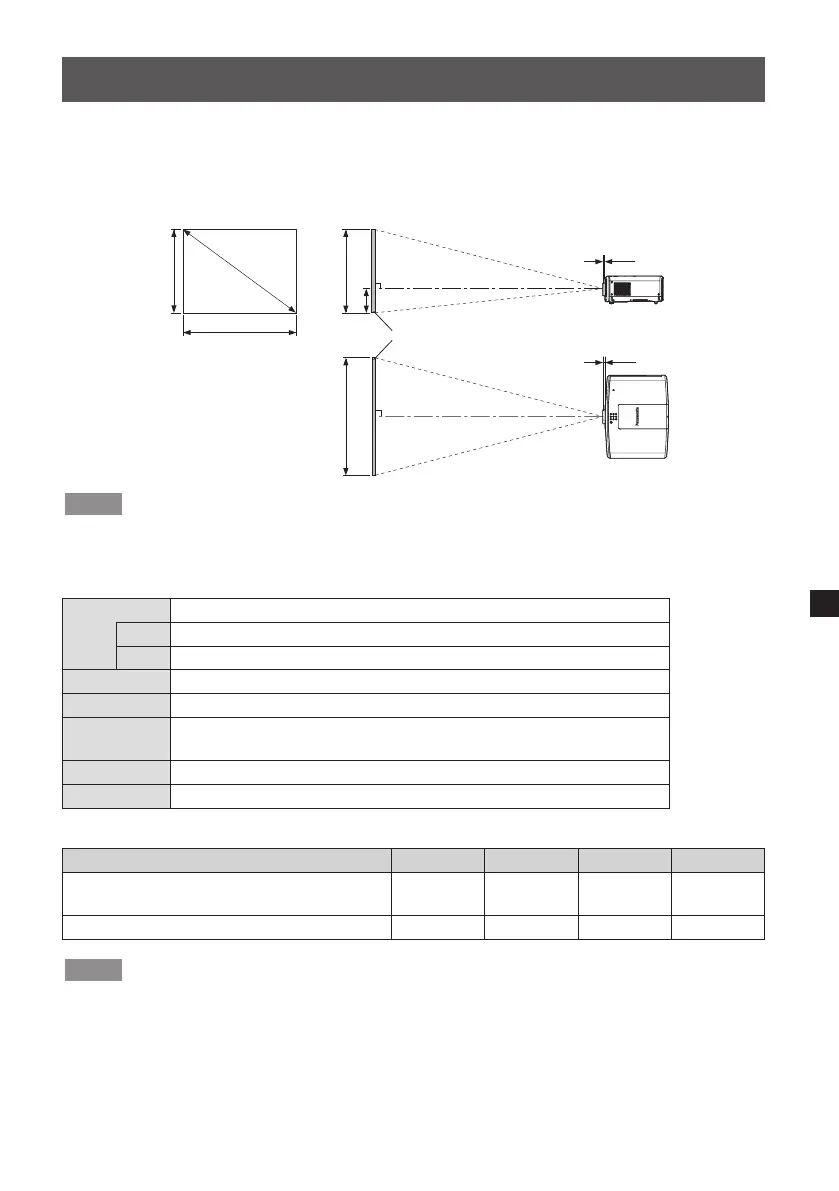

Dimensional relationship diagram
L (LW/LT)
L (LW/LT)
SW SH
H
SH
SW
SD
L1
L1
Screen
Projected image
Note
z
This diagram assumes that the size and position of the projected image will be adjusted so
that the image fills the entire screen.
z
This illustration is not drawn to scale.
L Projection distance
LW Minimum distance
LT Maximum distance
L1 Lens protrusion dimension
SH Image height
H Distance from the lens center to the lower edge of the
projected image
SW Image width
SD Projected image size
z
L1 dimensions (approximate values) (Unit: m)
Projector model ET-ELW21 ET-ELW20 ET-ELT22 ET-ELT23
PT-MZ770 / PT-MW730 / PT-MZ670 /
PT-MW630 / PT-MZ570 / PT-MW530
0.005 0.035 0.036 0.032
PT-EZ770 / PT-EW730 / PT-EX800 0.050 0.080 0.081 0.080
Note
z
The illustrations of projectors in this manual are for informational purposes only and do not
represent a specific projector model. Configurations may vary with the model.
