Basic Instructions
2 − 10
Outline Inverts the operation result up to this instruction.
2

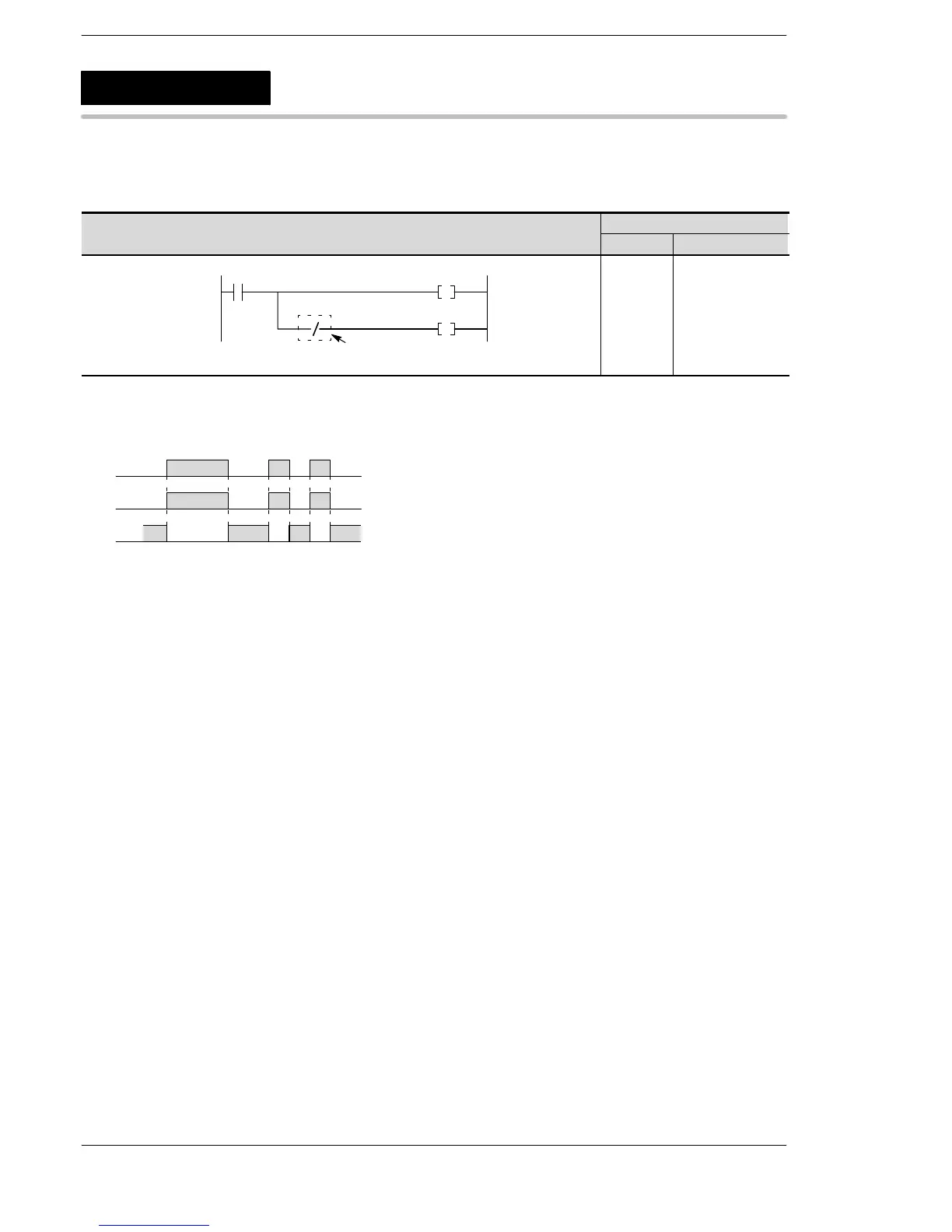

Program example
Ladder
Diagram
Boolean
Ladder Diagram
Address Instruction
0
X0 Y10
Y11
Not
0
1
2
3
ST X 0
OT Y 10
/
OT Y 11
Explanation of example
Y10 goes on and Y11 goes off when X0 turns on.
Y10 goes off and Y11 goes on when X0 turns off.
X0
Y10
Y11
on
off
on
off
on
off
Description
The / instruction inverts the operation result up to this instruction.
/
Not
