Panasonic FP-E - Page 125

Basic Instructions
2 − 15

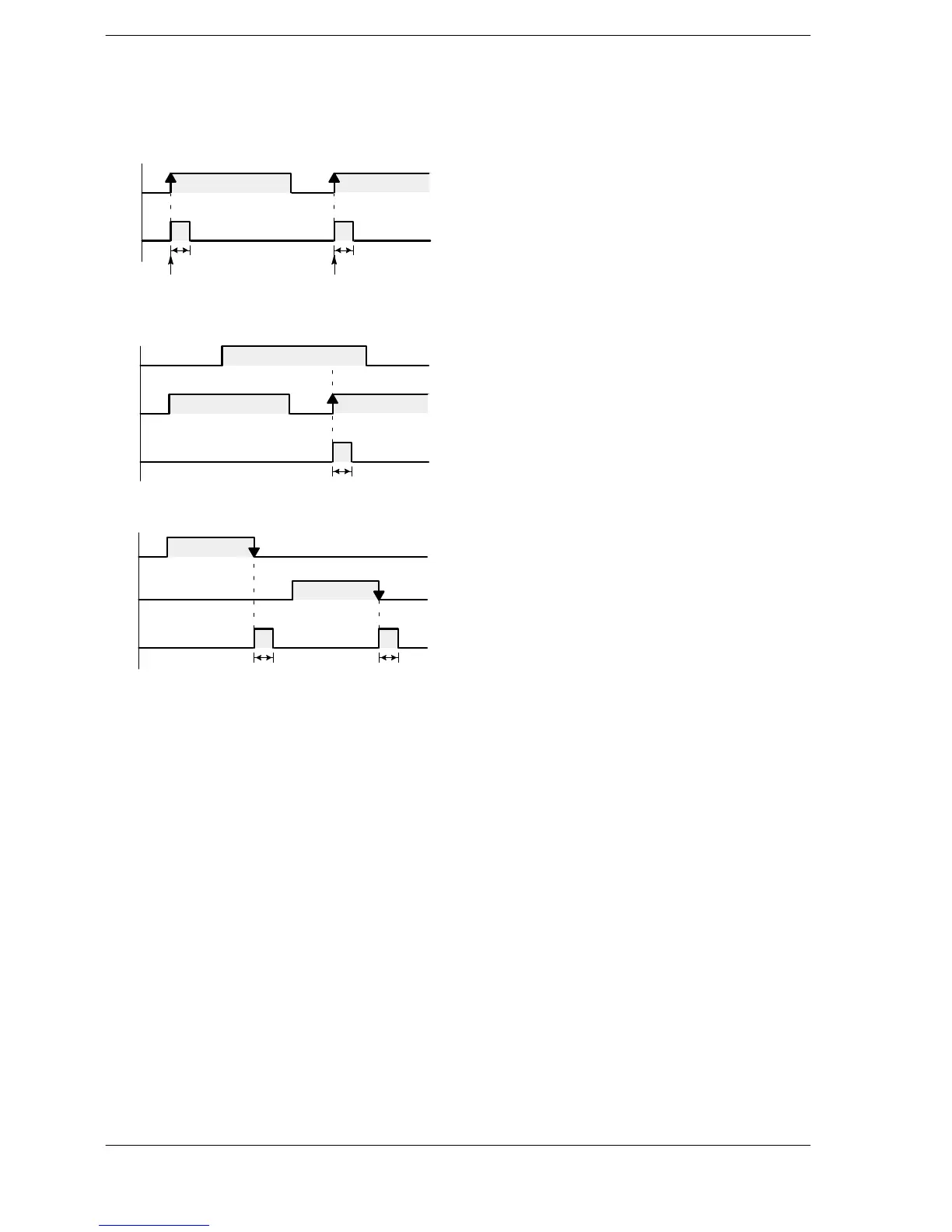

Explanation of example
ST↑,AN↑ and OR↑ instructions
Output to Y10 takes place for one scan only following a change in X0 from off to on.
X0
Y10
Leading edge
One scan One scan
Leading edge
on
off
on
off
Output to Y11 takes place for one scan only following a change in X2 from off to on when X1 is on.
X2
Y11
One scan
on
off
on
off
X1
on
off
Output to Y12 takes place for one scan only following a change in X3 or X4 from on to off.
X4
Y12
One scan One scan
on
off
on
off
X3
on
off
