High−level Instructions
3 − 57

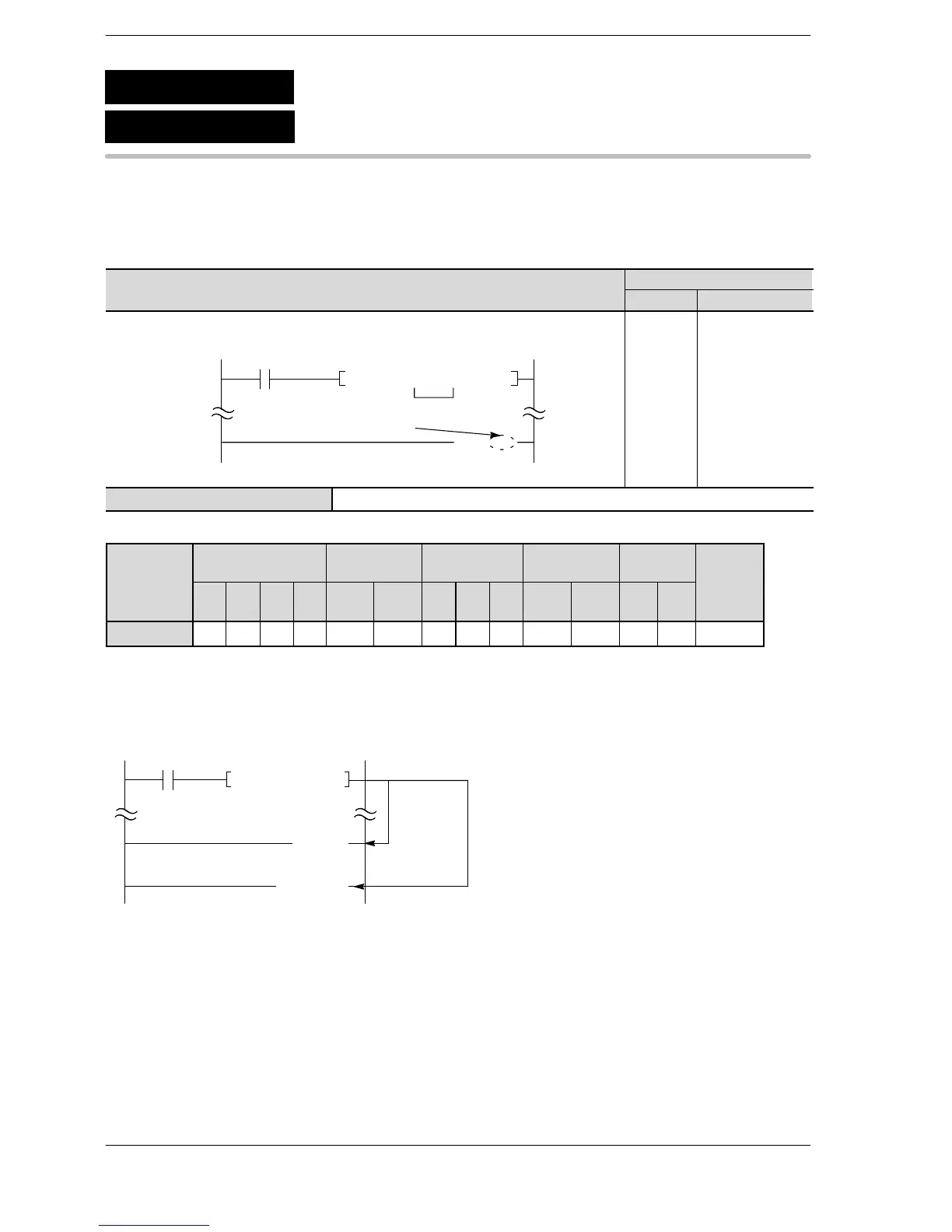

Outline Skips to the LBL instruction with the same number as the data area
specified by the F19 (SJP) instruction.
20
Program example
Ladder
Diagram
Boolean
Ladder Diagram
Address Instruction
(LBL 20 )
R0
10
Label number
F19 SJP, DT 0
S
10
11
ST R 0
F19 (SJP)
DT 0
S 16-bit area for storing the label number [0 to 255 (256 points)]
Operands
Operand
Relay Timer/Counter Register
Index
register
Constant
Inde
x
Operand
WX WY WR WL SV EV DT LD FL
IX
(*1)
IY
(*2)
K H
Index
modifier
S A A A A A A A A A N/A N/A N/A N/A N/A
(*1) With the FP2, FP2SH, and FP10SH, this is I0 to IC.
(*2) With the FP2, FP2SH, and FP10SH, this is ID.
Explanation of example
Skips to the label number with the same number as the value in data register DT0 when trigger R0 turns on.
(LBL 1 )
R0
F19 SJP, DT 0
When
DT0 = K1
(LBL 125 )
When
DT0 = K125
Program
Program
When DT0 is K1, the program skips from F19 (SJP) to LBL1.
When DT0 is K125, the program skips from F19 (SJP) to LBL125.
F19
LBL
Auxiliary jump
(SJP)
Label
A: Available
N/A: Not Available
