Outline Adds two 16-bit data items and stores the result in the specified area.
For the FP0R/FPΣ/FP−X/FP0/FP−e, the P type high−level instruction
“P22 (P+)” is not available.

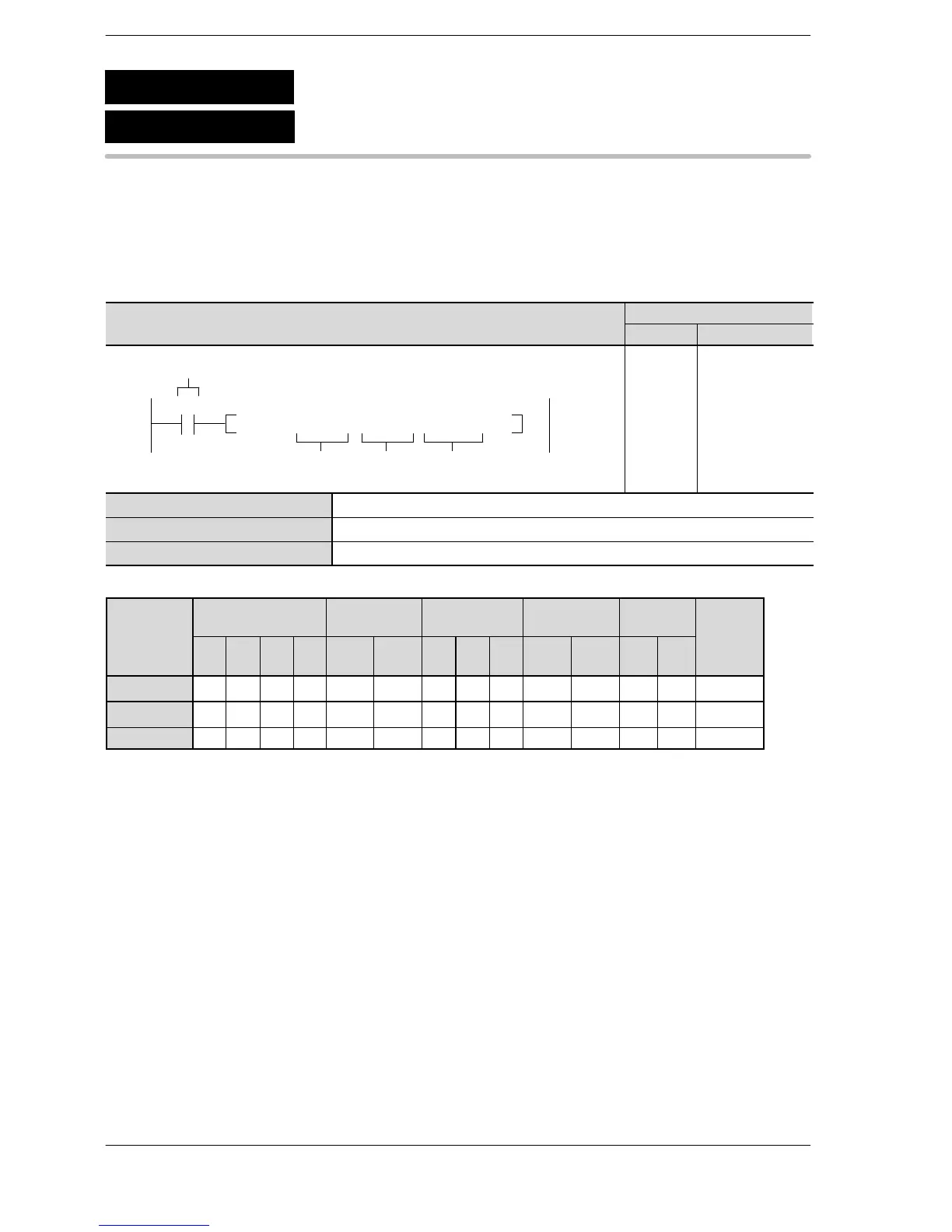

Program example
Boolean
Ladder Diagram
Address Instruction
10 F22+, DT 10 , DT 20 , DT 30
S1
D
Trigger
S2
R0
10
11
ST R 0
F22 (+)
DT 10
DT 20
DT 30
S1 16-bit equivalent constant or 16-bit area (for augend)
S2 16-bit equivalent constant or 16-bit area (for addend)
D 16-bit area (for result)
Operands
modifier
S1 A A A A A A A A A A A A A A
S2 A A A A A A A A A A A A A A
D N/A A A A A A A A A A A N/A N/A A
(*1) This cannot be used with the FP0 and FP−e.
(*2) This cannot be used with the FP0, FP−e, FP0R, FPΣ, FP−X.
(*3) With the FP0R, FPΣ,FP−X, FP2, FP2SH, and FP10SH, this is I0 to IC.
(*4) With the FP0R, FPΣ,FP−X, FP2, FP2SH, and FP10SH, this is ID.
F22
P22
16-bit data addition
[S1 + S2 → D]
(+)
(P+)
