1.3 Explanation of Memory Areas
1-59

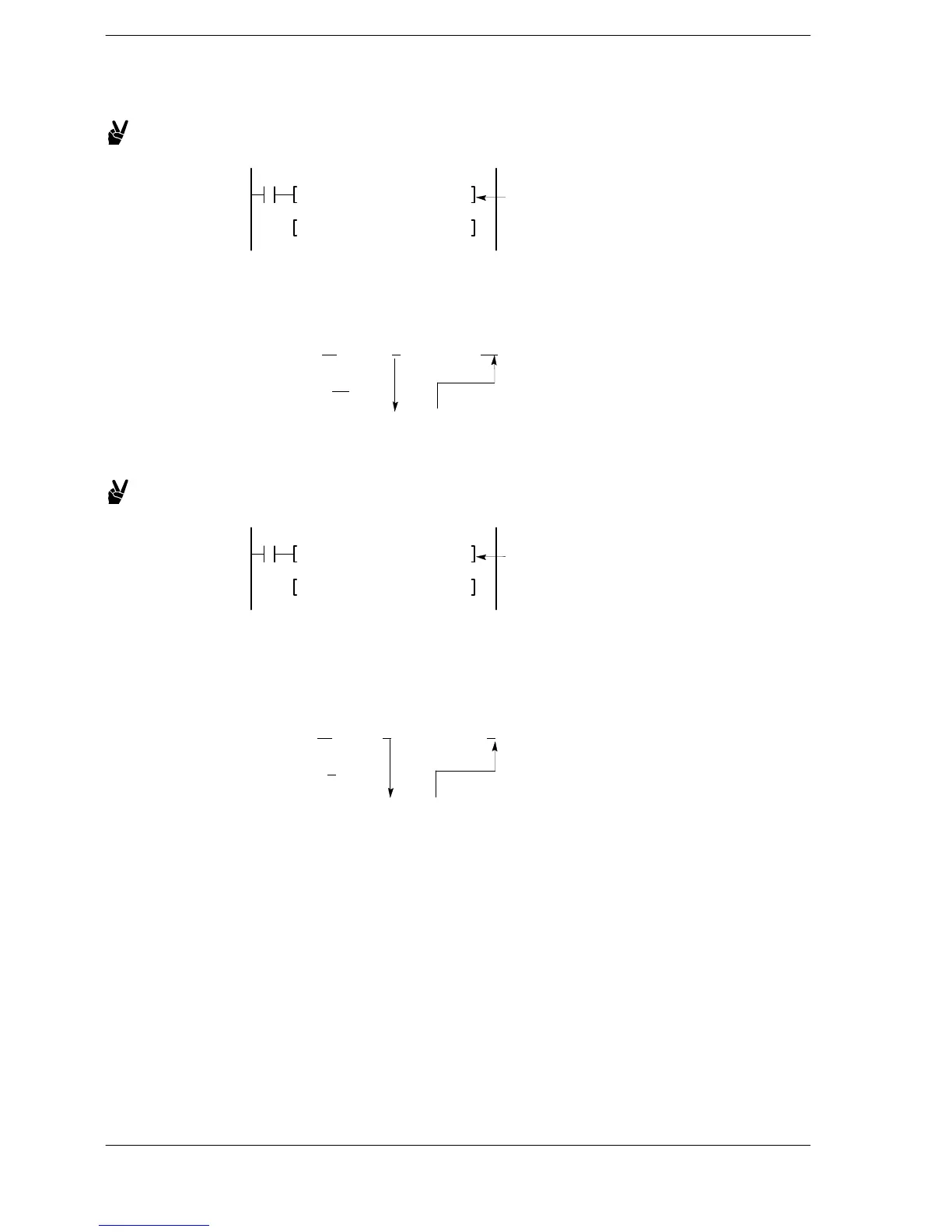

Index modification method
Example 1: Modifying a destination address
F0 MV, DT 0, IX
X0
F0 MV, K100, IXWR0
IX setting
The value of DT0 determines the WR address where K100 is
written.
When the DT0 value is K10, K100 is written to WR10.
IX WR0 → WR10
↓
K10
↓
10 + 0 = 10
Example 2: Modifying a source address
F0 MV, DT 1, IX
X0
F0 MV, IXWR0, DT 0
IX setting
The value of DT1 determines the WR address for transferring a
value to DT0.
When the DT1 value is K9, the value in WR9 is transferred to
DT0.
IX WR0 → WR9
↓
K9
↓
9+0=9
