Installation and Wiring
FPΣ User's Manual
88

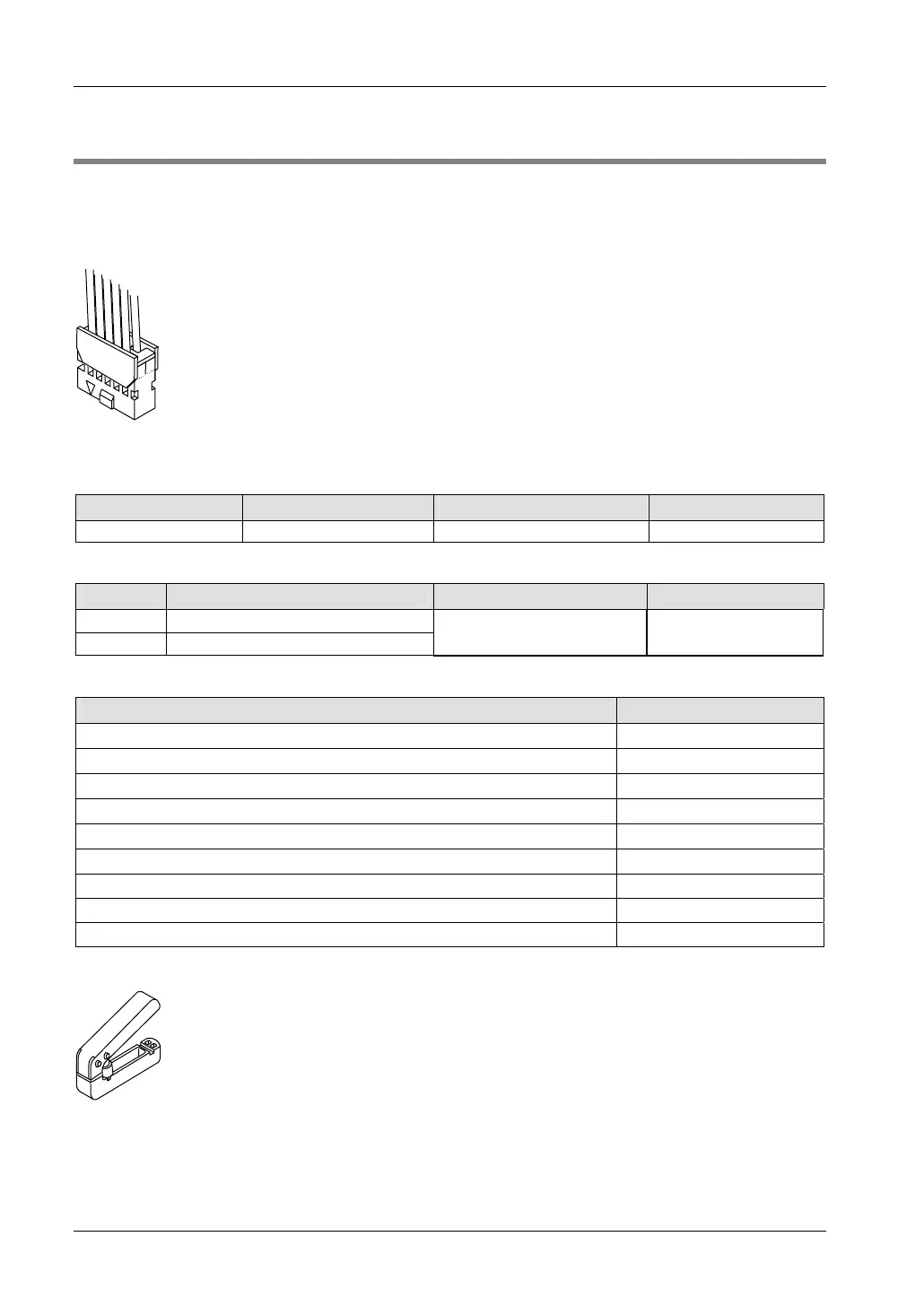

6.5 Wiring the MIL Connector
The following 10-pin MIL wire-press socket is supplied with the transistor output type FPΣ
CPU and with FPΣ I/O expansion units. Use the wires indicated below. Also use a pressure
connection tool for connecting the wires.
This connector can be ordered as an accessory.
Ordering information
Product no. Product name Type Packaging
AFP0807 FP0 MIL wire-press socket 10-pin type 2 pcs.
Suitable wire
Size Cross-sectional area [mm
2
] Insulation thickness [mm] Rated current
AWG22 0.3
AWG24 0.2
Ø 1.5–1.1mm 3A
Optional cables
Description Product no.
I/O cable with 10-pin MIL connector, (2pcs: 1 × 10 blue, 1 × 10 white wires), 1m
AFP0521D
I/O cable with 10-pin MIL connector, (2pcs: 1 × 10 blue, 1 × 10 white wires), 3m
AFP0523D
I/O cable with 10-pin MIL connector, (2pcs: 2 × 10 blue wires), 1m
AFP0521BLUED
I/O cable with 10-pin MIL connector, (2pcs: 2 × 10 blue wires), 3m
AFP0523BLUED
I/O cable with 10-pin MIL connector, (2pcs: 2 × 10 colored wires), 1m
AFP0521COLD
I/O cable with 10-pin MIL connector, (2pcs: 2 × 10 colored wires), 3m
AFP0523COLD
I/O cable with 40-pin MIL connector, blue wires, 1m AYT58403BLUED
I/O cable with 40-pin MIL connector, blue wires, 3m AYT58406BLUED
I/O cable with 40-pin MIL connector, colored wires according to DIN 47100, 3m AYT58406COLD
Pressure connection tool AXY52000
