Panasonic FV-10VEC2 - WIRING METHOD and Safety; Wiring Method Safety Guidelines; Model-Specific Wiring

5

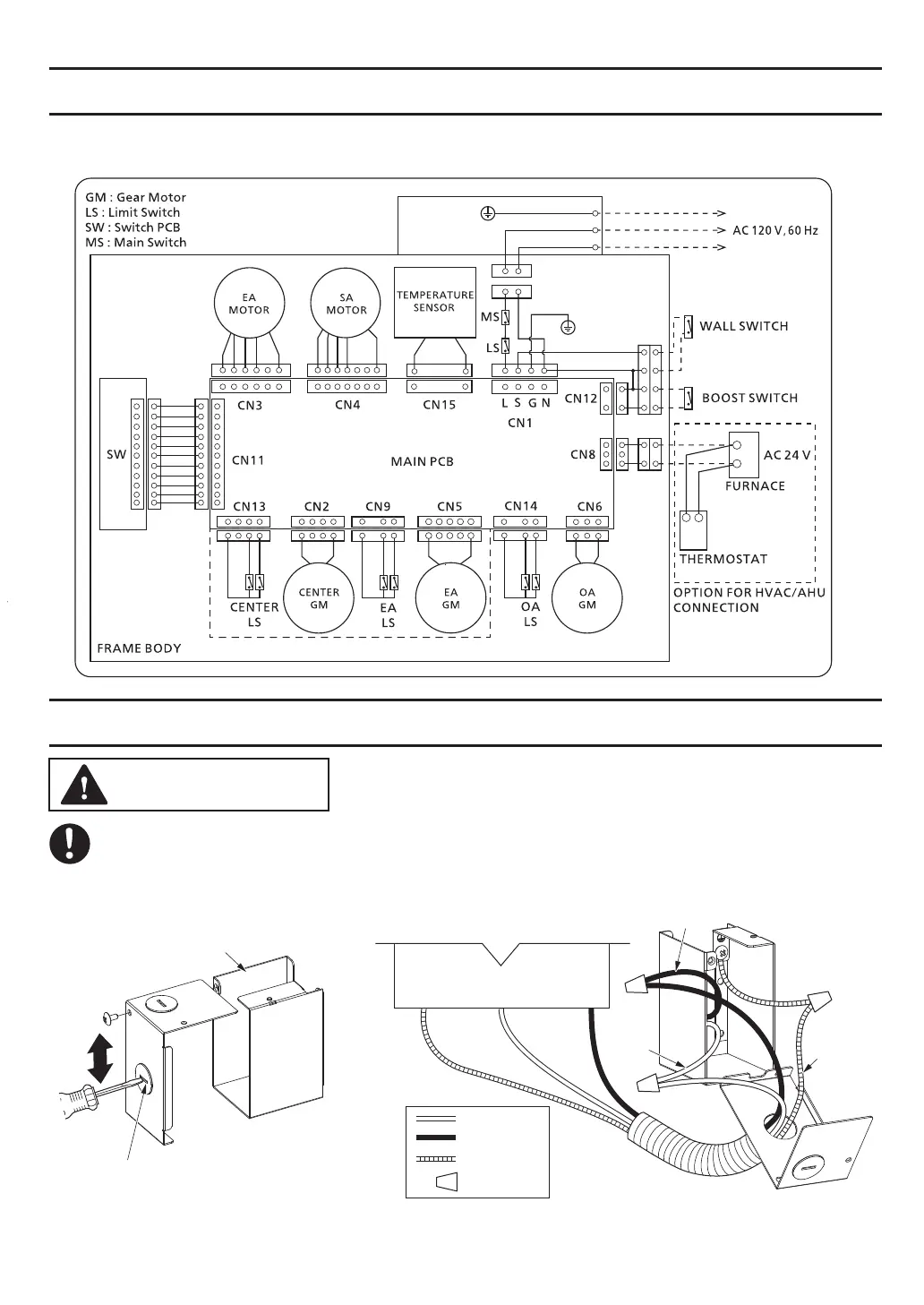

WIRING DIAGRAM
WIRING METHOD
Open knock out hole
Junction box
For FV-10VEC2H, FV-10VE2H
Earth
ground
AC 120 60Hz (Power supply)
Neutral
Neutral
Earth
ground
Live
Live
WHITE
BLACK
GREEN
Wire Nuts
FV-10VEC2H/FV-10VE2H
OnlyFV-10VEC2H
R
JUNCTION BOX
GREEN
WHITE
BLACK
GROUND
NEUTRAL
LIVE
R G
G
Installation work and electrical wiring must be performed by qualified person(s) in
accordance with all applicable codes and standards, including fire-rated construction.
WARNING
