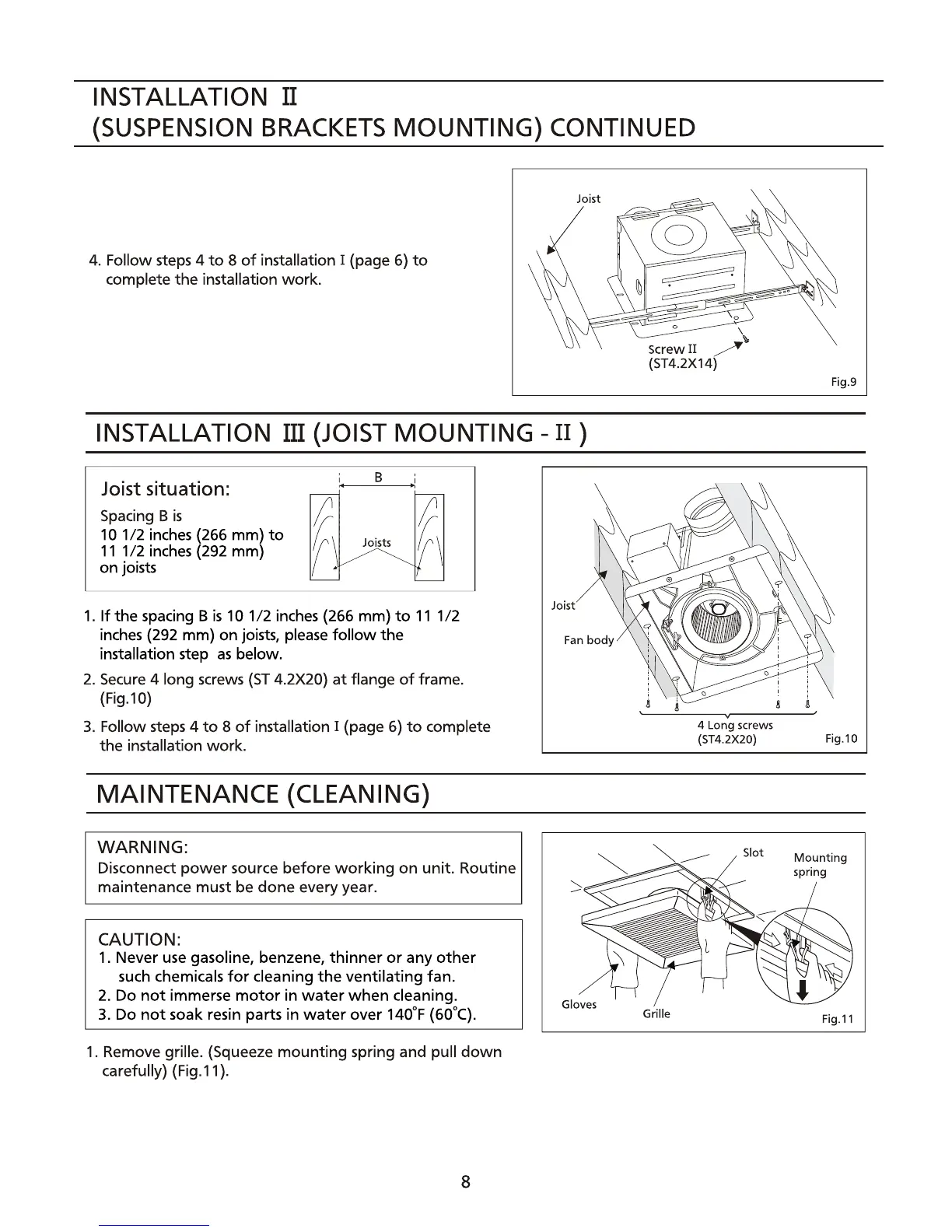

INSTALLATION II
(SUSPENSION BRACKETS MOUNTING) CONTINUED
4. Follow steps 4 to 8 of installation I (page 6) to
complete the installation work.
INSTALLATION m (JOIST MOUNTING- II)
Joist situation:
Spacing B is
10 1n inches (266 mm) to
11 1n inches (292 mm)
on joists
1.
If the spacing B is 10 1/2 inches (266 mm) to 11 1/2
inches (292 mm) on joists, please follow the
installation step as below.
2. Secure 4 long screws (ST 4.2X20) at flange of frame.
(Fig.10)
3. Follow steps 4 to 8 of installation I (page 6) to complete
the installation work.
MAINTENANCE (CLEANING)
WARNING:
Disconnect power source before working on unit. Routine
maintenance
must be done every year.
CAUTION:
1. Never use gasoline, benzene, thinner or any other
such chemicals for cleaning the ventilating fan.
2. Do
not immerse motor in water when cleaning.
3. Do
not soak resin parts in water over 140°F (60° C).
1. Remove grille. (Squeeze mounting spring and pull down
carefully) (Fig.11 ).
8
4 Long screws
(ST4.2X20)
Fig.9
Fig.10
