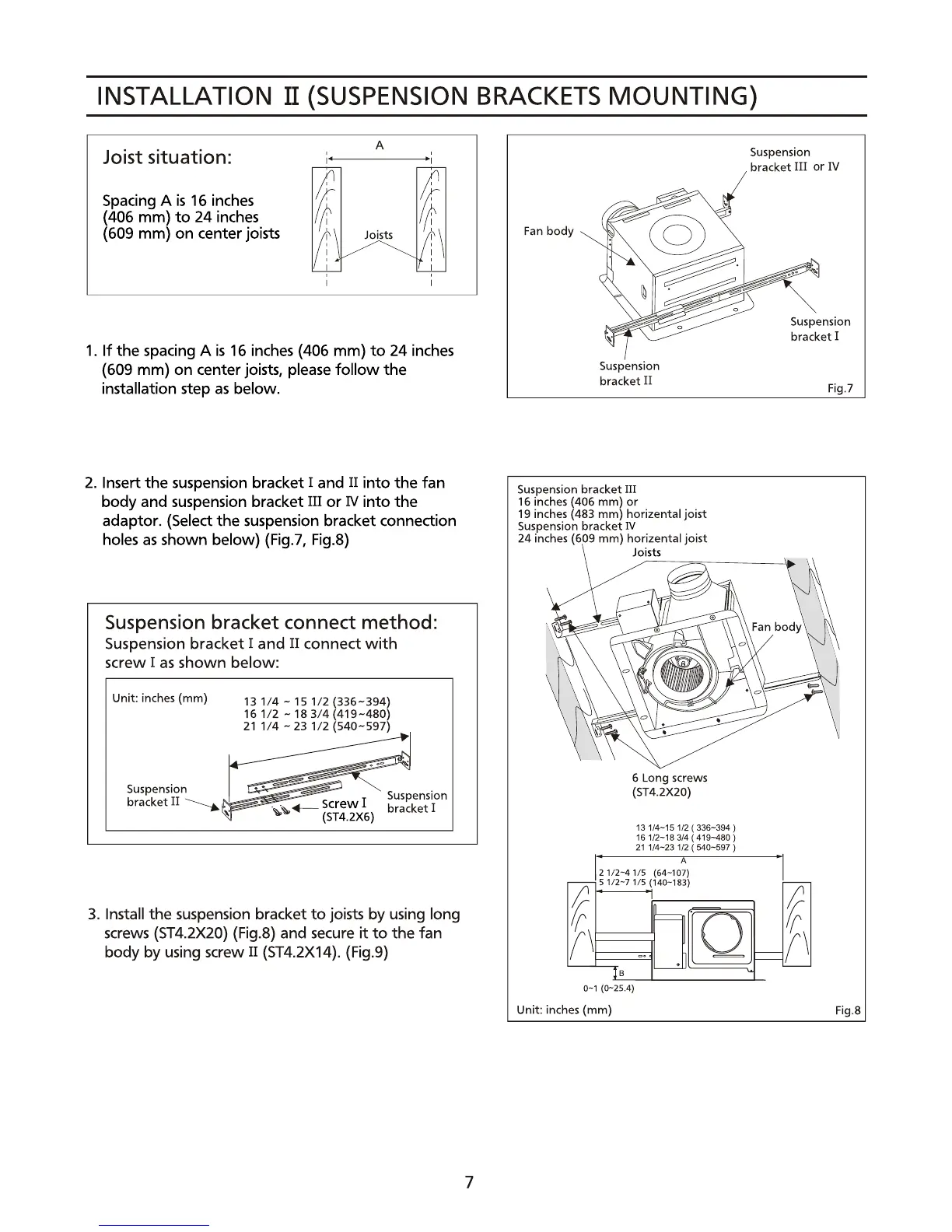

INSTALLATION II (SUSPENSION BRACKETS MOUNTING)
Joist situation:
Spacing A is 16 inches
(406 mm)
to 24 inches
(609 mm)
on center joists
A
1. If the spacing A is 16 inches {406 mm) to 24 inches
(609 mm)
on center joists, please follow the
installation step as below.
2. Insert
the suspension bracket I and II into the fan
body and suspension bracket m or N into the
adaptor. (Select the suspension bracket connection
holes
as shown below) (Fig.7, Fig.8)
Suspension bracket connect method:
Suspension bracket I and II connect with
screw I as shown below:
Unit: inches (mm}
Suspension
131/4 -15112 (336-394)
16 112 - 18 3/4 (419-480)
21 114 - 23 112 (540-597)
bracket II ---._ ~~""
~
3. Install the suspension bracket to joists by using long
screws (ST4.2X20) (Fig.8)
and secure it to the fan
body by using screw n (ST4.2X14). (Fig.9)
7
Fan body
Suspension
bracket
Il
Suspension bracket III
16 inches (406 mm) or
19 inches (483 mm) horizental joist
Suspension bracket
N
24 1nches (609 mm) horizental joist
B
Joists
6 Long screws
(ST4.2X20)
13 114-15 112 ( 33&-3114)
16 112-18 314 ( 419-4110)
21 114-23
112 ( 540-597)
0-1 (Q-25.4)
Unit: inches (mm)
Suspension
bracket m or 'N
Suspension
bracket I
Fig.7
Fig.B
